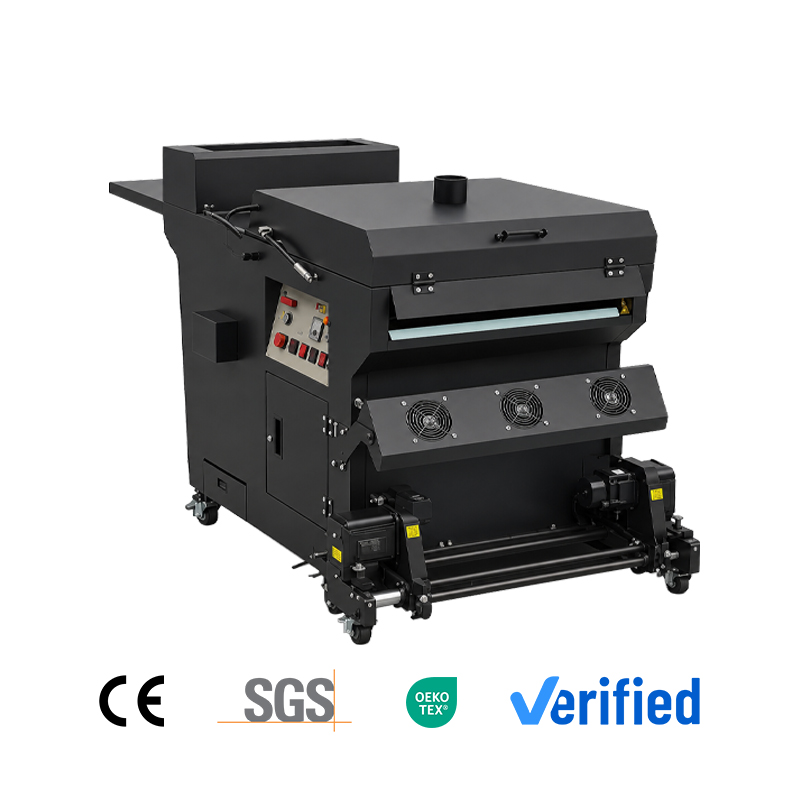

The KTM-B42 DTF powder shaker dryer matches perfectly with 2-head A2/40cm DTF printers. Offers precise temperature control, even powder distribution, and energy-efficient curing for soft transfers.
Features
1.Media width: 600mm
2.Suitable for 2-head printer
3.Integrated powder shaking and drying
Advantages
1. Drying tunnel length: 550mm.
2. 4 heating tubes.
3. Equipped with an intelligent winding system.
4. Equipped with a front guide plate heating and a single-row cold air cooling system.
Benefits
1.Evenly dried, reduce the return of water and oil, and ensure the stability of the finished product.
2. Smooth winding prevents wrinkles or damage to the printing material during the winding process.
3. Ensures effective drying; rapid cooling after drying allows the pattern to solidify quickly.

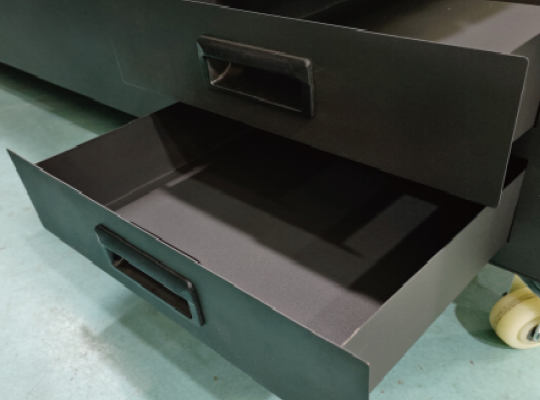

Powder recycling

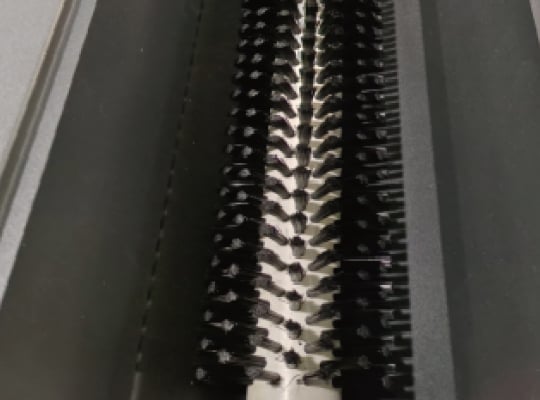

Powder control

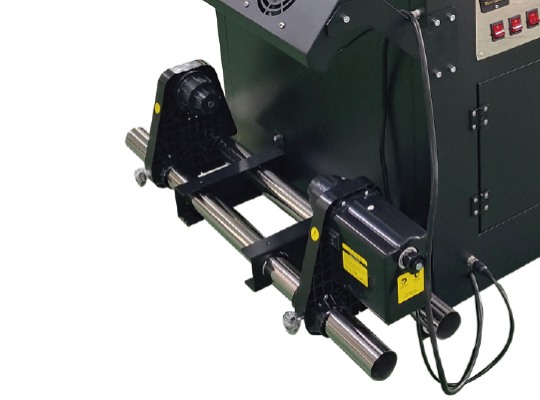

Intelligent roll winding system

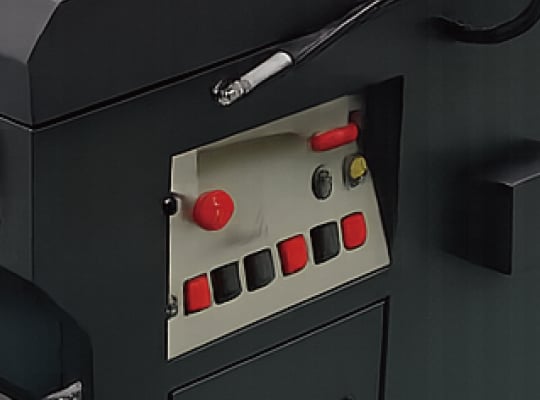

Control panel
| Model | 2-head powder shaker |
| Product name | 2-HEAD DTF POWDER SHAKER KTM-B42 |
| Machine size | 1550 × 920 × 990 mm |
| Pre-heater length | 400 mm |
| Printing width | 600 mm |
| Drying length | 550 mm |
| Working condition | 10-40℃ |
| Power supply parameter | 110 V ±10%; 220 V ±10%; 50/60 Hz |
| Power | 1800 W |
| Heating elements | 4 ruby heat pipes |
| Paper delivery system | Intelligent delivery system |
| Packing size | 1350 × 950 × 1190 mm |
| Weight | 120 kg |
Step1 Design
Step 2 Print the pattern on film

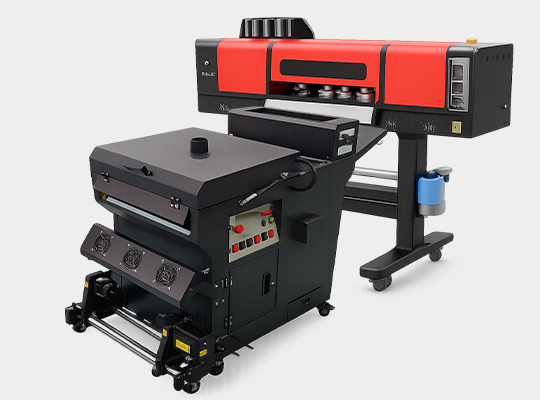

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It has an approximately 400 mm preheating section and a 550 mm drying section, with four ruby heating tubes.
A: Yes. The intelligent media feeding and take-up system helps reduce wrinkles and media damage.
A: Front guide-plate heating assists drying, while a single-row cooling fan system rapidly cools the film after drying and helps set the printed design.
A: The catalog lists a power rating of 1800 W and support for 110 V ±10% or 220 V ±10%, 50/60 Hz.
A: The machine measures approximately 1550 × 920 × 990 mm and weighs approximately 120 kg.
