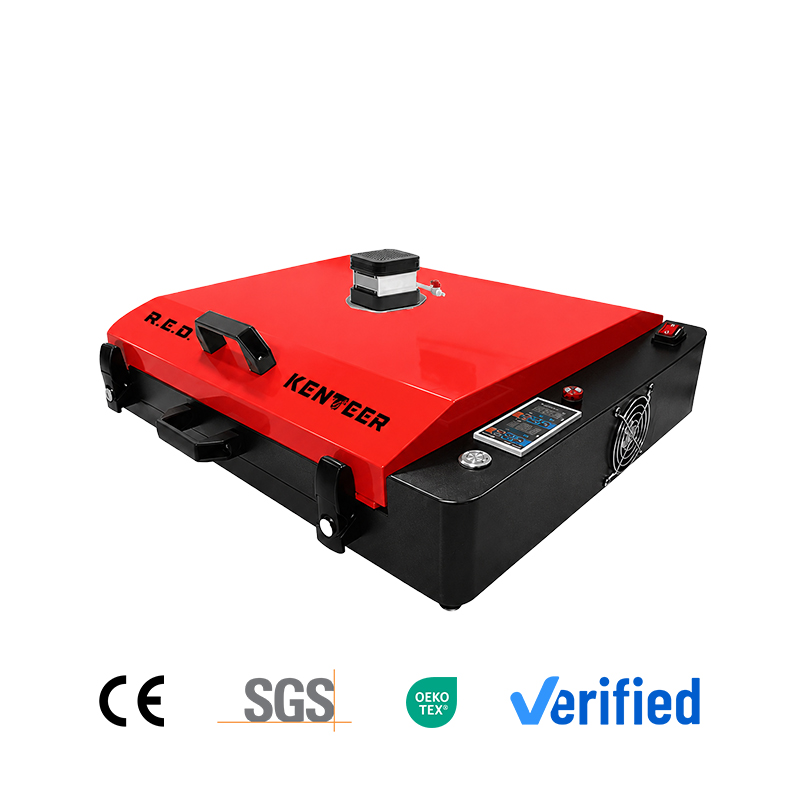

Cure TPU powder quickly and evenly with our standard DTF oven. Features precise digital temperature control, uniform heating element, and compact footprint for A3/A4 film sheets.
Features
1.Media width: 300x430mm(KTM-0280), 600x430mm(KTM-0380)
2. Optional small filter
Advantages
1. The structure is more scientific and the product temperature control is more accurate.
2. Automatic timing, counter, buzzer alarm.
3. Equipped with anti-sticking net and aluminum alloy heating.
Benefits
1. Rapid heating, can achieve full-width drying and curing without dead corners.
2. Easy to operate, data visualization, drying completion reminder.
3. Breathable and anti-adhesion, uniform temperature.
| Model | KTM-0280/KTM-0380 |
| Product name | STANDARD DTF OVEN |
| Medium width | Maximum size: 300 × 430 mm (KTM-0280); Maximum size: 600 × 430 mm (KTM-0380) |
| Electrical parameters | KTM-0280: Rated voltage: 220 V, Rated current: 4.3 A, Rated power: 950 W / KTM-0380: Rated voltage: 220 V, Rated current: 7.3 A, Rated power: 1600 W |
| Control | Temperature settings |
| Size and weight | KTM-0280: Machine: 529 × 547 × 175 mm, Packaging: 785 × 610 × 220 mm, N.W 13.4kg, G.W 17.5kg / KTM-0380: Machine: 820 × 538 × 175 mm, Packaging: 1076 × 600 × 220 mm, N.W 22kg, G.W 24kg |
A: It uses an anti-stick mesh and an aluminum-alloy heating structure.
A: The rated voltage is 220 V, the rated current is 4.3 A, and the rated power is 950 W.
A: The oven measures approximately 529 × 547 × 175 mm and has a net weight of approximately 13.4 kg.
A: It is suitable for sheet-by-sheet or sectional drying and curing of 60 cm-class DTF film.
A: The oven measures approximately 820 × 538 × 175 mm and has a net weight of approximately 22 kg.
