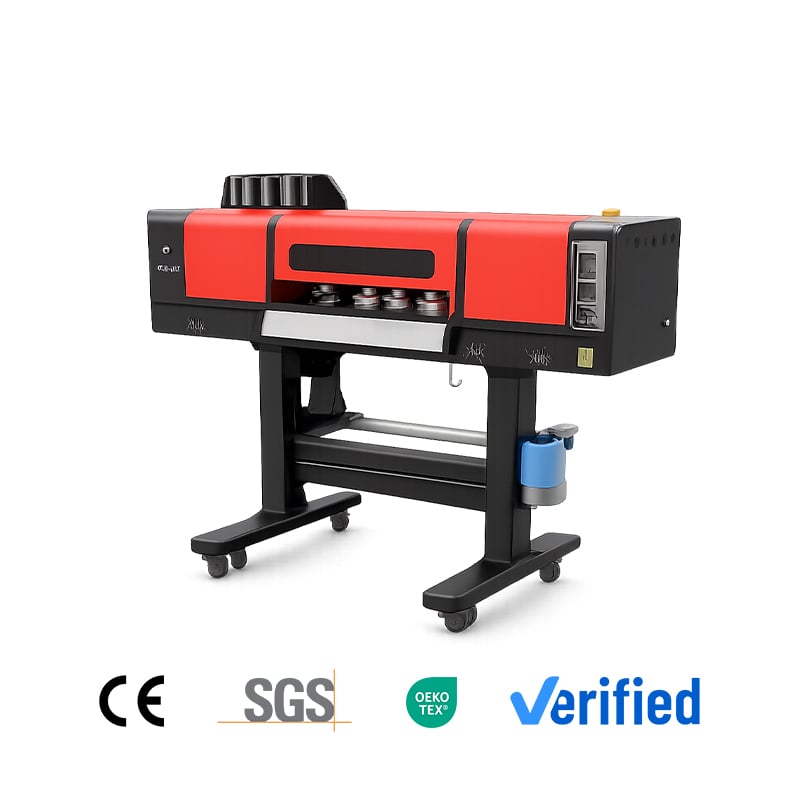

Boost output with our 60cm (24") 2-head DTF printer. Features high-speed dual printheads, white ink circulation system, and precise roll-fed printing for T-shirts, hoodies, and sportswear.
Features
1.Maximum printing width: 610mm
2.Print head: EPSON F1080*2/I3200*2
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1.The shell is mainly cold-rolled steel plate, and some parts are aluminum alloy.
2. Equipped with white ink circulation, white ink stirring, and ink stack lifting functions.
3. Equipped with a carriage anti-collision function.
4. Equipped with ink shortage alarm and paper shortage alarm functions.
Benefits
1. Ensure the stable performance of the overall frame.
2. Prevent white ink from settling and clogging the printhead, thus extending the life of the printhead.
3. Protect the printhead to prevent accidental damage.
4. Provide timely alerts to avoid invalid printing and reduce material waste.

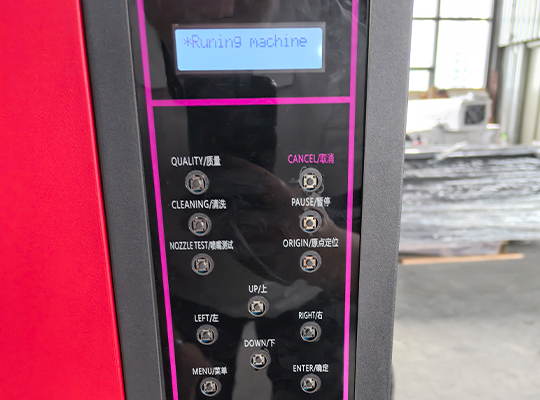

Control panel

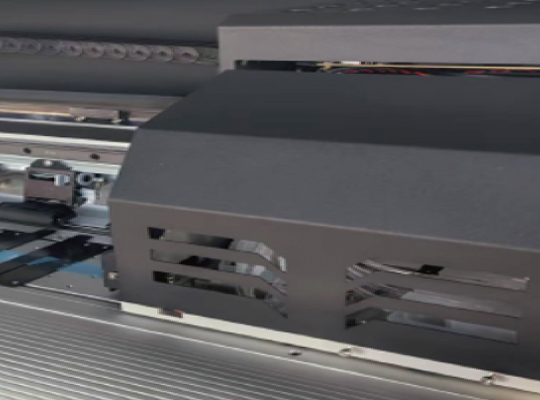

Carriage anti collision.

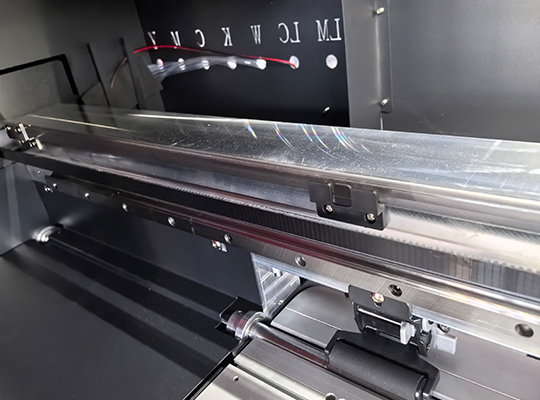

Paper press roller

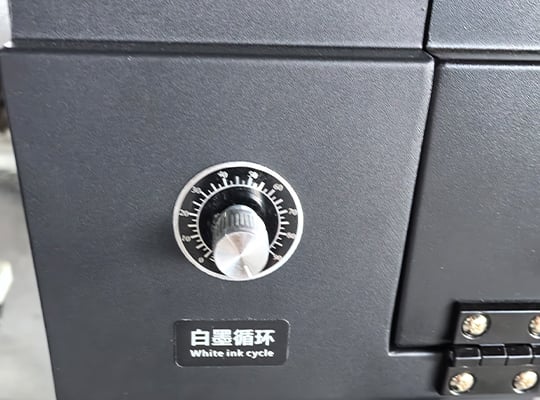

White ink circulation system

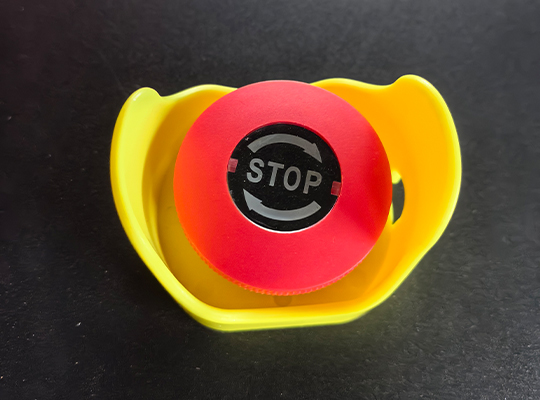

Emergency stop button

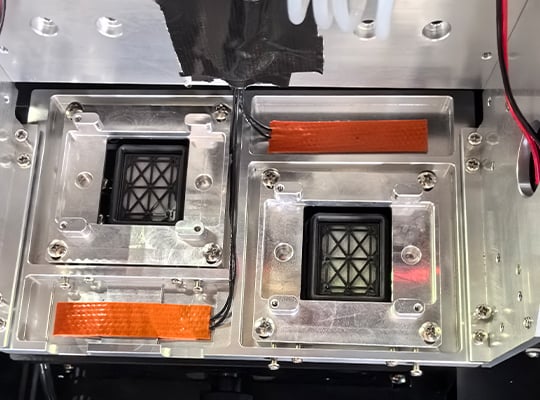

Aluminum plate lifting ink stack
| Model | KTM-A03 |
| Product name | 2-HEAD 60 cm DTF PRINTER |
| Print size | 620 mm |
| Printhead | I3200-2H(W+C) |
| Board system | Hoson/ SY(LAN) |
| Printing Speed | 4-pass 15 m²/h; 6-pass 10 m²/h; 8-pass 6 m²/h |
| Operating environment | Normal Operating Temperature: 22-28 °C Relative Humidity: 40%-60% |
| Power | AC220/110±10, 50-60 Hz 1500 W (2H) |
| Weight/Packing Size | N.W.: 200kg/G.W.: 220kg1880 × 610 × 1380 mm /2030 × 860 × 690 mm |
Step1 Design
Step 2 Print the pattern on film
Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It can be configured with two Epson F1080 or two I3200 printheads. The specification page lists a dual-I3200 color-and-white configuration.
A: The listed speeds are approximately 15 m²/h in 4 Pass, 10 m²/h in 6 Pass, and 6 m²/h in 8 Pass. Actual speed depends on the print settings.
A: It includes white ink circulation, white ink agitation, and a liftable capping station to help reduce sedimentation and clogging.
A: It features carriage anti-collision protection, a low-ink alarm, and media-out detection to reduce accidental printhead damage and wasted printing.
A: The recommended temperature is 22-28°C with 40%-60% relative humidity. It supports AC 220/110 V ±10%, 50/60 Hz.
