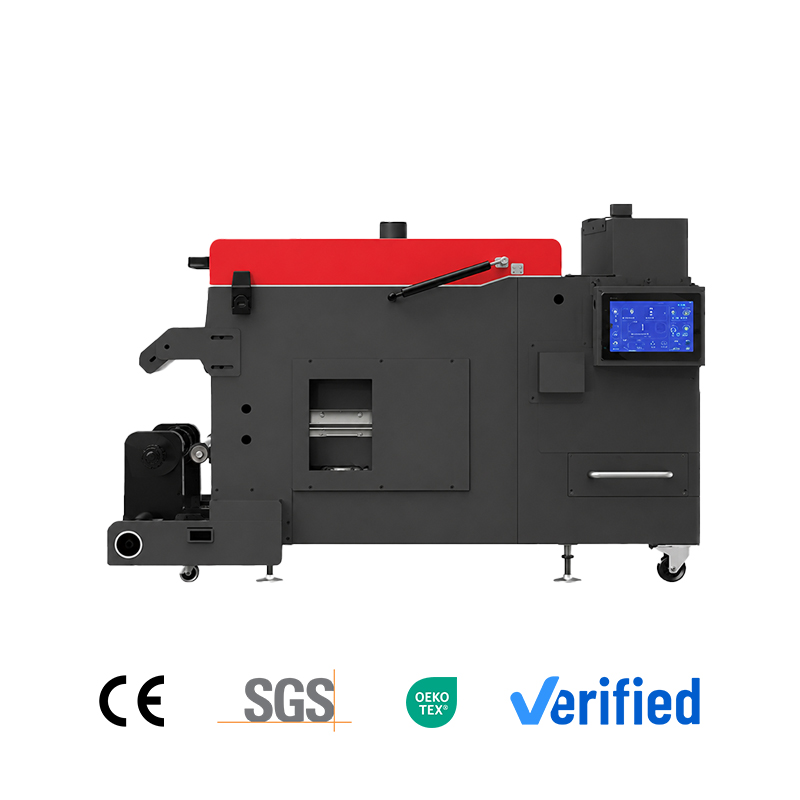

KTM-33400 A3 DTF Powder Shaker & Dryer Machine

Features

1.Media width: 380mm
2.Suitable for 2-head printer
3.Integrated powder shaking and drying
Advantages

1. Drying tunnel length: 600mm, ruby heating tube.
2. LCD operation panel.
3. Powder control, front guide plate heating, single row cold air cooling system.
4. Teflon mesh belt, automatic induction winding.
Benefits

1. Reduce water and oil reflux, heat gently, not easy to burn.
2. Display working status, easy to operate.
3. Ensure uniform powder spreading, rapid cooling after drying, and fast solidification of the pattern.
4. Prevent the material from sticking to the platform, wind up smoothly, and avoid wrinkles or damage during the winding process.

Model	KTM-33400
Product name	A3 DTF POWDER SHAKER
Working width	0-380 mm
Applicable medium	Nylon, chemical fiber, cotton cloth, leather, swimsuit, diving suit, PVC, EVA, etc
Powder application control	Powder shaking control, powder spreading control, direction and quantity control
Heating and drying function	Front guide plate heating, upper part drying and curing, single-row cooling with cold air for temperature reduction
Material conveying method	Take-up traction system
Winding function	Automatic sensing and winding
Rated current	10 A
Energy consumption	1-2.2 kW
Outer packaging	Wooden box
Rated voltage	220 V
Rated power	2.2 kW
Equipment size	1185 × 608 × 641 mm
Outer packaging specification	1150 × 700 × 700 mm
Net weight of equipment	50 kg
Gross weight	100 kg

Q: What media width does this powder shaker support?

A: It supports media from 0 to 380 mm wide and is designed to pair with a dual-printhead A3 DTF printer.
Q: Does it integrate powder application and drying?

A:Yes. It integrates powder application, powder shaking, drying, cooling, and automatic take-up.
Q: What are the features of its drying system?

A: It uses an approximately 600 mm drying tunnel and ruby heating tubes for gentler heating, helping reduce moisture and oil vapor backflow as well as the risk of scorching the media.
Q:How does it help reduce wrinkles during take-up?

A: A Teflon mesh belt and automatic sensing take-up system help feed the media smoothly and reduce sticking, wrinkles, and damage.
Q: What materials can it process?

A: A: Materials listed in the catalog include nylon, synthetic fabrics, cotton, leather, swimwear fabric, neoprene, PVC, and EVA.
Q: What are its rated power and dimensions?

A: The unit is rated at 220 V and 2.2 kW. Its dimensions are approximately 1185 × 608 × 641 mm.
