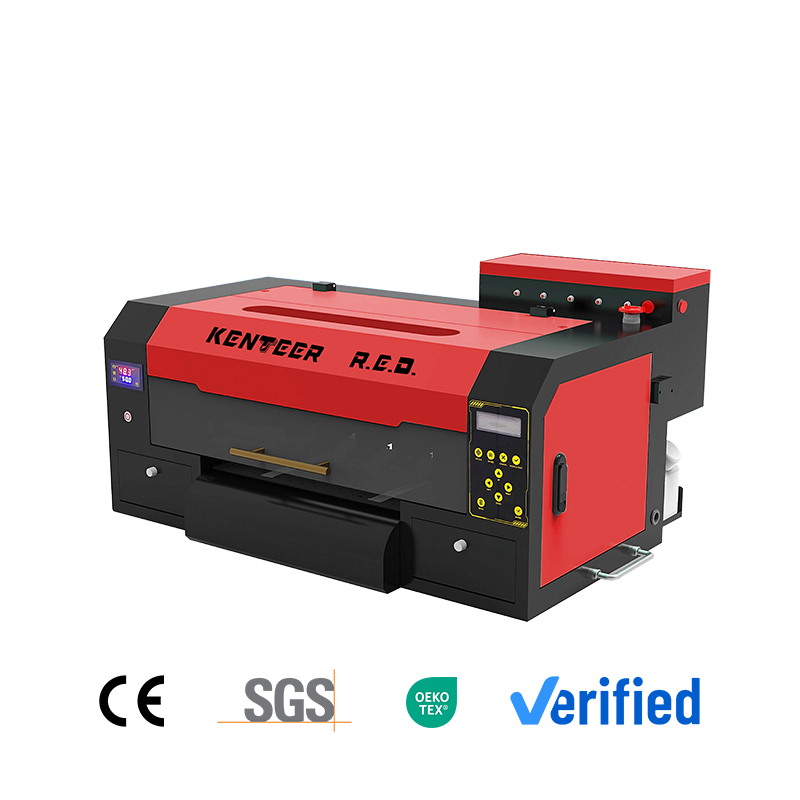

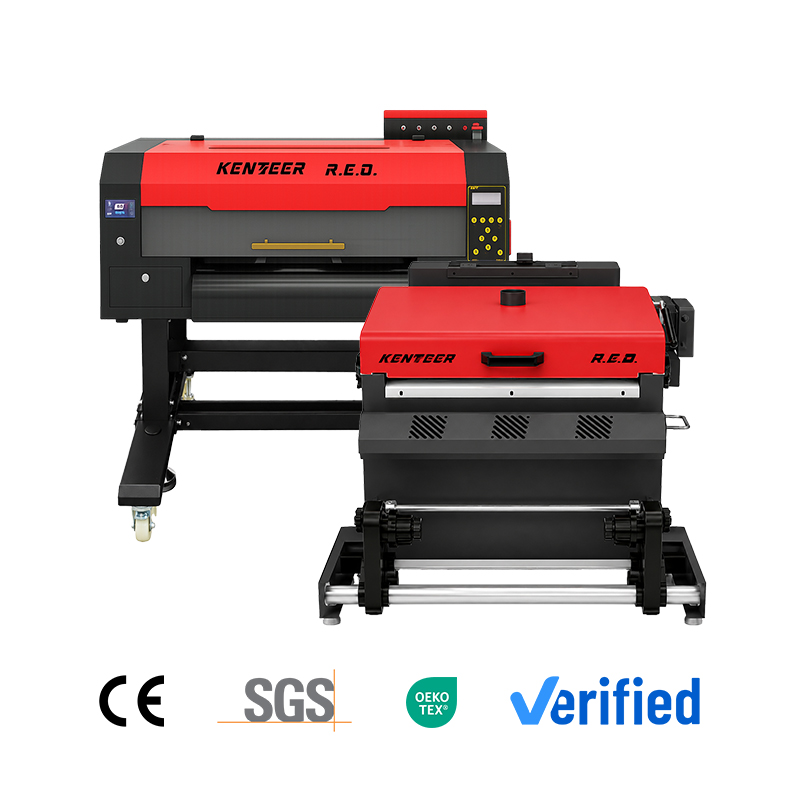

Premium DTF Printer for Sale | Your Reliable Direct to Film Printing Machine Supplier with All-in-One DTF Printer Bundle Solutions.
Features
1.Maximum printing width: 330mm
2.Print head: I1600*2
3.Board system: HOSON board
4.RIP system: RIIN
Advantages
1. The shell is made of cold-rolled steel plate, and the sheet metal is thicker.
2. Mechanical key panel, digital display.
3. Imported silent guide rail.
4. It has ink shortage alarm, white ink circulation, white ink stirring, and carriage anti-collision functions.
Benefits
1. Ensure the stable performance of the overall frame and beautiful appearance of the machine.
2. Display the working status and easy to operate.
3. Print smoothly, with high precision and reduced noise.
4. Monitor the ink volume of the printer, protect the printhead, and print more smoothly.

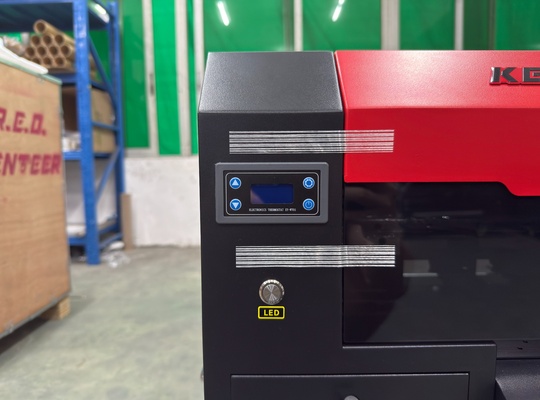

LED lamp

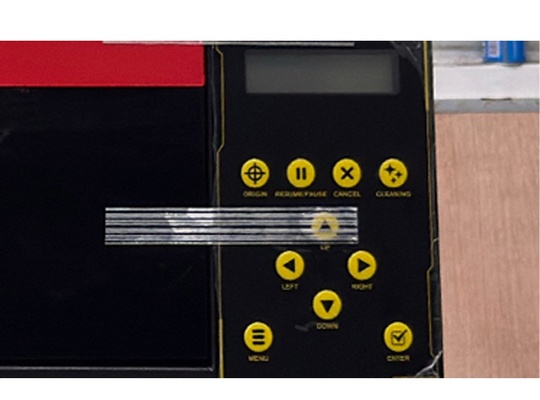

Control panel

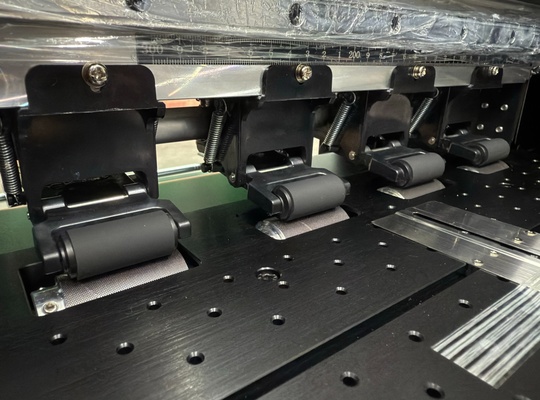

Suction type platform

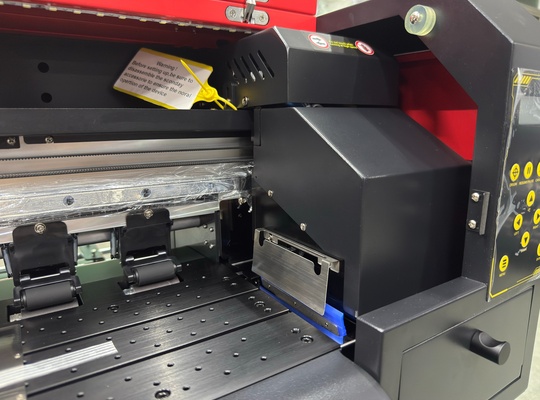

Print carriage anti collision system

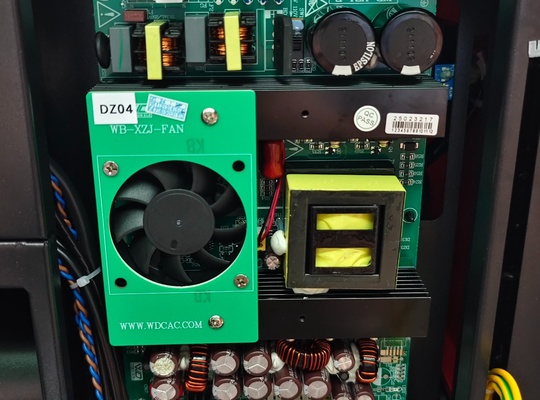

High quality power supply

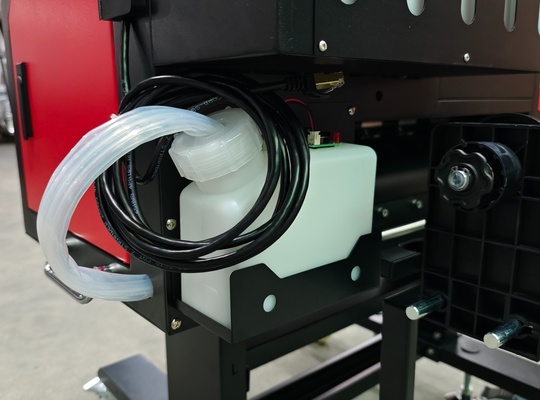

Waste ink cartridge
| Nozzle type | EPSON-i1600m | ||
| Number of printhead | EPSON-i1600*2 | ||
| Wide-format printing | <330MM | ||
| Print configuration | Color + White | ||
| Applicable medium | DTF film | ||
| Printing speed | 8pass 3m²/h,12pass 2m² /h | ||
| Ink type | Pigment ink | ||
| Printing accuracy | 1440/2160/2880DPI | ||
| RIPsoftware | RIIN | ||
| Operating system | WIN7,WIN10 | ||
| Heating and drying function | Front and rear arc plate heating,plat form suction LED lighing | ||
| Platform suction | Adjustable suction power | ||
| Print interface | Gigabit Ethernet port | ||
| Temperature and humidity | 15-30°c/35-65% | ||
| Electrical parameters | 50HZ/60HZ,220V 15A 0.5kW | ||
| Size and weight | Machine:850*637*440mm N.W.56.5 kg;Packaging:910*685*601mm G.W.76.5kg |
Step1 Design
Step 2 Print the pattern on film
Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It is equipped with two Epson I1600 printheads in a color-plus-white ink configuration.
A: It prints at approximately 3 m²/h in 8 Pass and 2 m²/h in 12 Pass, with supported resolutions of 1440, 2160, and 2880 dpi. Actual speed varies with the pass count, feathering mode, and other settings.
A: Yes. White ink circulation, white ink agitation, and a low-ink alarm help reduce sedimentation and protect the printheads.
A: It features a reinforced cold-rolled steel body, an imported silent guide rail, carriage anti-collision protection, and adjustable platform suction.
A: The recommended operating temperature is 15-30°C with 35%-65% humidity. It requires 220 V, 50/60 Hz power, with a rated power of approximately 0.5 kW.
