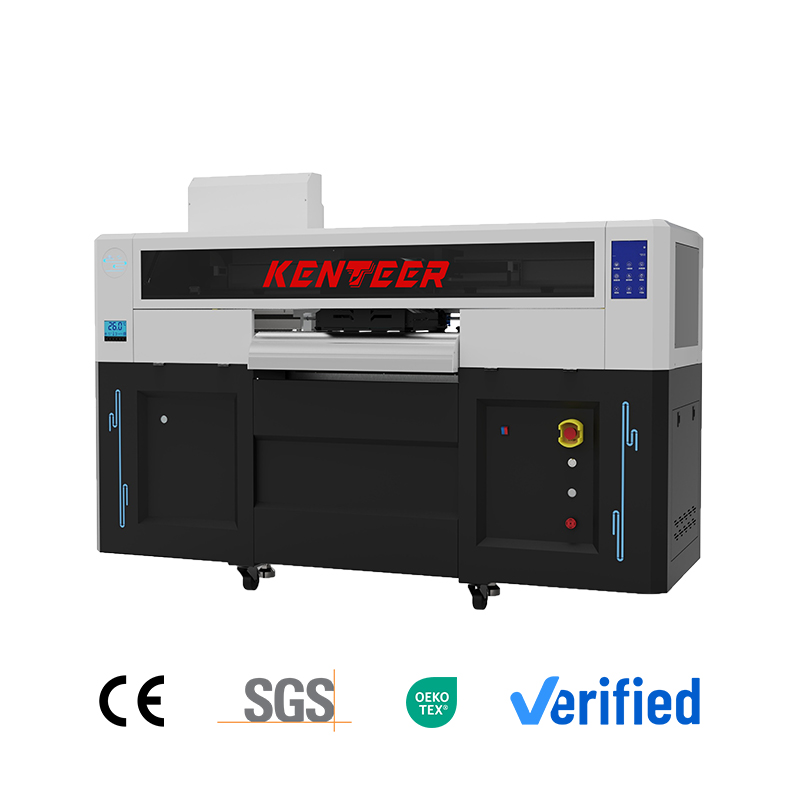

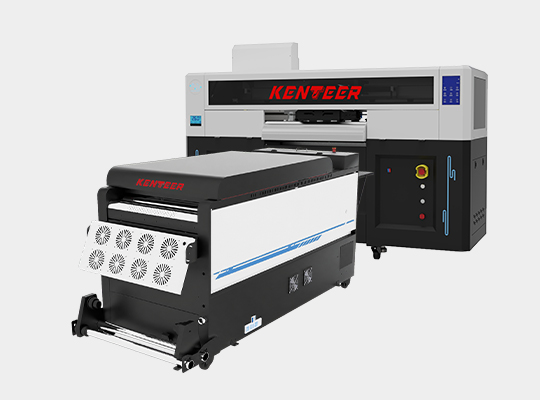

Maximize industrial throughput with our 6-head 60cm (24") DTF printer. Engineered for ultra-fast printing speeds, exceptional color density, continuous white ink supply, and 24/7 mass production.
Features
1.Maximum printing width: 620mm
2.Print head: I3200*6
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and an acrylic cover.
2. Equipped with white-ink circulation and white-ink stirring systems.
3. Fitted with silent guide rails and a carriage anti-collision function.
4. Includes low-ink alarm and out-of-paper detection.
5. Features a lifting ink stack and print-head base-plate heating.
Benefits
1. High integration, stable operation, and visualized working process.
2. Prevents white ink sedimentation and nozzle clogging, ensuring smooth operation of the ink delivery system.
3. Reduces noise during printing, protects the printheads, and prevents accidental damage.
4. Avoids ineffective printing and reduces material waste
5. Ensures smooth ink flow.

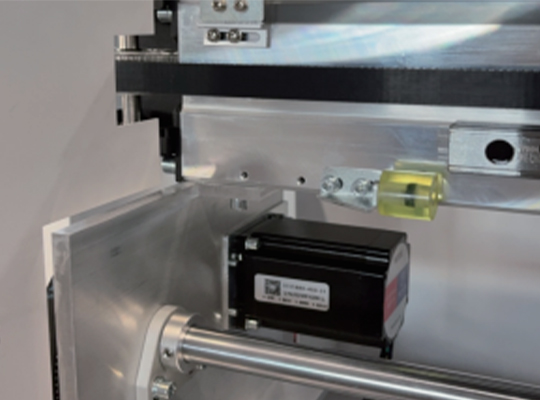

Silent-rail

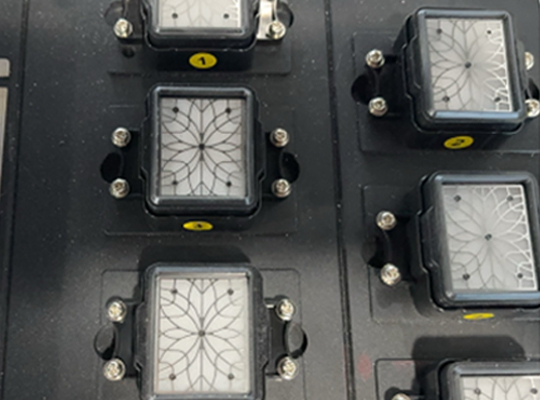

Precision Aluminum Plate Lifting Ink Stack

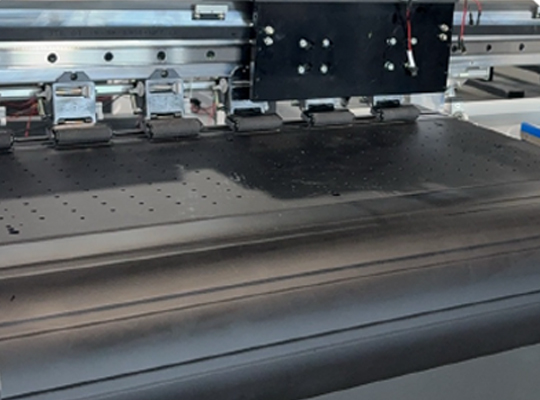

High precision Aluminum Profile

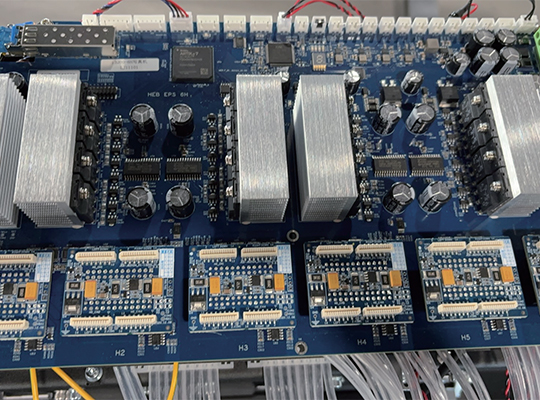

Hoson board

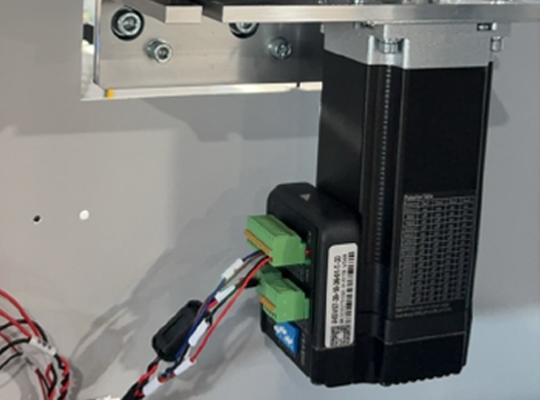

High Power Servo Motor

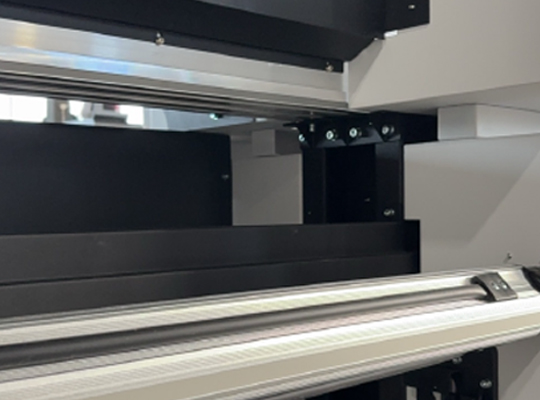

Automatic Material Winding and Unwinding System
| Model | KTM-A99-7 |
| Product name | 6-HEAD 60 cm DTF PRINTER |
| Print size | 620 mm |
| Printhead | I3200-6H(3 W+3C) /I3200-6H (2 W+2C+2 ORGB) |
| Board system | Hoson (LAN) |
| Printing speed | 4-pass 39 m²/h 6-pass 32 m²/h 8-pass 22 m²/h / 4-pass 29 m²/h 6-pass 20 m²/h 8-pass 14 m²/h |
| Operating environment | Normal Operating Temperature: 22-28 °C Relative Humidity: 40%-60% |
| Power | AC220/110±10, 50 Hz~60 Hz 2500 W |
| Weight/Packing size | N.W.: 200kg/G.W.: 220kg 1980 × 890 × 1430 mm /2100 × 1000 × 1250 mm |
Step1 Design
Step 2 Print the pattern on film
Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It uses six I3200 printheads and can be configured with three for white ink and three for color ink, or with the extended-color configuration listed in the catalog.
A: The three-white-plus-three-color configuration is listed at up to 39 m²/h in 4 Pass, 32 m²/h in 6 Pass, and 22 m²/h in 8 Pass. The other configuration is listed at 29, 20, and 14 m²/h respectively.
A: Its six-printhead configuration, stable frame, and high-speed network control board are designed for large-volume orders at a 60 cm printing width.
A: It includes white ink circulation and agitation, a silent guide rail, carriage anti-collision protection, low-ink and media-out detection, a liftable capping station, and printhead base heating.
A: Power consumption is approximately 2500 W, and the printer supports AC 220/110 V ±10%, 50/60 Hz. The recommended temperature is 22-28°C with 40%-60% humidity.
