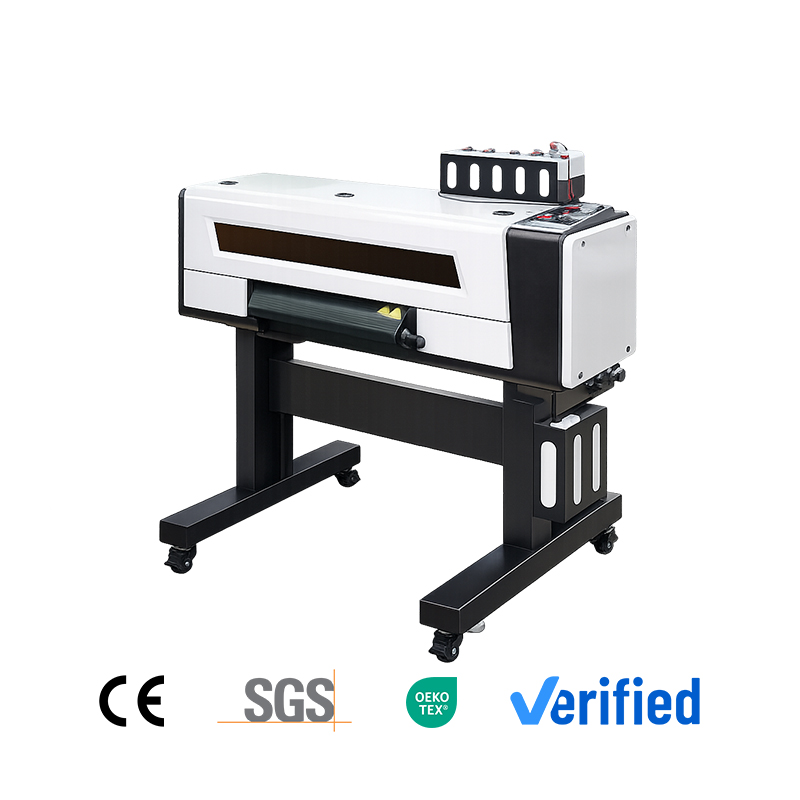

Start your apparel printing business with the A2 DTF printer. Compact footprint, easy operation, dual printheads, and low running costs. Perfect for small spaces and high-volume custom orders.
Features
1.Maximum printing width: 420mm
2.Print head: F1080*2;I1600*2
3.Board system: HOSON board
4.RIP system: Maintop/Photoprint
Advantages
1.The shell is mainly cold-rolled steel plate, and some parts are aluminum alloy.
2. Equipped with a lifting ink stack and intelligent automatic cleaning and maintenance printheads.
3. Features a white ink stirring and circulation system.
Benefits
1. Compact structure, small footprint, and convenient transportation.
2. Easier printhead cleaning and routine maintenance, making it more worry-free to use.
3. Prevents white ink sedimentation and clogging of the printhead, extending printhead life.

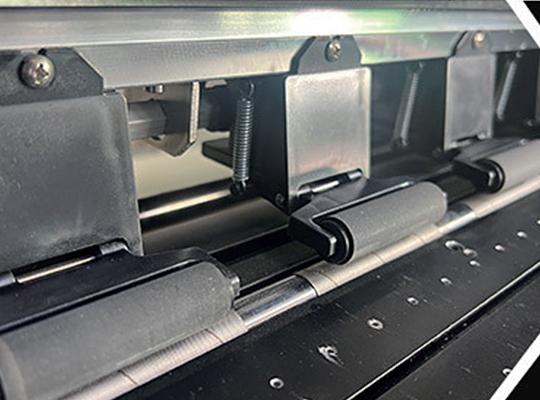

Paper press roller

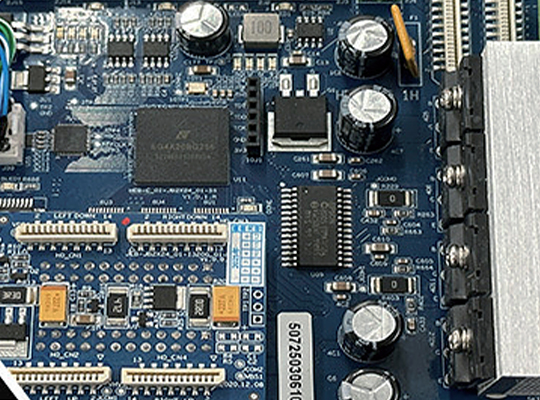

Hoson bord

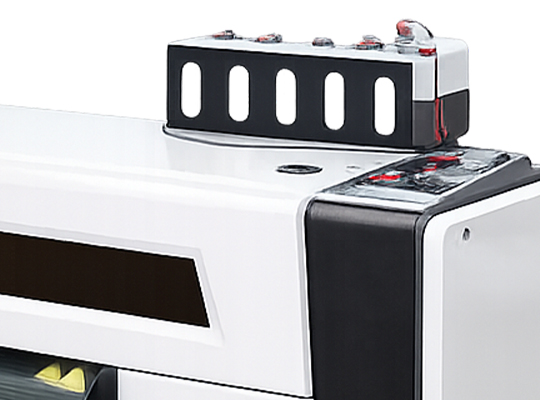

Control panel

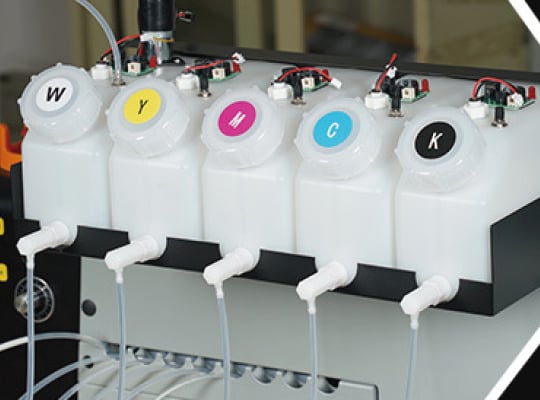

High capacity ink tank
| Model | KTM-A16-2 45 cm DTF Printer |
| Product name | 2-HEAD A2 DTF PRINTER |
| Printhead and quantity | F1080 2 pcs / I1600 2 pcs |
| Printing resolution | F1080: 1440 DPI / I1600: 2400 DPI |
| Printing speed | F1080: 6-pass 4 m²/h 8-pass 3 m²/h / I1600: 6-pass 5.8 m²/h 8-pass 4 m²/h 12-pass 3 m²/h |
| Printing width | 420 mm |
| Printing medium | PET film |
| Ink | Pigment Capacity: 350 mL |
| Color | CMYK+White |
| RIP software | PhotoPRINT |
| Operating system | Windows 7 and above |
| Image format | TIFF, JPEG, EPS, PDF |
| Operating environment | The temperature is 25 °C-30 °C, and the humidity is 50%-75% |
| Power | 50/60 Hz/220 V, power 700 W, current 3.5 A |
| Interface | Gigabit network card |
Step1 Design
Step 2 Print the pattern on film

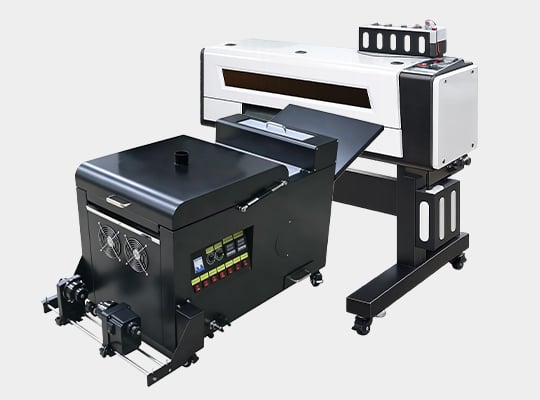

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It can be configured with two F1080 printheads or two I1600 printheads.
A: With F1080 printheads, speed is approximately 4 m²/h in 6 Pass and 3 m²/h in 8 Pass. With I1600 printheads, speed is approximately 5.8 m²/h in 6 Pass, 4 m²/h in 8 Pass, and 3 m²/h in 12 Pass.
A: The white ink agitation and circulation system helps reduce white ink sedimentation and printhead clogging.
A: Yes. A liftable capping station and intelligent automatic cleaning system simplify printhead cleaning and routine maintenance
A: The recommended temperature is 25-30°C with 50%-75% humidity. It requires 220 V, 50/60 Hz power and consumes approximately 700 W.
