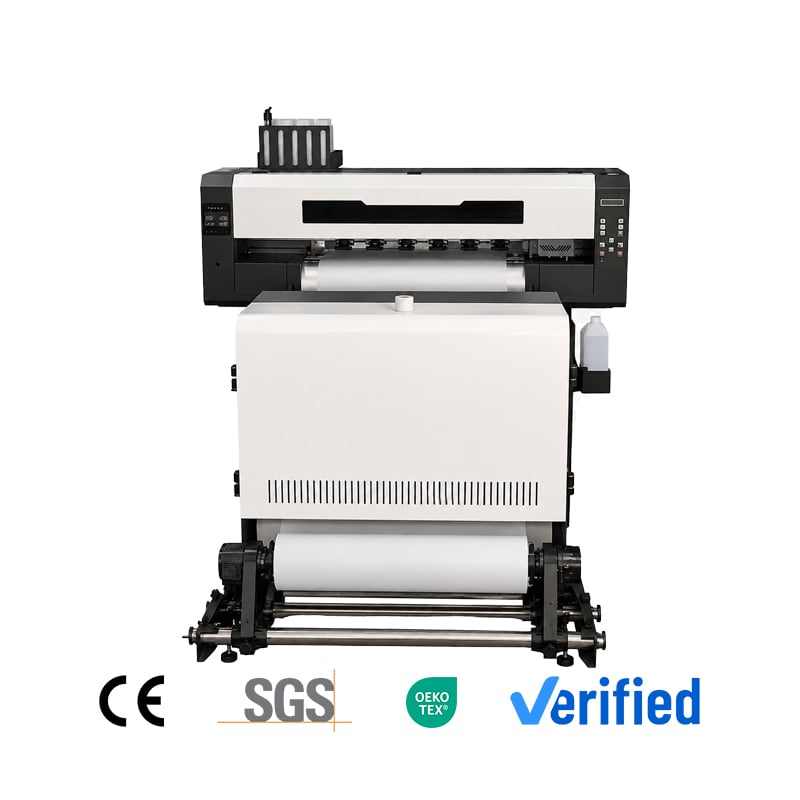

Boost efficiency with an integrated 60cm dual-head DTF printer. Seamless roll-to-roll printing, powdering, and drying in a single machine for vibrant custom T-shirt production.
Features
1.Media width: 600mm
2.Print head: I3200*2/I1600*2/F1080*2
3.Board system: HOSON board
4.RIP system: Maintop
Advantages
1.The shell is mainly cold-rolled steel plate, and some parts are aluminum alloy.
2.Integrated design for printing, powder shaking, and drying.
3.Features white ink circulation and white ink mixing functions.
4.Waste powder recycling technology, avoiding waste and saving costs.
Benefits
1.The shell structure ensures the stable performance of the whole frame.
2.Good stability, small footprint, high cost performance.
3.Prevent white ink from settling and clogging the printhead, extend the life of the printhead，and ensure the smooth operation of the ink system.
4.Printing + dusting + drying, all in one go; simple and efficient.
5.The powder shaking machine adopts automatic induction winding function, which saves time and labor.
Control panel

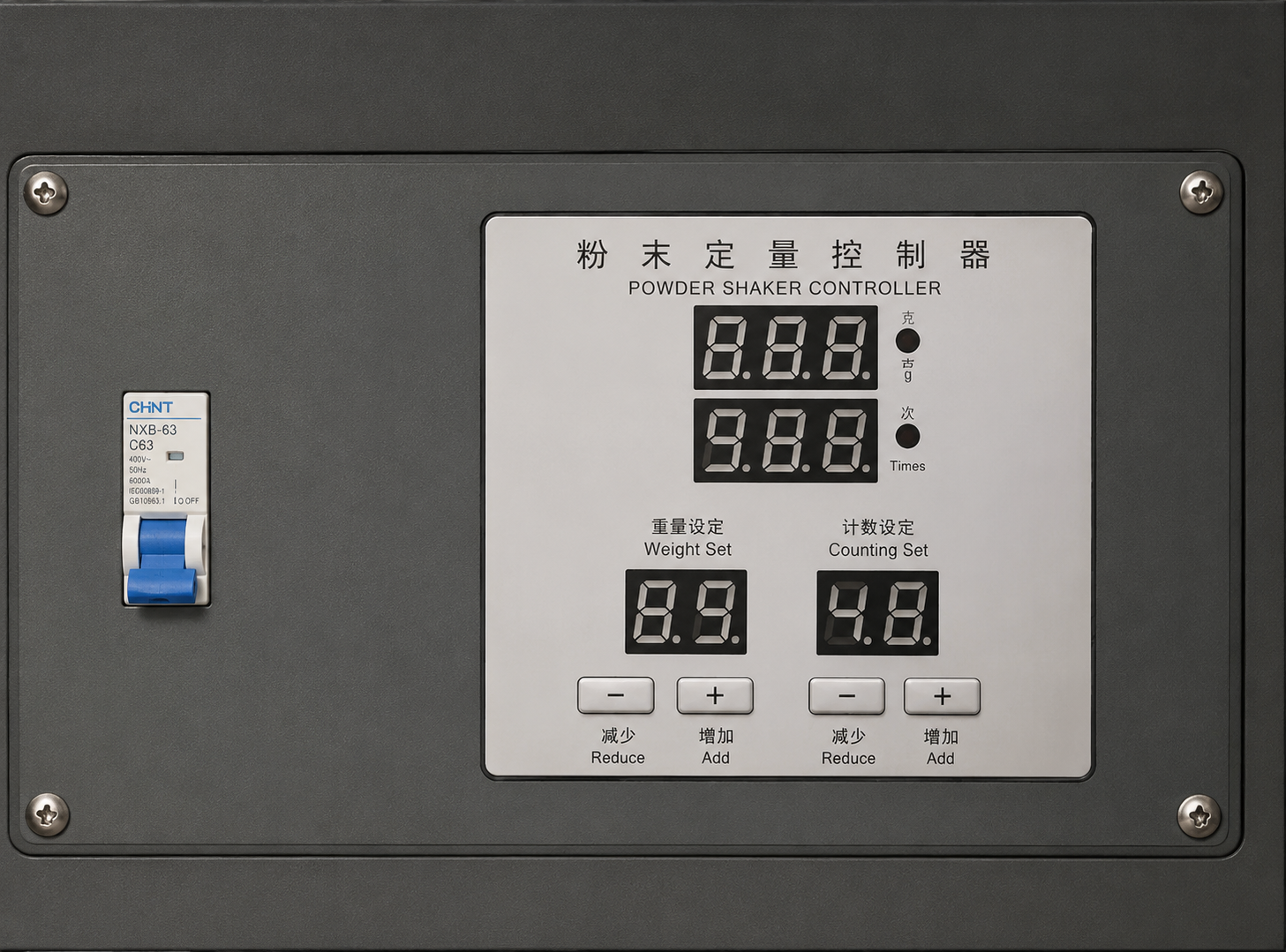

Shake powder machine control panel

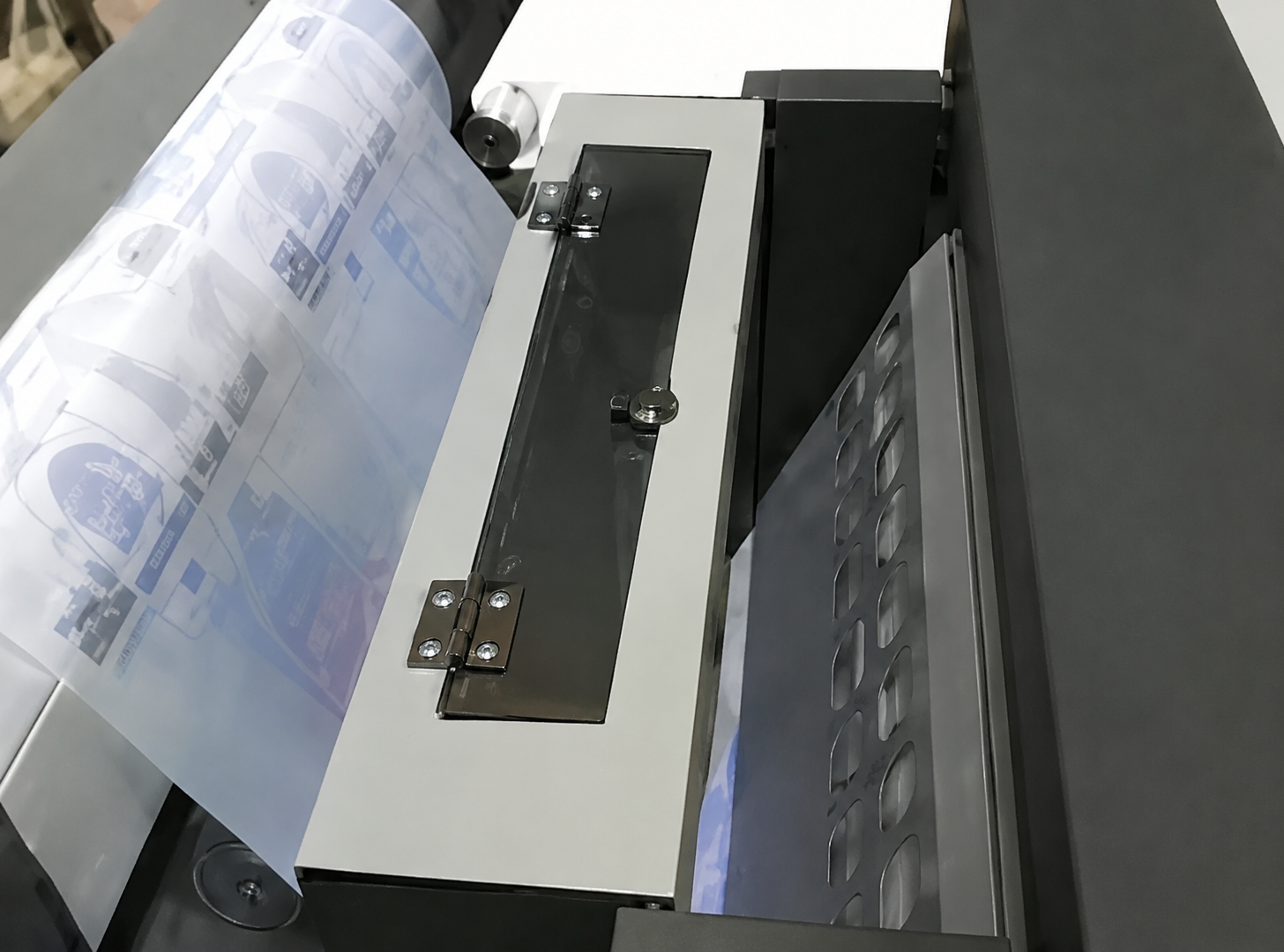

Triple drying inside the machine,shake powder machine built-in infrared drying

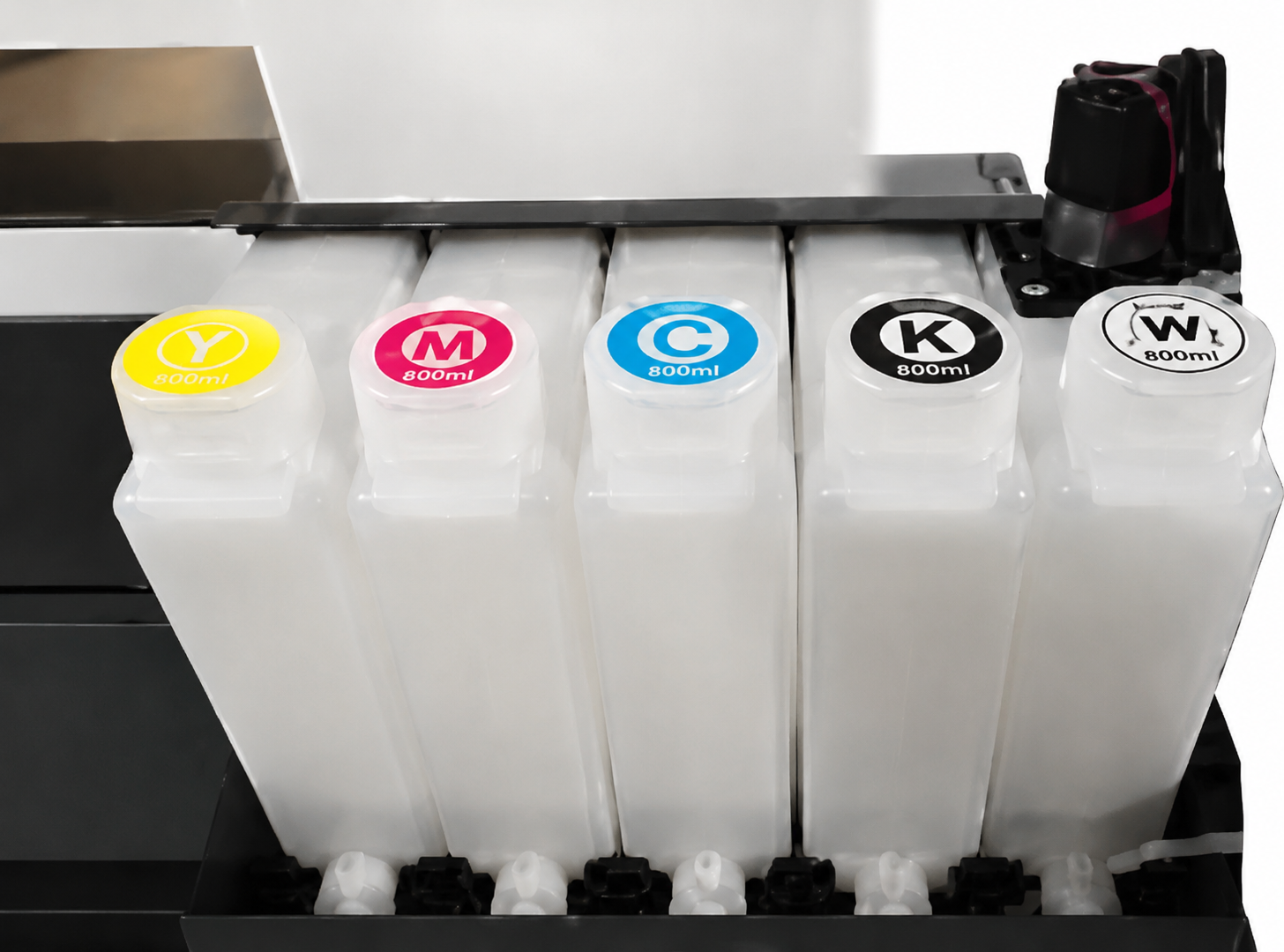

800ml ink bottle negative
| Model | KTM-A100 |
| Product name | DUAL-HEAD 60 cm INTEGRATED DTF PRINTER |
| Printhead | I3200 / I1600 / F1080 |
| Printhead quantity | 2 |
| Print speed | I3200: 6-pass 8 m²/h / I1600: 8-pass 6 m²/h / F1080: 6-pass 5 m²/h |
| Print media | PET film |
| Ink type | Pigment ink |
| Transmission interface | Gigabit Network Port transmission |
| Media width | 600 mm |
| Input voltage | 220 V/110 V |
| Print height | Printing height adjustable 0-12 mm, best printing height is 1.8 mm |
| Ink supply system | 800 mL ink bottle negative pressure ink supply |
| Heating system | Triple drying inside the machine; powder shaker with built-in infrared drying |
| Feeding and take-up system | 15R high-speed single-head feeding and take-up system |
| RIP software | Maintop 6.1 |
| Machine power | 1300 W |
| Shake powder machine power | 4500 W |
| Machine gross weight | 85.5 kg |
| Shake powder machine gross weight | 80 kg |
| Machine size | 1365 × 535 × 470(+200)mm |
| Machine packing size | 1435 × 610 × 615 mm |
| Shake powder machine size | 720 × 840 × 970 mm |
| Shake powder machine packing size | 1190 × 930 × 1110 mm |
Step1 Design
Step 2 Print the pattern on film

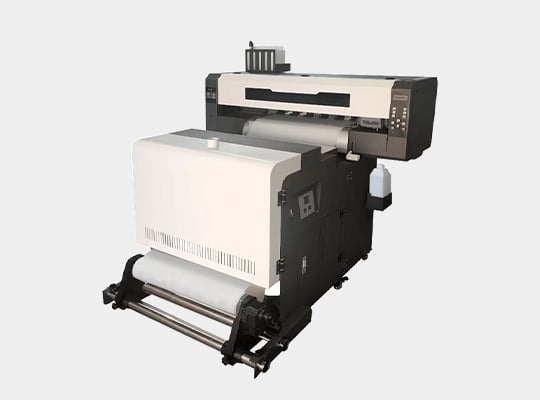

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
A: It supports dual I3200, dual I1600, or dual F1080 printheads.
A: The listed speeds are approximately 8 m²/h in 6 Pass with I3200 printheads, 6 m²/h in 8 Pass with I1600 printheads, and 5 m²/h in 6 Pass with F1080 printheads.
A: Yes. It features white ink circulation and agitation, together with negative-pressure ink delivery from 800 ml ink bottles.
A: Yes. Its waste-powder recycling system improves powder utilization and reduces consumable waste.
A: It supports AC 220/110 V ±10%, 50/60 Hz, with a power rating of approximately 2000 W. The recommended temperature is 22-28°C with 40%-60% humidity.
