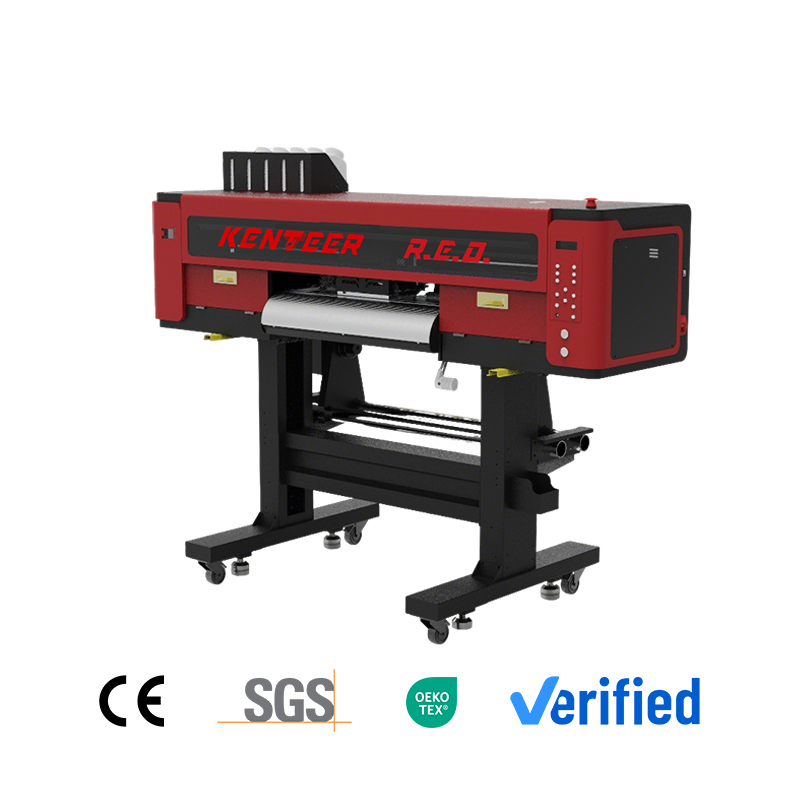

High-productivity 4-head 60cm DTF printing system designed for commercial garment decorators. Features stable white ink supply, precise feeding, and durable transfer results on all textiles.
Features
1.Maximum printing width: 620mm
2.Print head: I3200*4
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and full-transparent acrylic side panels.
2. Equipped with white-ink circulation and white-ink stirring systems.
3. Fitted with silent guide rails and a carriage anti-collision function.
4. Includes low-ink alarm and out-of-paper detection.
5. Features a lifting ink stack and print-head base-plate heating.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Prevents white ink sedimentation and nozzle clogging, ensuring smooth operation of the ink delivery system.
3. Reduces noise during printing, protects the printheads, and prevents accidental damage.
4. Avoids ineffective printing and reduces material waste
5. Ensures smooth ink flow.

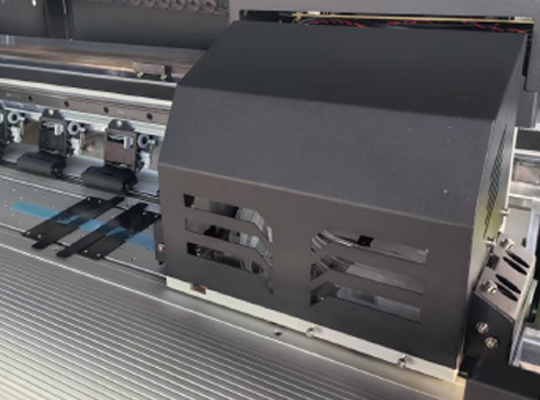

Carriage anti collision

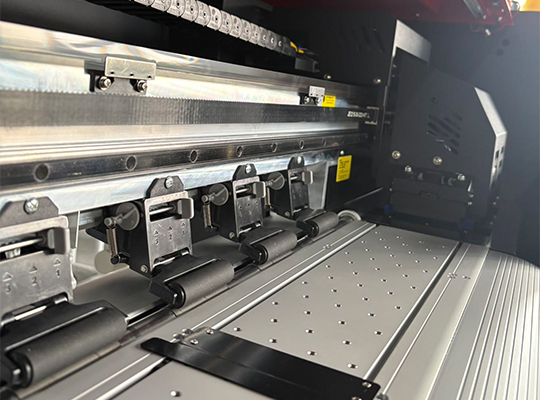

Paper pressure roller

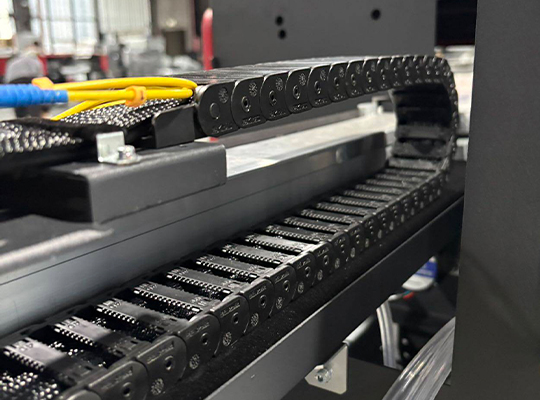

Silent energy chain

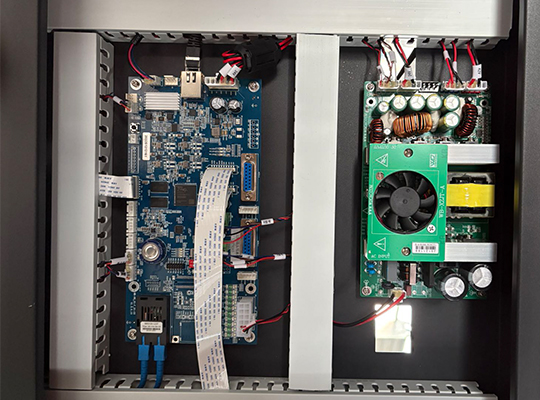

Board

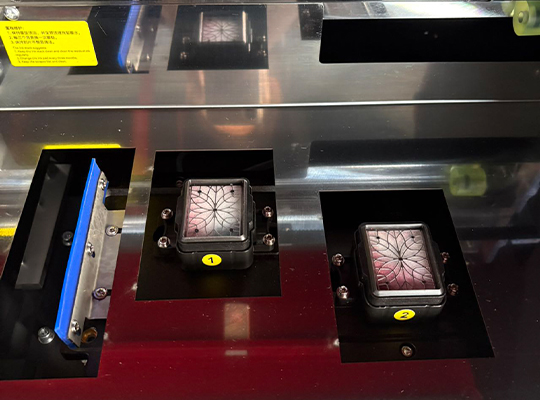

Aluminum plate lifting ink stack

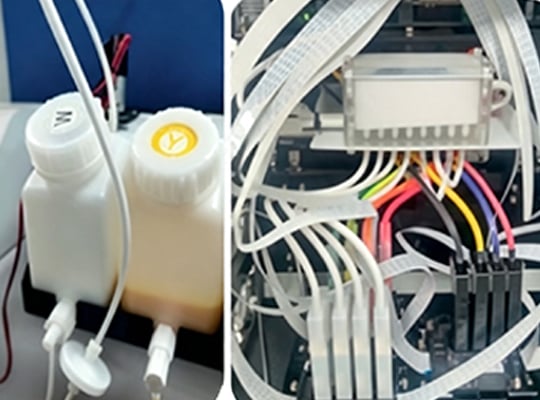

White ink circulation and agitation system
| Model | KTM-A89-4 |
| Product name | 4-HEAD 60 cm DTF PRINTER |
| Print size | 620 mm |
| Printhead | I3200-4H(2 W+2C) |
| Board system | Hoson (LAN) |
| Printing speed | 4-pass 29m²/h 6-pass 20m²/h 8-pass 14m²/h |
| Operating environment | Normal Operating Temperature: 22-28 °C Relative Humidity: 40%-60% |
| Power | AC220/110±10, 50-60 Hz / 2000 W(4H) |
| Weight/Packing size | N.W.: 200kg/G.W.: 220kg / 1880 × 660 × 1380 mm/2100 × 880 × 700 mm |
Step1 Design
Step 2 Print the pattern on film

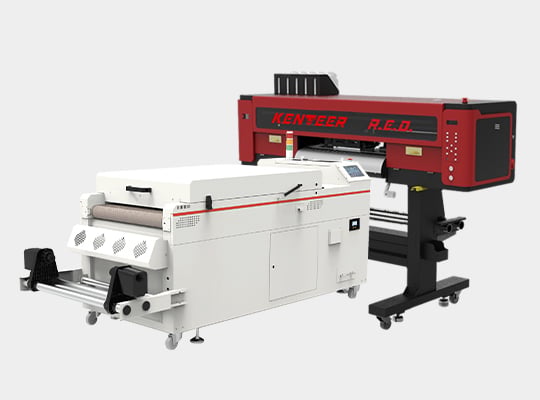

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It is equipped with four I3200 printheads. The specification page lists two printheads for white ink and two for color ink.
A: The listed speeds are approximately 29 m²/h in 4 Pass, 20 m²/h in 6 Pass, and 14 m²/h in 8 Pass.
A: The four-printhead configuration is designed for higher output, delivering faster production at the same 60 cm printing width.
A: It features a cold-rolled steel body, silent guide rail, carriage anti-collision protection, low-ink alarm, media-out detection, liftable capping station, and printhead base heating.
A: It supports AC 220/110 V ±10%, 50/60 Hz, with a power rating of approximately 2000 W. The recommended temperature is 22-28°C with 40%-60% humidity.
