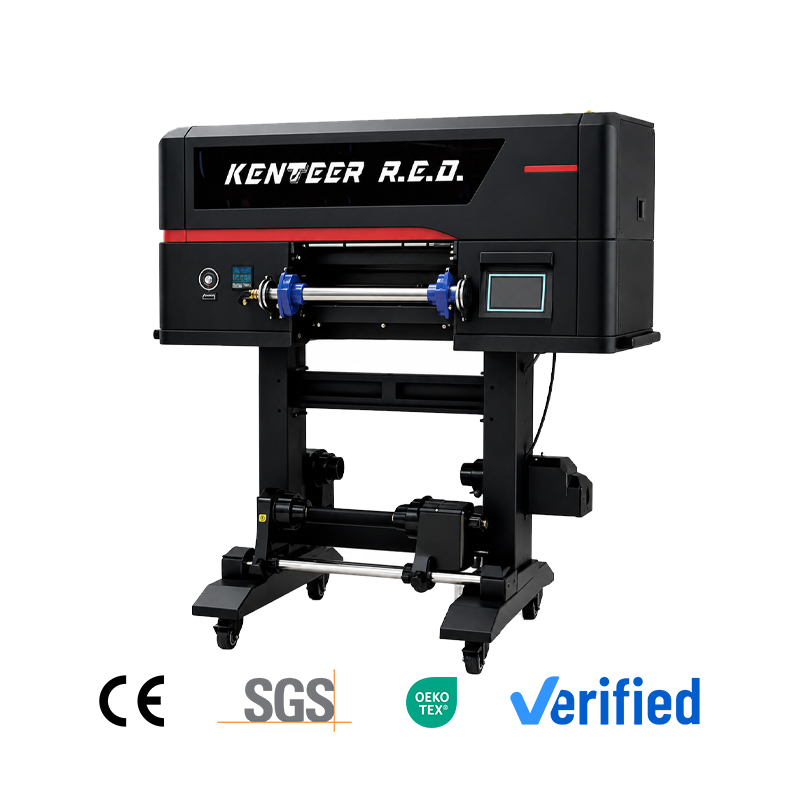

Start custom sticker printing with our single-head 30cm UV crystal label printer. Compact footprint, LED-UV curing, and easy operation for glass, acrylic, and metal transfers.
Features
1.Maximum printing width: 320mm
2.Print head: I3200HD*1
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and an acrylic cover.
2. Equipped with a high-definition touch screen.
3. Features ink shortage alarm and one-button automatic printhead cleaning system.
4. Includes carriage anti-collision function.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Easy and convenient to use.
3. Ensures smooth operation of the ink delivery system.
4. Protects the print head and prevents accidental damage.
5. Prints patterns with vibrant colors and excellent scratch resistance.

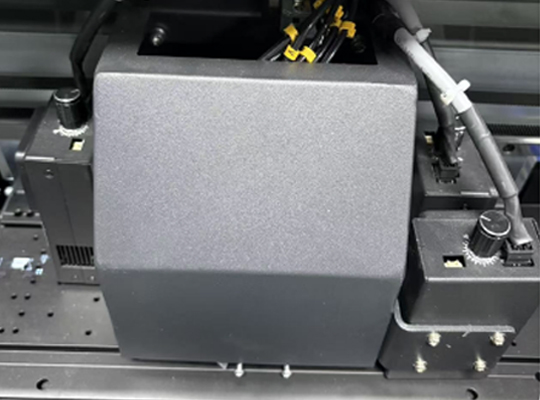

Trolley Printhead Anti Collision

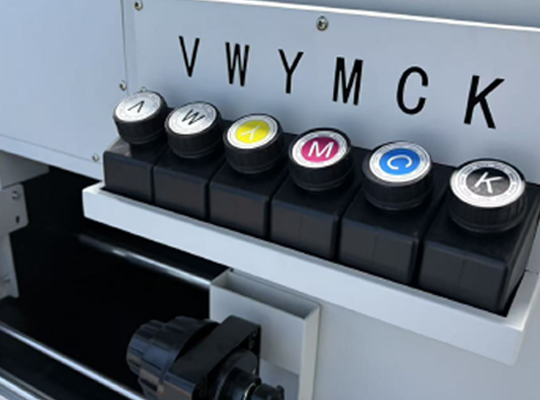

Ink Supply System

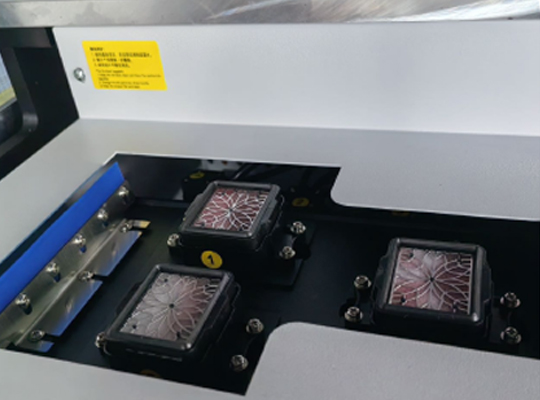

High Precision Aluminum Plate Lifting Ink Stack

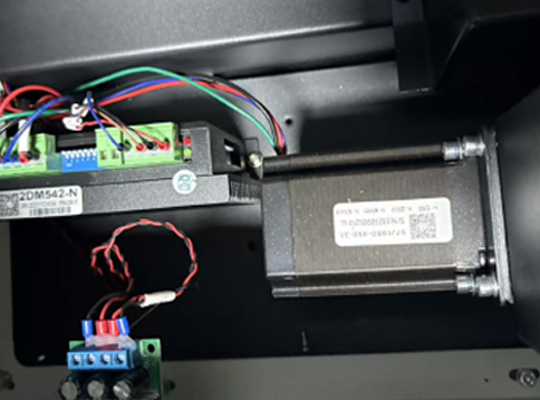

High Power Servo Motor

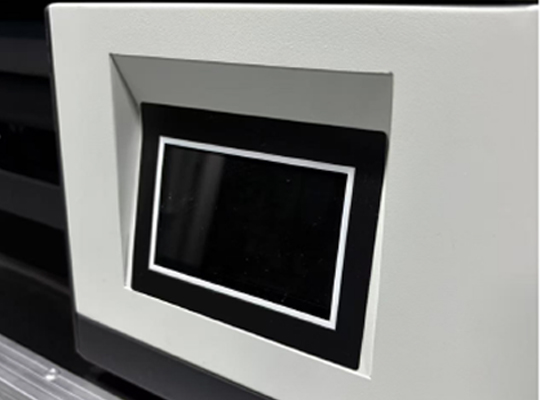

High Definition Touch Screen
| Model | KTM-A67-4 |
| Product name | SINGLE-HEAD 30 CM UV CRYSTAL LABEL PRINTER |
| Maximum printing width | 320 mm |
| Printhead | I3200HD × 1 |
| Board system | HOSON |
| RIP software | Maintop / RIIN |
| Printing speed | 0.5-2 m²/h |
| Master software | BetterPrinter system / Hoson |
| Ink supply | Automatic continuous ink supply system |
| Image processing/data interface | FlexiPRINT / USB |
| Assistant options | Single angled-mount printhead; ink shortage alarm; printing platform lighting |
| Ink type | UV ink / CMYKW / V |
| Operating environment | Normal operating temperature: 22-28 °C; relative humidity: 40%-60% |
| Power | AC 220 V, 50/60 Hz, 1500 W |
| Weight/packing size | N.W.: 60 kg; G.W.: 80 kg; machine: 1170 × 720 × 700 mm; packing: 1200 × 700 × 880 mm |
Design

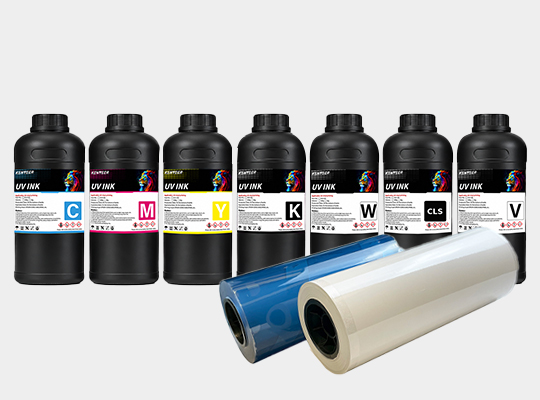

UV ink film

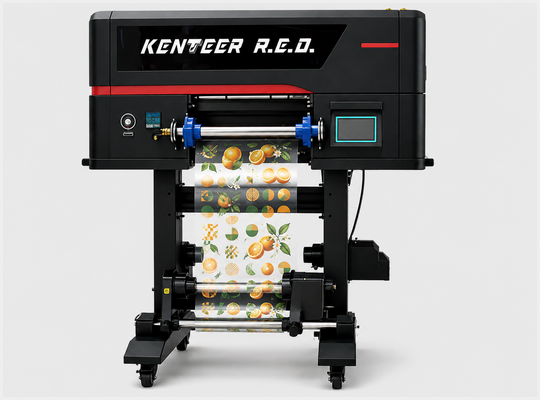

The printer prints the pattern on A film

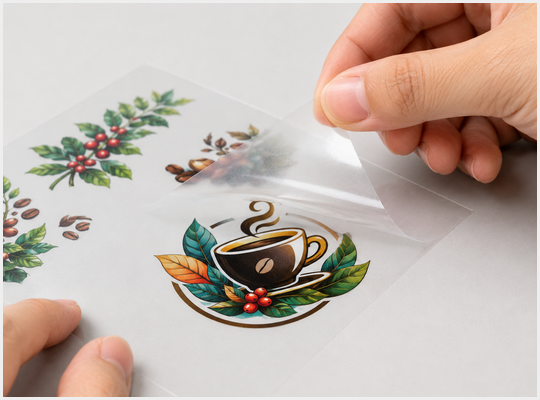

Uncover the transfer paste
Peel off Film B
Finished product

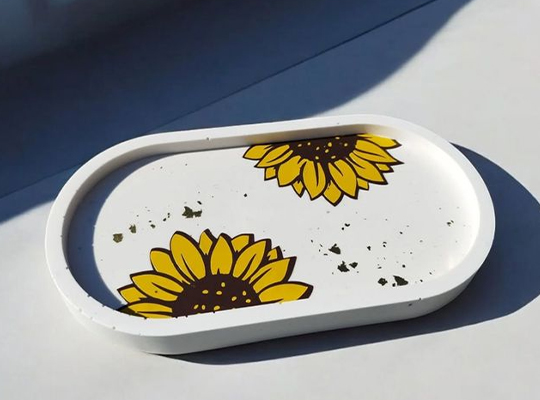

Plate

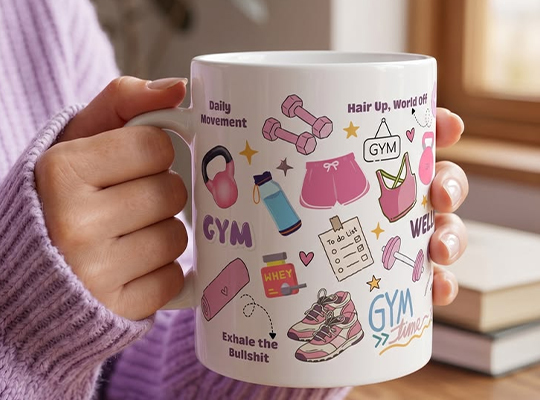

Cup

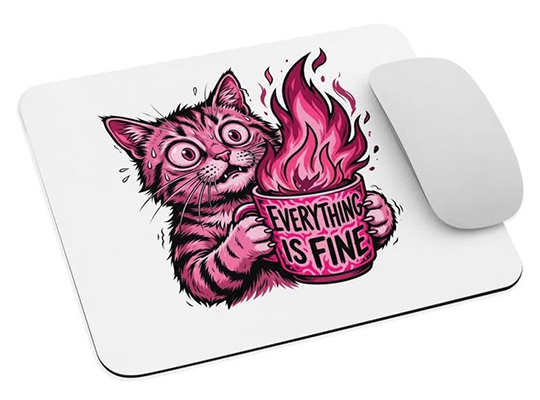

Mouse pad
Cup
Box
Acrylic
A. Its specified maximum printing width is 320 mm. Buyers should select film width and job layout within this usable range.
A. The catalog specifies one I3200HD printhead. This configuration should be matched with the correct ink, waveform, board settings, and maintenance parts.
A. The listed control configuration is a HOSON board with Maintop or RIIN RIP software. Confirm the final software version, license, and operating-system compatibility before shipment.
A. A high-definition touch screen, ink-shortage alarm, one-button automatic printhead cleaning, and carriage anti-collision are specified. These functions support stable production and help reduce avoidable printhead or material damage.
A. Provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and the materials to be used. This allows the final machine package to be confirmed accurately.
