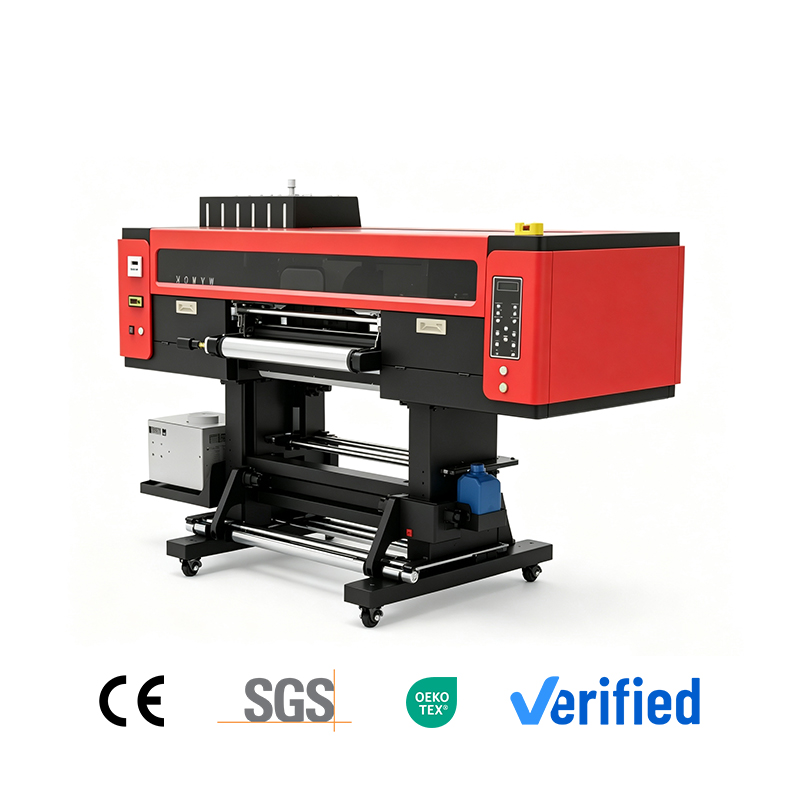

Boost production with our 60cm 4-head UV 3D label printer. Delivers high-speed printing with rich 3D tactile textures, vibrant color, and glossy varnish on roll-to-roll UV DTF film.
Features
1.Printing width: 620mm
2.Print head: EPSON I3200 U1*4
3.Board system: HOSON board
Advantages
1.The main body is made of cold-rolled steel plates, with aluminum alloy parts and an acrylic cover.
2.Equipped with high-precision silent guide rails.
3.Equipped with an automatic material unwinding and rewinding system.
4.Equipped with a carriage anti-collision function.
Benefits
1.Stable structure. The acrylic cover prevents ink splatter, block dust, and make the work status visible.
2.Smooth printing operation with reduced working noise.
3.Automatically feeds and rewinds the film material, improving production efficiency.
4.Protects the printhead and prevents accidental damage.
5.Achieves strong 3D effects with vibrant colors and high gloss, especially suitable for logo printing.
THK High precision
Constant temperature
Low nolse cable carrier
Electric linea ractuator
| Model | KTM-A11-D4 |
| Product name | 4-HEAD 60 CM UV 3D LABEL PRINTER |
| Print size | 620 mm |
| Printhead | Epson I3200-U1 × 4 |
| Printing speed | 4-pass: 9 m²/h; 6-pass: 6 m²/h; 8-pass: 3.5 m²/h |
| Mainboard | Hoson |
| Applicable medium | UV PU printable heat transfer vinyl |
| Special equipment features | Anti-collision device; rubber roller heating; adjustable electric pressure bar; automatic material unwinding and rewinding system |
| Power | AC 220/110 V ±10%; 50-60 Hz; 3000 W |
| Weight/packing size | N.W.: 180 kg; G.W.: 200 kg; machine: 1740 × 630 × 1440 mm; packing: 2030 × 860 × 690 mm |
Design

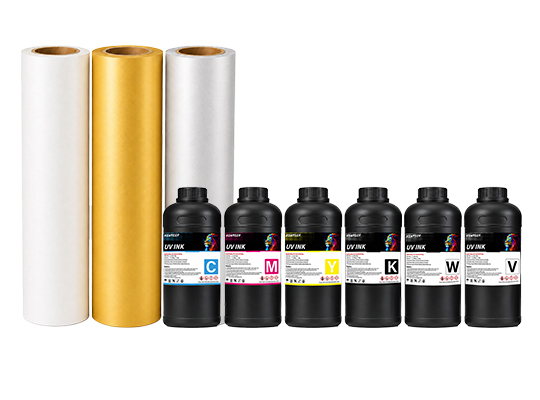

UV 3D Label Printer

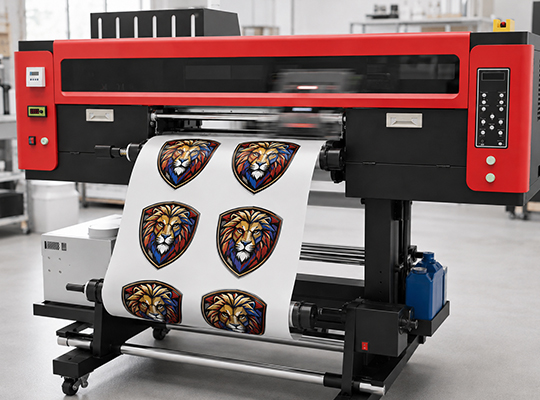

Printing

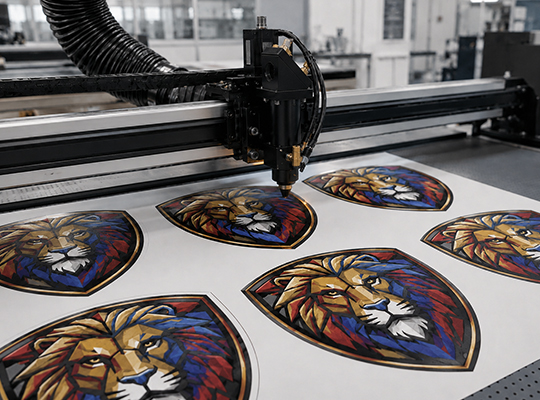

Laser Cutting

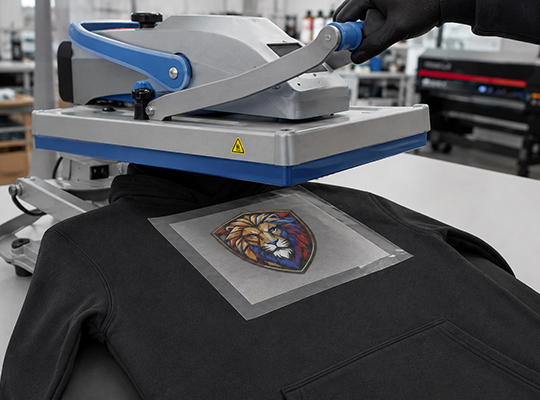

Heat Press
Finish
T-shirt
Sweatshirt
Throw-pillow
Hat
Canvas bag
Backpack
A. Its specified maximum printing width is 620 mm. Buyers should select film width and job layout within this usable range.
A. The catalog specifies four Epson I3200 U1 printheads. This configuration should be matched with the correct ink, waveform, board settings, and maintenance parts.
A. The listed control configuration is a HOSON board; the source worksheet does not specify a bundled RIP package. Confirm the final software version, license, and operating-system compatibility before shipment.
A. High-precision silent guide rails, automatic material unwinding and rewinding, an acrylic protective cover, and carriage anti-collision are specified. These functions support stable production and help reduce avoidable printhead or material damage.
A. Provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and the materials to be used. This allows the final machine package to be confirmed accurately.
