Partner with a professional dtf printer supplier to get bulk tier pricing on advanced digital garment printers.
Features
1.Maximum printing width: 620mm
2.Print head: I3200*2
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and full-transparent acrylic side panels.
2. Equipped with white-ink circulation and white-ink stirring systems.
3. Fitted with silent guide rails and a carriage anti-collision function.
4. Includes low-ink alarm and out-of-paper detection.
5. Features a lifting ink stack and print-head base-plate heating.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Prevents white ink sedimentation and nozzle clogging, ensuring smooth operation of the ink delivery system.
3. Reduces noise during printing, protects the printheads, and prevents accidental damage.
4. Avoids ineffective printing and reduces material waste
5. Ensures smooth ink flow.

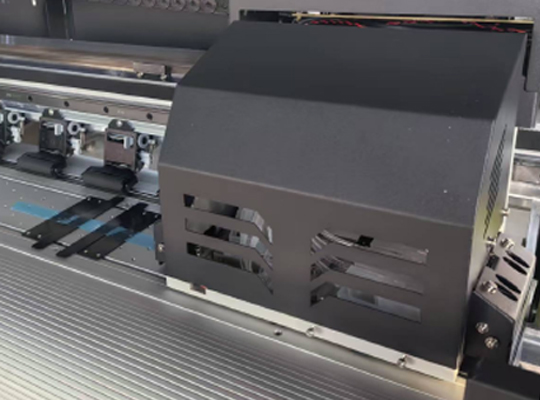

Carriage anti collision

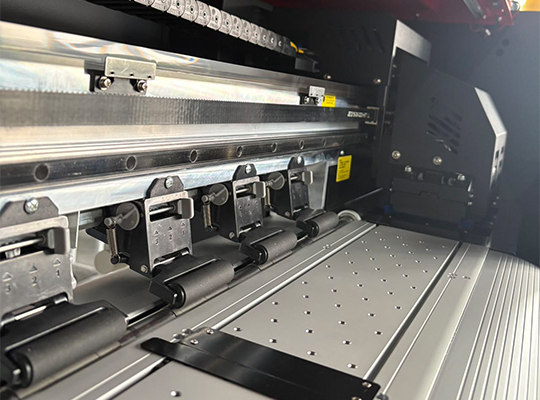

Paper pressure roller

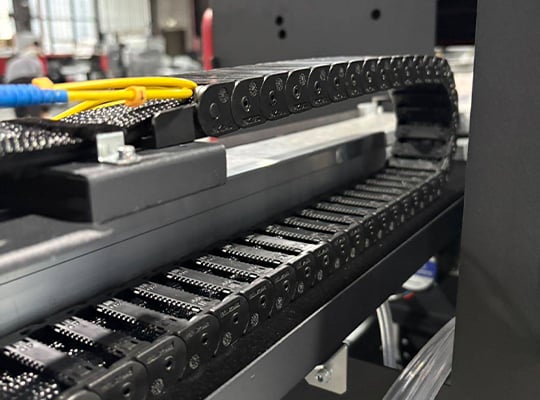

Silent energy chain

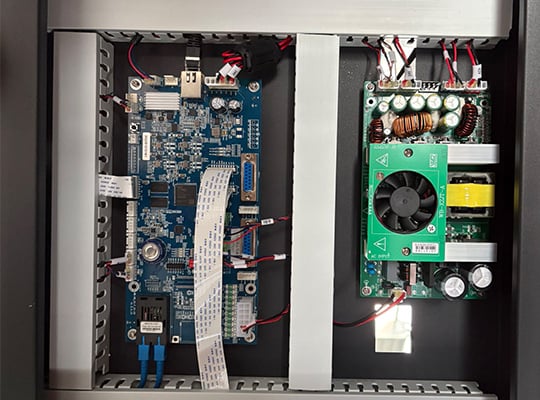

Board

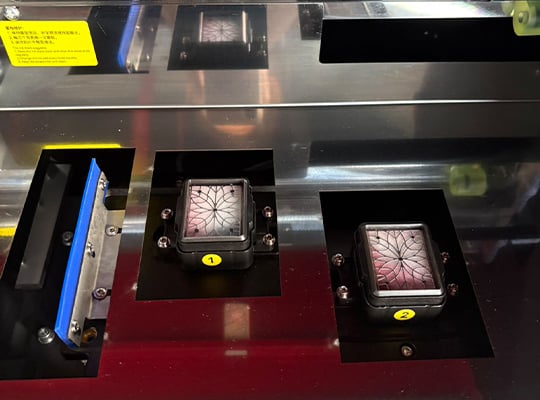

Aluminum plate lifting ink stack

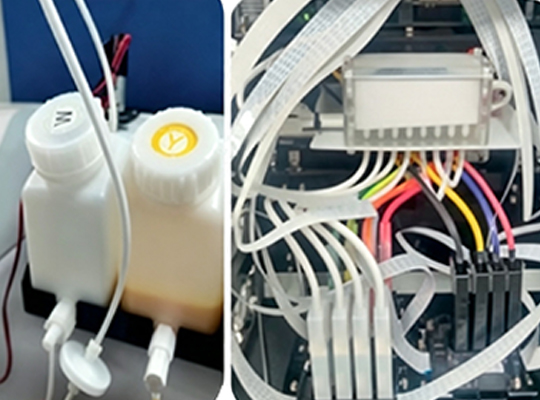

White ink circulation and agitation system

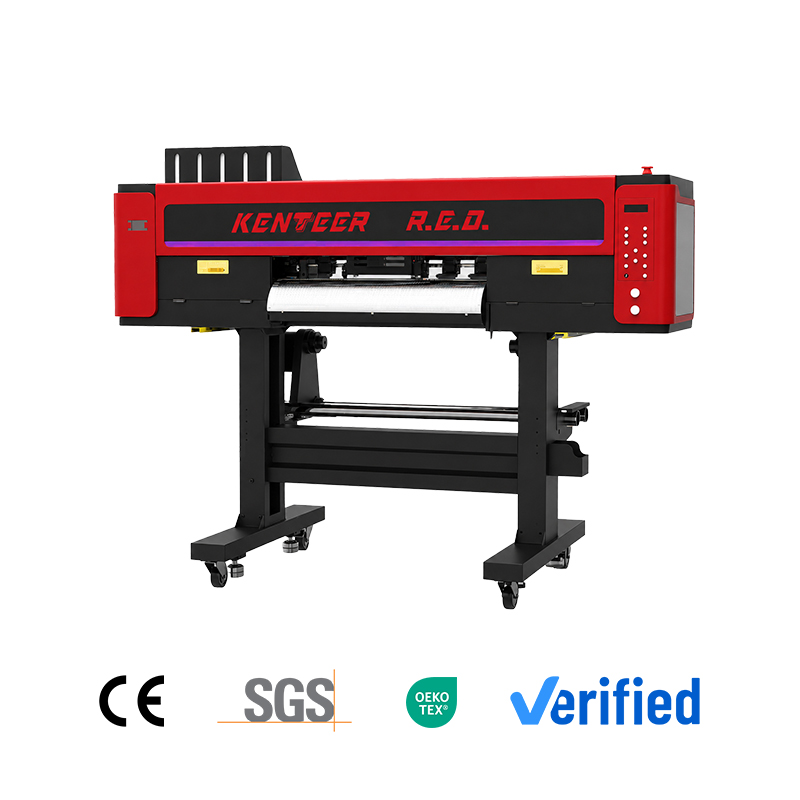

| Model | KTM-A89-2 |
| Product name | 2-HEAD 60 cm DTF PRINTER |
| Print size | 620 mm |
| Printhead | I3200-2H(W+C) |
| Board system | Hoson/ SY(LAN) |
| Printing Speed | 4-pass 15 m²/h; 6-pass 10 m²/h; 8-pass 6 m²/h |
| Operating environment | Normal Operating Temperature: 22-28 °C Relative Humidity: 40%-60% |
| Power | AC220/110±10, 50-60 Hz 1500 W (2H) |
| Weight/Packing Size | N.W.: 200kg/G.W.: 220kg1880 × 610 × 1380 mm /2030 × 860 × 690 mm |

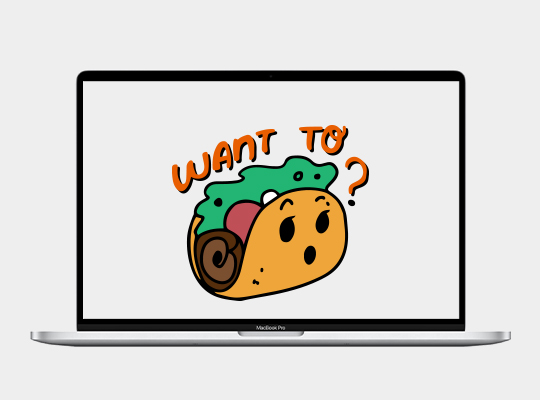

Step1 Design
Step 2 Print the pattern on film

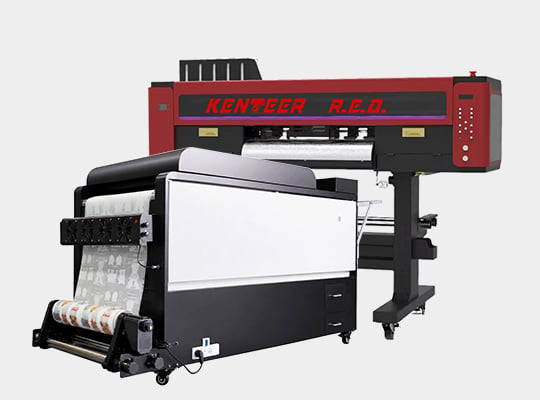

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It is equipped with two I3200 printheads in a dual-printhead color-plus-white configuration.
A: The listed speeds are approximately 15 m²/h in 4 Pass, 10 m²/h in 6 Pass, and 6 m²/h in 8 Pass. Actual speed depends on the selected print settings.
A: It includes white ink circulation, white ink agitation, a liftable capping station, and printhead base heating to help maintain smooth ink flow.
A: A silent guide rail, carriage anti-collision protection, a low-ink alarm, and media-out detection help reduce accidental damage and wasted printing.
A: It is suitable for garment customization shops, textile printing businesses, and small-to-medium-volume continuous 60 cm DTF production. It can be paired with a 600 mm powder shaker to create a complete solution.
