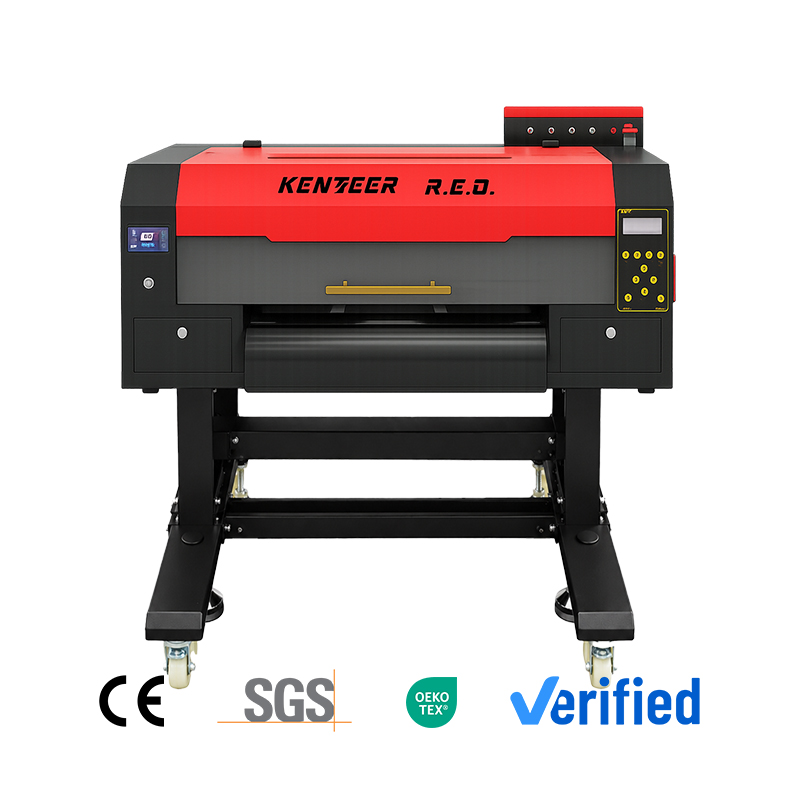

Professional 2-head A3 DTF printer and powder shaker solution. Stable structure, efficient production, precise control, and reliable performance for high-quality DTF transfer printing.
Features
1.Maximum printing width: 330mm
2.Print head: I1600*2
3.Board system: HOSON board
4.RIP system: RIIN
Advantages
1. The shell is made of cold-rolled steel plate, and the sheet metal is thicker.
2. Mechanical key panel, digital display.
3. Imported silent guide rail.
4. It has ink shortage alarm, white ink circulation, white ink stirring, and carriage anti-collision functions.
Benefits
1. Ensure the stable performance of the overall frame and beautiful appearance of the machine.
2. Display the working status and easy to operate.
3. Print smoothly, with high precision and reduced noise.
4. Monitor the ink volume of the printer, protect the printhead, and print more smoothly.
| Nozzle type | EPSON-i1600m | ||
| Number of printhead | EPSON-i1600*2 | ||
| Wide-format printing | <330MM | ||
| Print configuration | Color + White | ||
| Applicable medium | DTF film | ||
| Printing speed | 8pass 3m²/h,12pass 2m² /h | ||
| Ink type | Pigment ink | ||
| Printing accuracy | 1440/2160/2880DPI | ||
| RIPsoftware | RIIN | ||
| Operating system | WIN7,WIN10 | ||
| Heating and drying function | Front and rear arc plate heating,plat form suction LED lighing | ||
| Platform suction | Adjustable suction power | ||
| Print interface | Gigabit Ethernet port | ||
| Temperature and humidity | 15-30°c/35-65% | ||
| Electrical parameters | 50HZ/60HZ,220V 15A 0.5kW | ||
| Size and weight | Machine:850*637*440mm N.W.56.5 kg;Packaging:910*685*601mm G.W.76.5kg |
| Model | KTM-33400 |

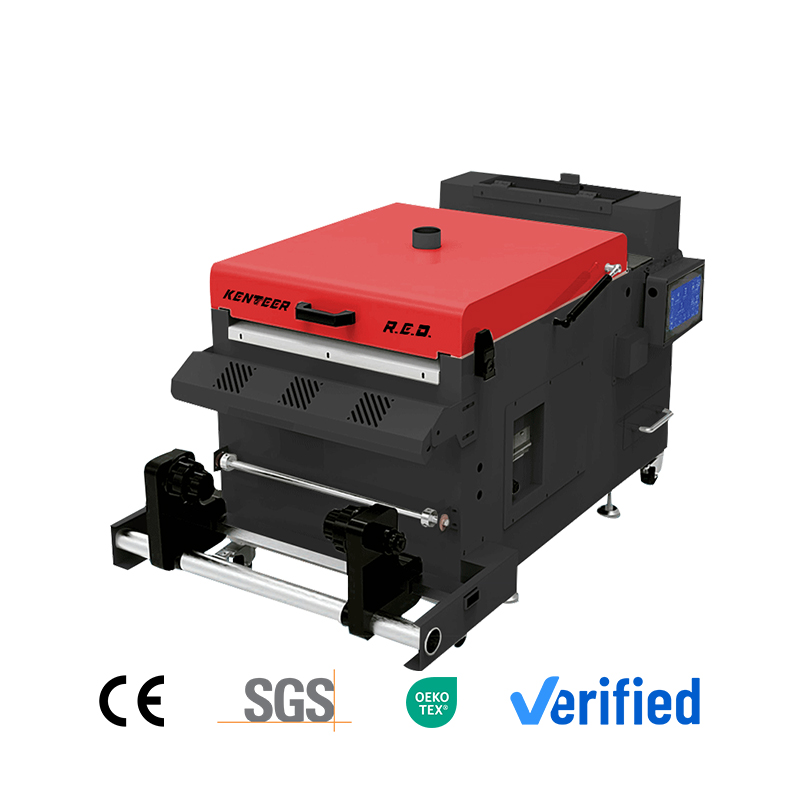

| Product name | A3 DTF POWDER SHAKER |
| Working width | 0-380 mm |
| Applicable medium | Nylon, chemical fiber, cotton cloth, leather, swimsuit, diving suit, PVC, EVA, etc |
| Powder application control | Powder shaking control, powder spreading control, direction and quantity control |
| Heating and drying function | Front guide plate heating, upper part drying and curing, single-row cooling with cold air for temperature reduction |
| Material conveying method | Take-up traction system |
| Winding function | Automatic sensing and winding |
| Rated current | 10 A |
| Energy consumption | 1-2.2 kW |
| Outer packaging | Wooden box |
| Rated voltage | 220 V |
| Rated power | 2.2 kW |
| Equipment size | 1185 × 608 × 641 mm |
| Outer packaging specification | 1150 × 700 × 700 mm |
| Net weight of equipment | 50 kg |
| Gross weight | 100 kg |

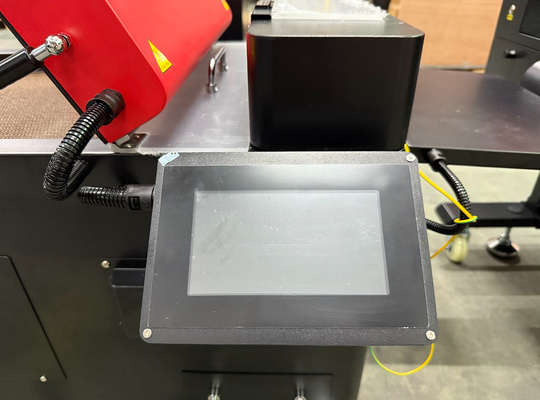

Control panel
Cooling fan

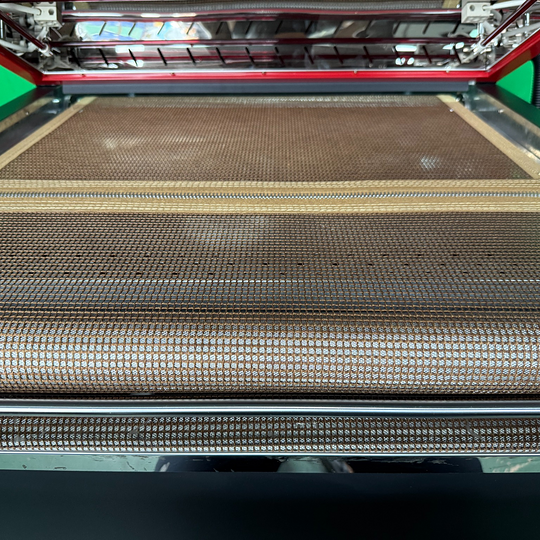

Drying tunnel mesh belt

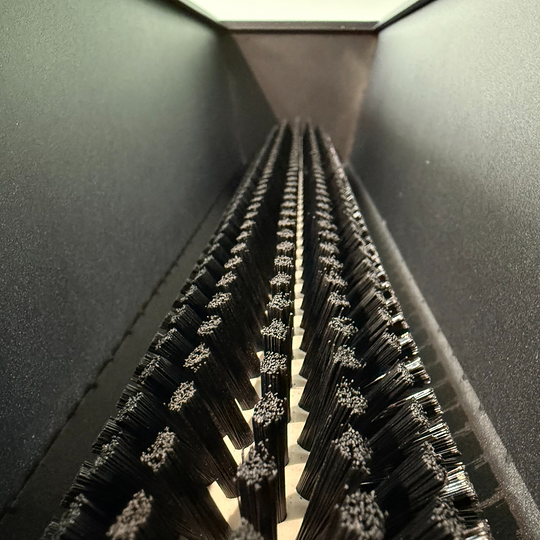

Shake powde room

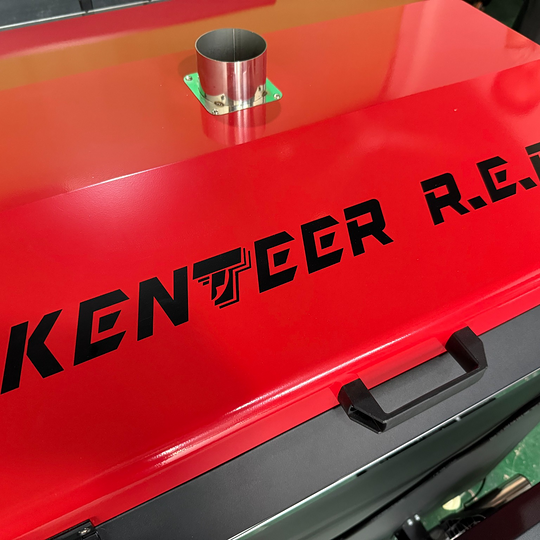

Smoke exhaust outlet
Winding system
Features
1.Media width: 380mm
2.Suitable for 2-head printer
3.Integrated powder shaking and drying
Advantages
1. Drying tunnel length: 600mm, ruby heating tube.
2. LCD operation panel.
3. Powder control, front guide plate heating, single row cold air cooling system.
4. Teflon mesh belt, automatic induction winding.
Benefits
1. Reduce water and oil reflux, heat gently, not easy to burn.
2. Display working status, easy to operate.
3. Ensure uniform powder spreading, rapid cooling after drying, and fast solidification of the pattern.
4. Prevent the material from sticking to the platform, wind up smoothly, and avoid wrinkles or damage during the winding process.

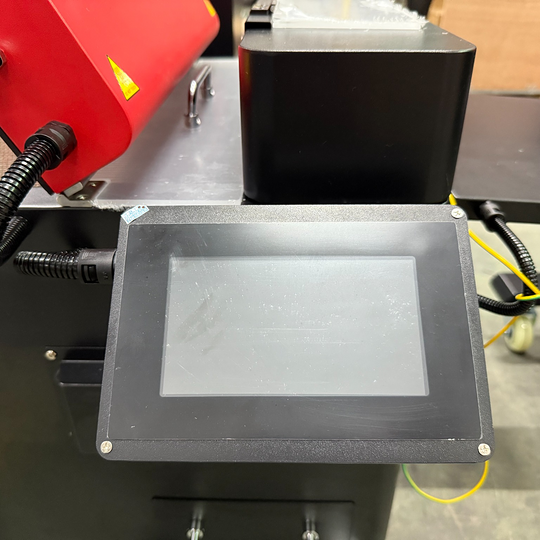

Control Panel

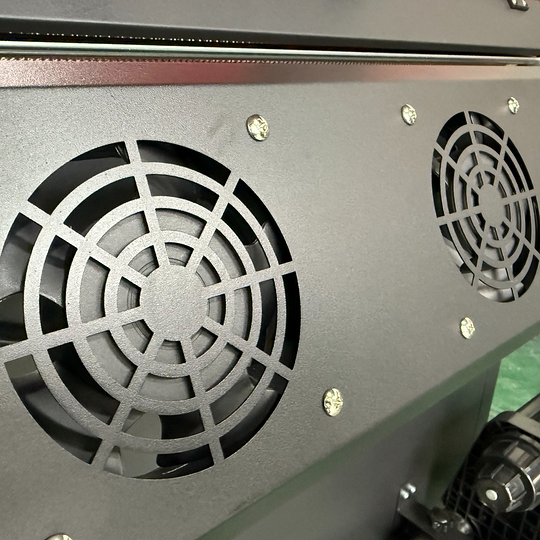

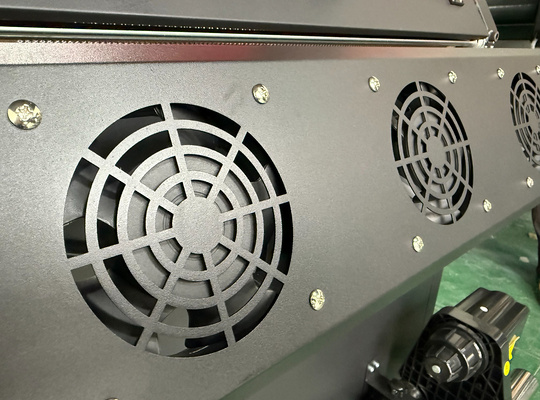

Cooling Fan

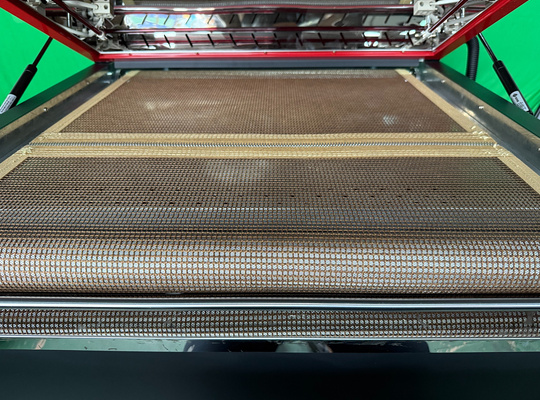

Drying Mesh Belt

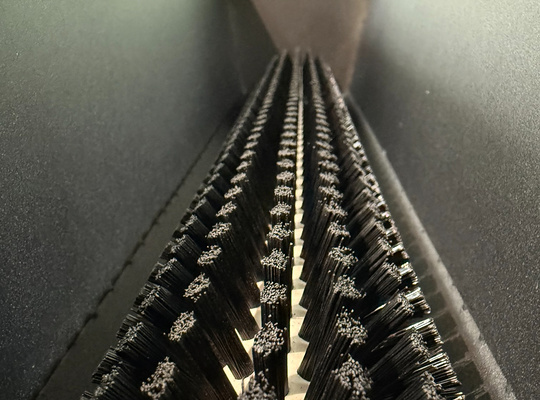

Shake Powder Room

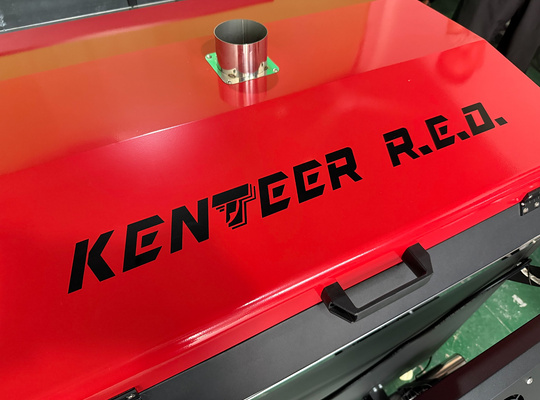

Smoke Exhaust Outlet

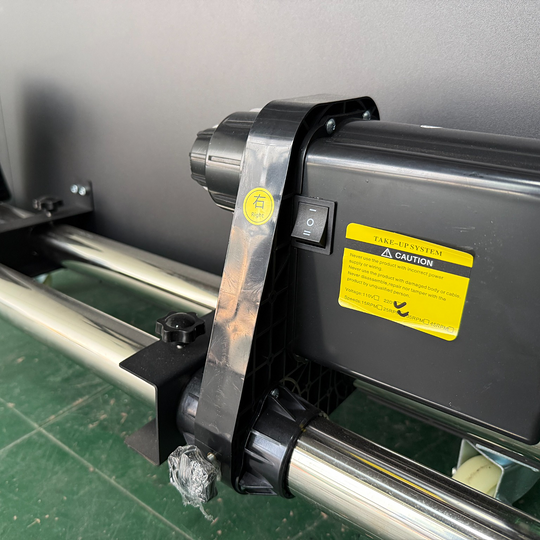

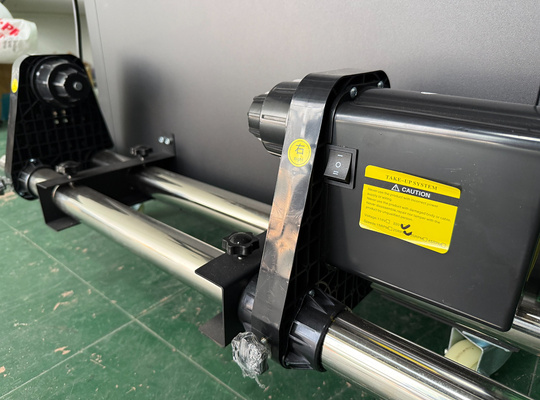

Winding System
Step1 Design

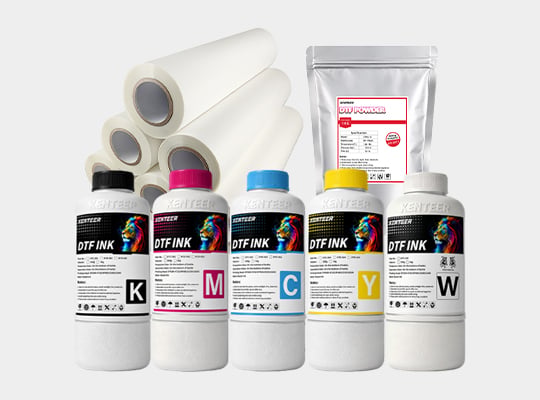

Step 2 Print the pattern on film

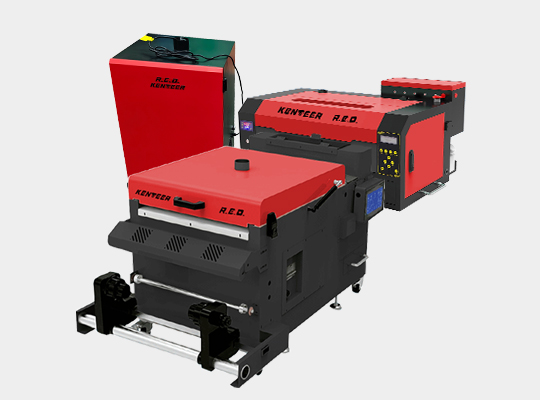

Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern

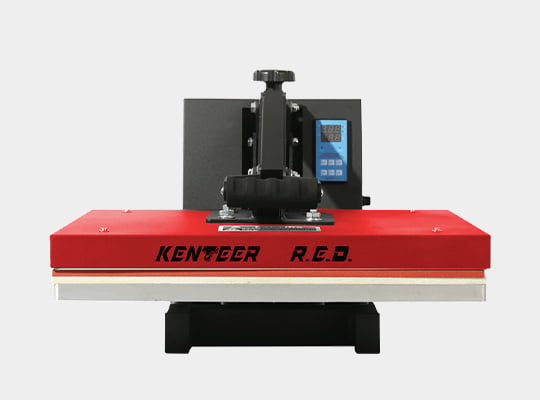

Step 5 Heat press transfer onto fabric
Step 6 Final finished product
POLO
HOODIE
T SHIRT
PILLOW
CANVAS BAG
CAP
A:Yes. It integrates powder application, powder shaking, drying, cooling, and automatic take-up.
A: It uses an approximately 600 mm drying tunnel and ruby heating tubes for gentler heating, helping reduce moisture and oil vapor backflow as well as the risk of scorching the media.
A: A Teflon mesh belt and automatic sensing take-up system help feed the media smoothly and reduce sticking, wrinkles, and damage.
A: A: Materials listed in the catalog include nylon, synthetic fabrics, cotton, leather, swimwear fabric, neoprene, PVC, and EVA.
A: The unit is rated at 220 V and 2.2 kW. Its dimensions are approximately 1185 × 608 × 641 mm.
