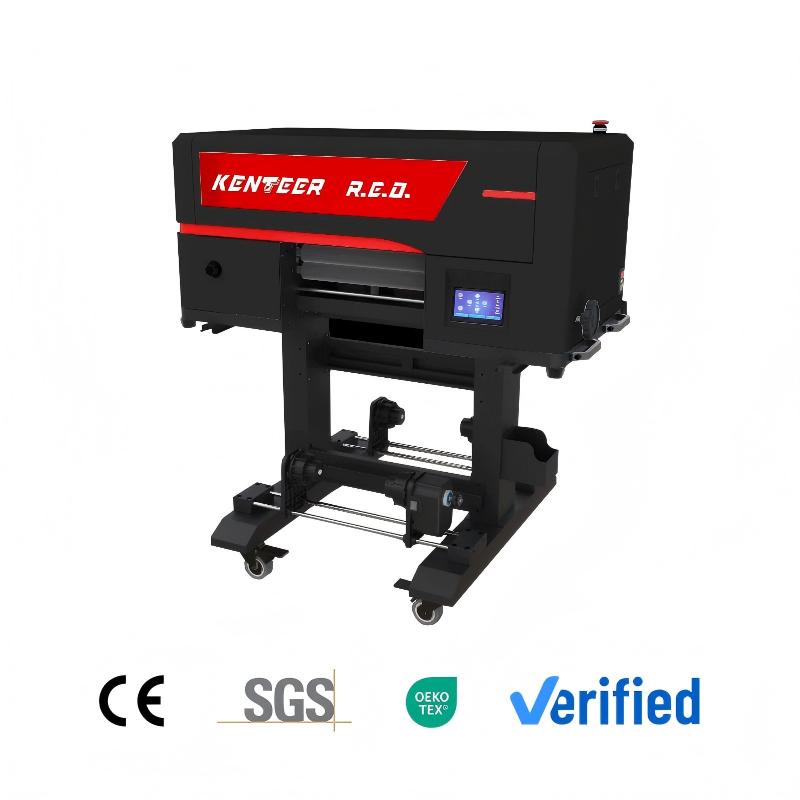

Launch custom 3D sticker production with a cost-effective 30cm single-head UV DTF printer. Low ink consumption, precise details, and versatile printing on hard surfaces.
Features
1.Maximum printing width: 320mm
2.Print head: I3200HD*1
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and an acrylic cover.
2. Equipped with a high-definition touch screen.
3. Features ink shortage alarm and one-button automatic printhead cleaning system.
4. Includes carriage anti-collision function.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Easy and convenient to use.
3. Ensures smooth operation of the ink delivery system.
4. Protects the print head and prevents accidental damage.
5. Can achieve strong 3D effect, bright colors and good gloss.
Trolley Printhead Anti Collision
Ink Supply System
High Precision Aluminum Plate Lifting Ink Stack
High Power Servo Motor
High Definition Touch Screen
| Model | KTM-A67-1 |
| Product name | SINGLE-HEAD 30 CM UV 3D LABEL PRINTER |
| Maximum printing width | 320 mm |
| Printhead | I3200HD × 1 |
| Board system | HOSON |
| RIP software | Maintop / RIIN |
| Printing speed | 0.5-2 m²/h |
| Master software | BetterPrinter system / Hoson |
| Ink supply | Automatic continuous ink supply system |
| Image processing/data interface | FlexiPRINT / USB |
| Assistant options | Single angled-mount printhead; ink shortage alarm; printing platform lighting |
| Ink type | UV ink / CMYKW / V |
| Operating environment | Normal operating temperature: 22-28 °C; relative humidity: 40%-60% |
| Power | AC 220 V, 50/60 Hz, 1500 W |
| Weight/packing size | N.W.: 60 kg; G.W.: 80 kg; machine: 1170 × 720 × 700 mm; packing: 1200 × 700 × 880 mm |
Design

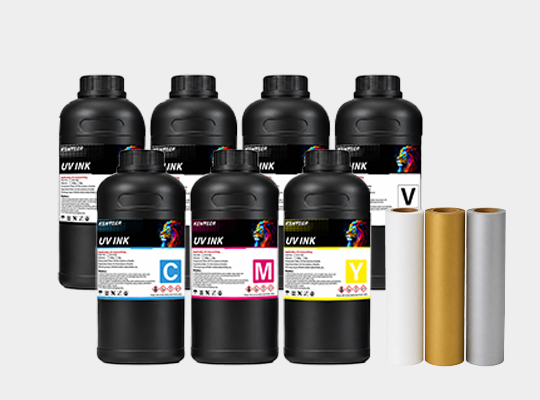

UV ink film

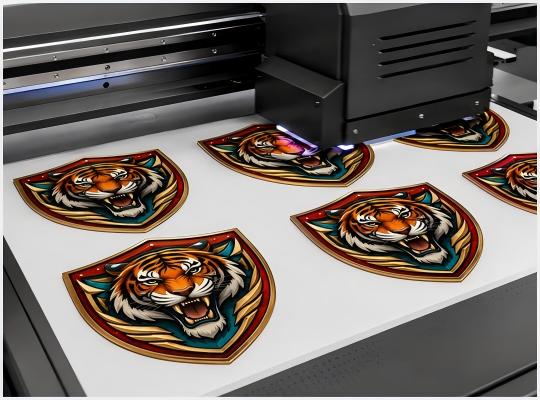

Printing

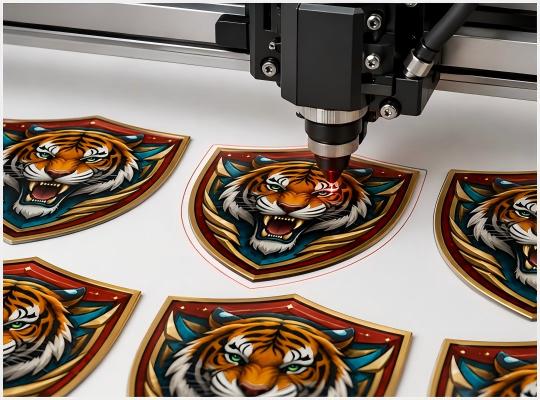

Laser cutting
Use transfer tape to position the pattern

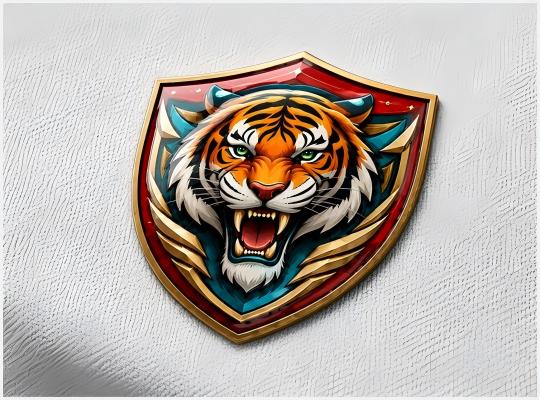

Finished product
T-shirt
Pencil case
Hoodie
Cap
Canvas bag
Backpack
A. Its specified maximum printing width is 320 mm. Buyers should select film width and job layout within this usable range.
A. The catalog specifies one I3200HD printhead. This configuration should be matched with the correct ink, waveform, board settings, and maintenance parts.
A. The listed control configuration is a HOSON board with Maintop or RIIN RIP software. Confirm the final software version, license, and operating-system compatibility before shipment.
A. A high-definition touch screen, ink-shortage alarm, one-button automatic printhead cleaning, and carriage anti-collision are specified. These functions support stable production and help reduce avoidable printhead or material damage.
A. Provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and the materials to be used. This allows the final machine package to be confirmed accurately.
