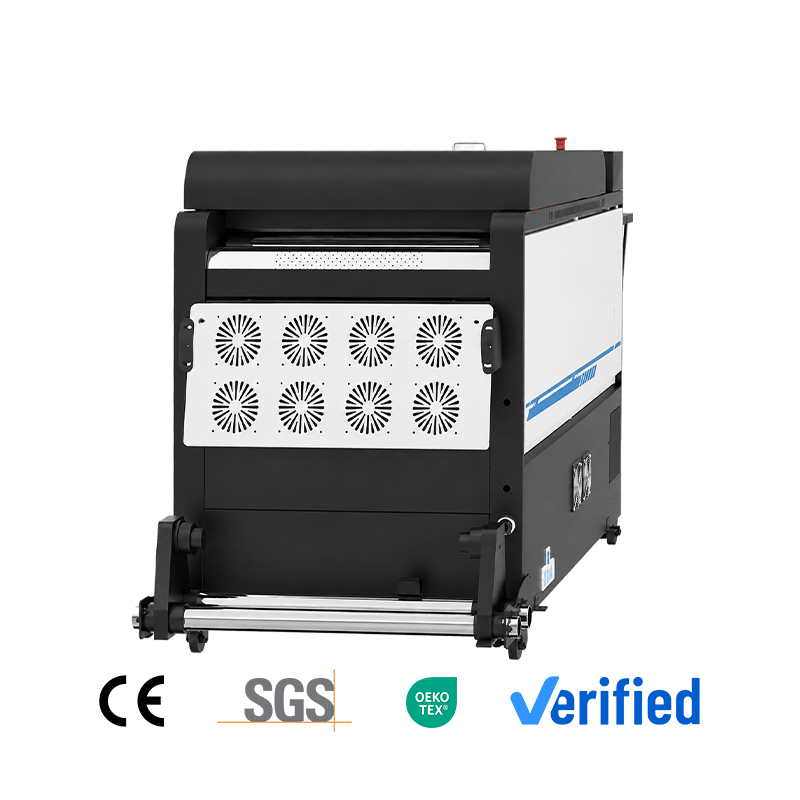

Match your 6-head DTF printer with our heavy-duty powder shaker. Features automatic powder recycling, built-in smoke purifier, fast curing, and intelligent temperature control for mass production.
Features
1.Media width: 620mm
2.Suitable for 6-head printer
3.Integrated powder shaking and drying
Advantages
1. Drying tunnel length: 100cm.
2.11 heating tubes, equipped with back drying function.
3. Use Teflon mesh belt and intelligent winding system.
4. Double row cooling fans, good cooling effect.
5. Built-in smoke purifier.
Benefits
1. Evenly dried, reduce the return of water and oil, and ensure the stability of the finished product.
2. Faster heating efficiency effectively improves oil return issues and ensures more uniform drying.
3. Prevent the material from sticking to the platform, wind up smoothly, and avoid wrinkles or damage during the winding process.
4. Achieves oil and fume separation with dual filtration, making it more environmentally friendly.

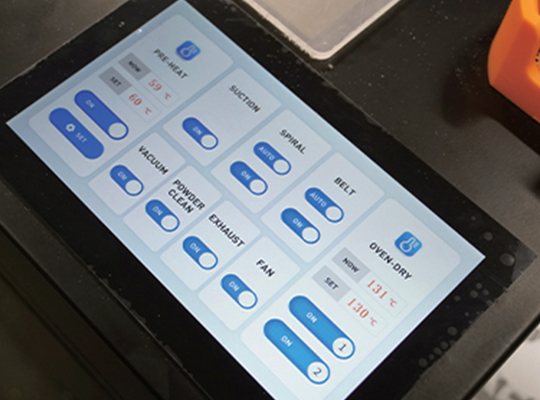

Intelligent touch screen

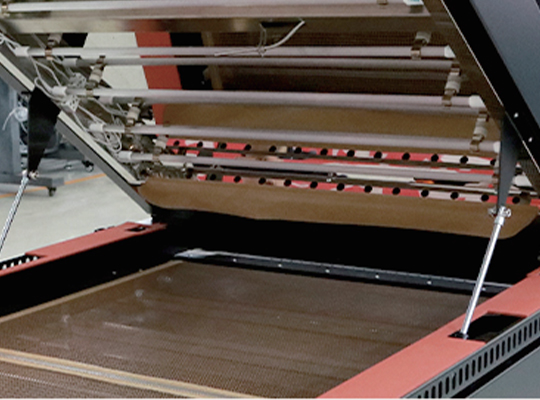

Back drying

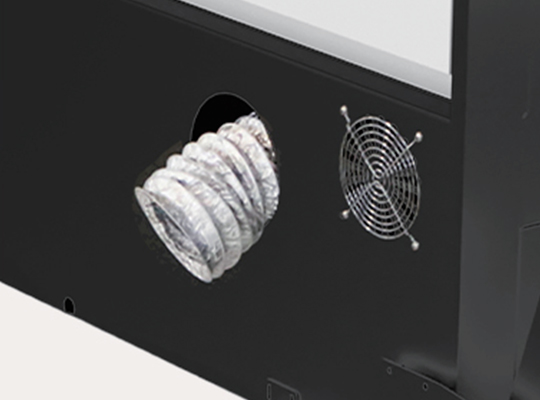

Air purification system

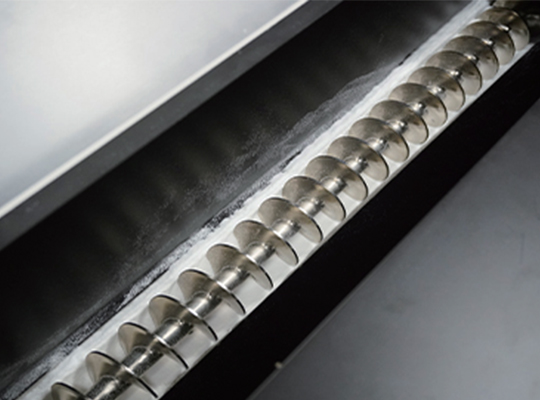

Automatic powder shaker with powder circle utilization function
| Model | KTM-B43 6-head DTF powder shaker with automatic powder return and built-in smoke purifier |
| Product name | 6-HEAD DTF POWDER SHAKER WITH AUTOMATIC POWDER RETURN AND BUILT-IN SMOKE PURIFIER |
| Rated voltage | AC220 V, 50/60Hz |
| Rated current | 10-20 A |
| Automation level | Automatic |
| Compatible media | PET film |
| Weight | Net weight: 285 kg Gross weight: 357 kg |
| Drying tunnel | 100 cm |
| Heating bulbs | 11 pcs |
| Applicable industry | Clothing stores, printing shops, garment factories, traders and processing plants, etc |
| Operating ambient temperature | 18 °C-28 °C |
| Working ambient humidity | 40%-80% |
| Core component | Main control board, motor, intelligent thermostat and display |
| Size (L*W*H) | Powder shaking machine size: 2680 × 1050 × 1150 mm(L*W*H) Packing size: 2080 × 1000 × 1190 mm(L*W*H) |
Step1 Design
Step 2 Print the pattern on film
Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: Yes. Automatic powder shaking and powder recirculation help reduce powder waste.
A: It has an approximately 100 cm drying tunnel, 11 heating tubes, and rear heating.
A: Dual-row cooling fans, a Teflon mesh belt, and an intelligent take-up system improve cooling efficiency and help reduce sticking and wrinkles.
A: Yes. The built-in fume purifier uses oil-fume separation and dual filtration to improve the production environment.
A: The machine measures approximately 2680 × 1050 × 1150 mm. The recommended temperature is 18-28°C with 40%-80% humidity.
