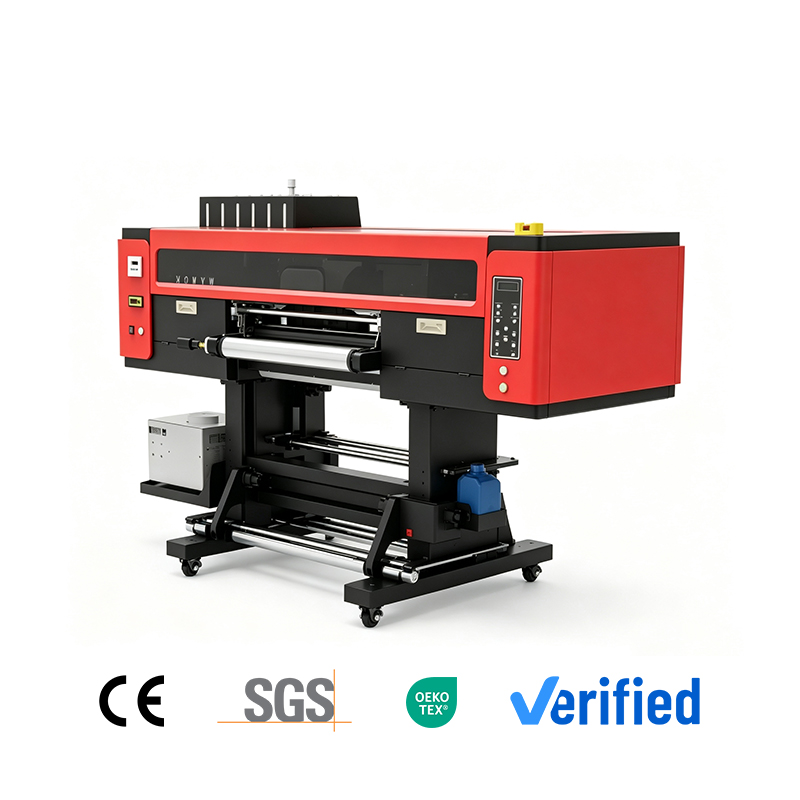

High-speed 3-head 60cm UV crystal label printer with Hoson board, automatic rewinding system, and stable printing performance for UV A+B film production.
Features
1.Printing width: 620mm
2.Print head: EPSON I3200 U1*3
3.Board system: HOSON board
Advantages
1.The main body is made of cold-rolled steel plates, with aluminum alloy parts and an acrylic cover.
2.Equipped with high-precision silent guide rails.
3.Equipped with an automatic material unwinding and rewinding system.
4.Equipped with a carriage anti-collision function.
Benefits
1.Stable structure. The acrylic cover prevents ink splatter, blocks dust, and keeps the printing process clearly visible.
2.Smooth printing operation with reduced working noise.
3.Automatically feeds and rewinds the film material, improving production efficiency.
4.Protects the printhead and prevents accidental damage.
5.The print quality is fine and aesthetically pleasing, with good gloss and scratch resistance.

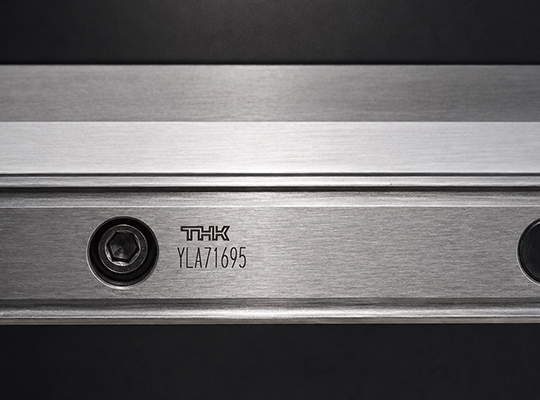

THK High precision

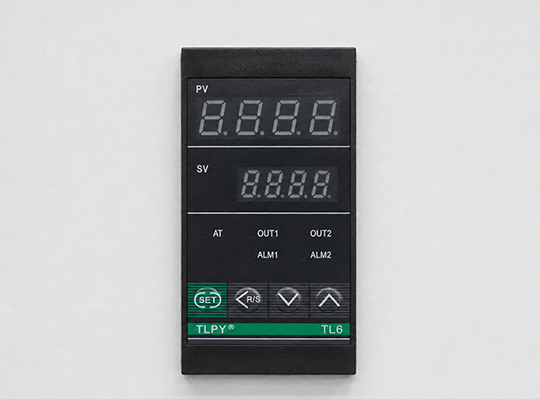

Constant temperature

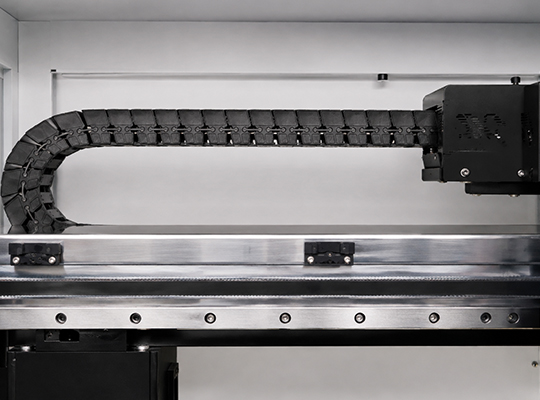

Noise cable carrier

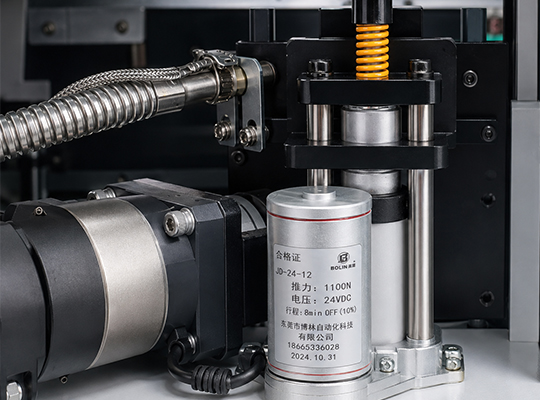

Electric linear actuator
| Model | KTM-A11-C3 |
| Product name | 3-HEAD 60 CM UV CRYSTAL LABEL PRINTER |
| Print size | 620mm |
| Printhead | I3200-U1 / I1600-U1 (3H) |
| Printing Speed | 4pass 9m²/h, 6pass 6m²/h, 8pass 3.5m²/h |
| Mainboard | Hoson |
| Medium Type | UV crystal label AB Film |
| Special Features | Anti-hitting device; Rubber roller heating + adjustable electric pressure bar; Automatic material rewinding and unwinding system |
| Power | AC220/110±10%, 50HZ-60HZ, 3000W |
| Weight/Packing Size | N.W.:180kg / G.W.:200kg / 1740*630*1440 mm / 2030*860*690 mm |
Computer Selection

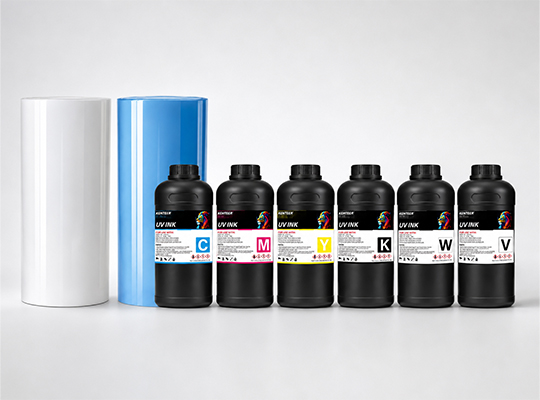

Prepare the Required Consumables

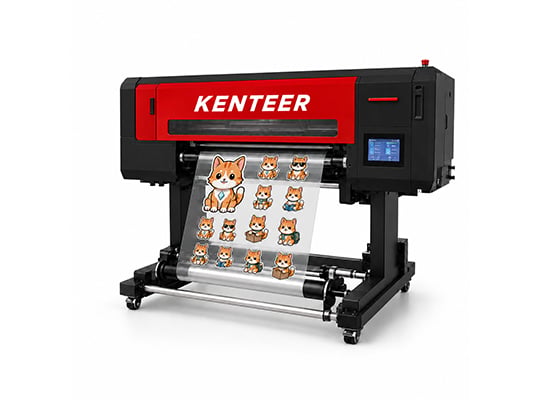

Printing on A Film
Uncover the Transfer Paste
Paste and Uncover the Transfer
Finish
Wooden decorative art
Transparent phone case
Stainless steel cutlery
Clear glass cup
Ceramic tile
Aluminum beverage can
A. Its specified maximum printing width is 620 mm. Buyers should select film width and job layout within this usable range.
A. The catalog specifies three Epson I3200 U1 printheads. This configuration should be matched with the correct ink, waveform, board settings, and maintenance parts.
A. The listed control configuration is a HOSON board; the source worksheet does not specify a bundled RIP package. Confirm the final software version, license, and operating-system compatibility before shipment.
A. High-precision silent guide rails, automatic material unwinding and rewinding, an acrylic protective cover, and carriage anti-collision are specified. These functions support stable production and help reduce avoidable printhead or material damage.
A. Provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and the materials to be used. This allows the final machine package to be confirmed accurately.
