Features
1.Print width: 350*450mm(Small), 490*590mm(Large), 600*800mm(Extra Large)
2.Print head: I3200*4/I3200*6
3.Board/RIP system: BetterPrinter/SPIDER RIP (Standard), RIIN-Tshi (Optional)
Advantages
1. Enclosed all-aluminum alloy table support ensures platform stability.
2. X-axis utilizes silent linear guide rails.
3. Features stroke protection, printhead lift protection, and instant protection during printing.
4. Printhead maintenance and cleaning employ an integrated lifting ink stack, featuring fully automatic cleaning and scraping.
Benefits
1. Ensures precise print registration.
2. Enables smooth printing and reduces noise during operation.
3. Effectively protects the printheads and helps prevent accidental damage.
4. Prevents ink from solidifying and clogging the printhead, thereby extending its service life.

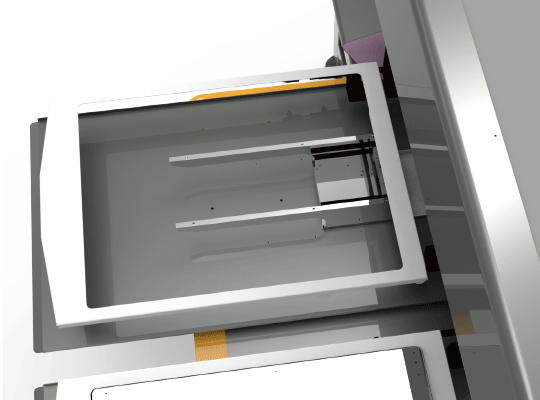

Enclosed All-Aluminum Alloy Tabletop Support

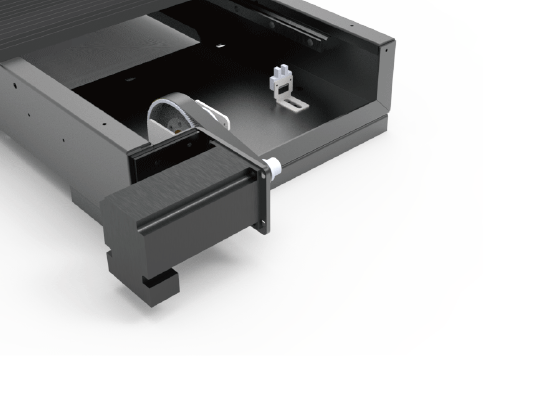

Stepper Drive System and Dual Guide Rail

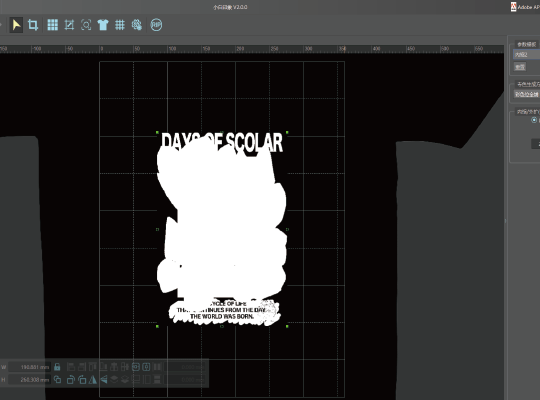

XBYX Software White Channel Generation

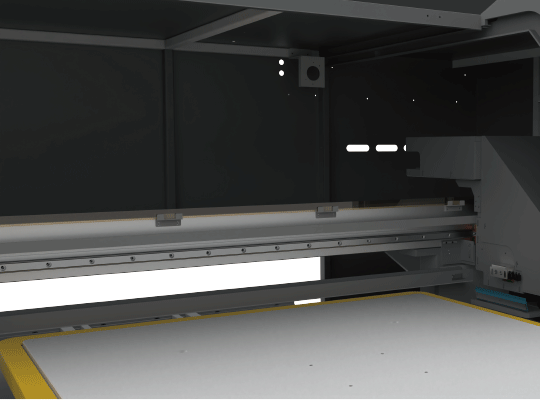

X-Axis Silent Linear Guide Rail
| Printhead Configuration | EPSON I3200-A1*4 | EPSON I3200-A1*6 |
| Ink Configuration | C-M-Y-K/C-M-Y-K-O-R-G-B+W | C-M-Y-K/C-M-Y-K-O-R-G-B/C-M-Y-K-O-R-G-B-FM-FY-FR-FG+W |
| High Speed Mode Capacity (CMYK Mode) | 360*2400 DPI / 4pass-0.6min/PCS (A3 Size) | 720*1800 DPI / 2pass-0.6min/PCS (A3 Size) |
| Production Mode Capacity (CMYK Mode) | 720*1800 DPI / 6pass-1min/PCS (A3 Size) | 360*5400 DPI / 3pass-0.9min/PCS (A3 Size) |
| Precision Mode Capacity (CMYK Mode) | 720*2400 DPI / 8pass-2min/PCS (A3 Size) | 720*3600 DPI / 4pass-1.2min/PCS (A3 Size) |
| High Speed Mode Capacity (8-Color Mode) | 360*2400 DPI / 4pass-1min/PCS (A3 Size) | 360*1800 DPI / 2pass-0.6min/PCS (A3 Size) |
| Production Mode Capacity (8-Color Mode) | 720*1800 DPI / 6pass-2min/PCS (A3 Size) | 720*1800 DPI / 4pass-1.2min/PCS (A3 Size) |
| Precision Mode Capacity (8-Color Mode) | 720*2400 DPI / 8pass-3.5min/PCS (A3 Size) | 720*3600 DPI / 8pass-2min/PCS (A3 Size) |
| High Speed Mode Capacity (12-Color Mode) | / | 360*2400 DPI / 4pass-1.5min/PCS (A3 Size) |
| Production Mode Capacity (12-Color Mode) | / | 720*1800 DPI / 6pass-2min/PCS (A3 Size) |
| Precision Mode Capacity (12-Color Mode) | / | 720*2400 DPI / 8pass-3.5min/PCS (A3 Size) |
| Suitable For | 100% pure cotton or fabrics with high cotton content, ready-to-wear garments, linen, denim, hoodies, etc. | |
| Board/RIP Software | BetterPrinter/SPIDER RIP (Standard), RIIN-Tshi (Optional) | |
| Printhead To Media Height | Adjustable from 3mm to 30mm | |
| Optimal Spray Height | 3mm | |
| Printhead Maintenance And Cleaning | Maintenance-free integrated lifting ink stack, fully automatic cleaning, automatic scraping | |
| Ink System | Siphon positive and negative pressure ink supply system | |
| Ink Barrel Volume | 1500ml | |
| Working Environment | Temperature: 20-28°C (prefer lower); Humidity: 45%-65% (prefer higher) | |
| Alarm System | Stroke protection, spray lift protection, instant protection in printing | |
| Print Width | 350*450mm (Small), 490*590mm (Large), 600*800mm (Extra Large) | |
| Platen Size | 360*460mm (Small), 500*600mm (Large), 650*850mm (Extra Large) | |
| Overall Machine Power | 1000W | |
| Dimensions / Weight | Occupancy: 2700*1850*1800mm; Pack: 2830*2020*1950mm; Net weight: 520kg; Gross weight: 610kg | |
| Power Requirements | Two phases 220V±5% 50Hz/60Hz 8A | |
| PC Configuration Module | Windows 7, 8, 10 64-bit Professional Edition; 240G or above SSD; 16G dual-channel memory; 2400Hz or above frequency CPU; 2G or above independent video memory; Intel Core i7 processor, 2.8GHz or above recommended; USB 3.0 high-speed interface. | |

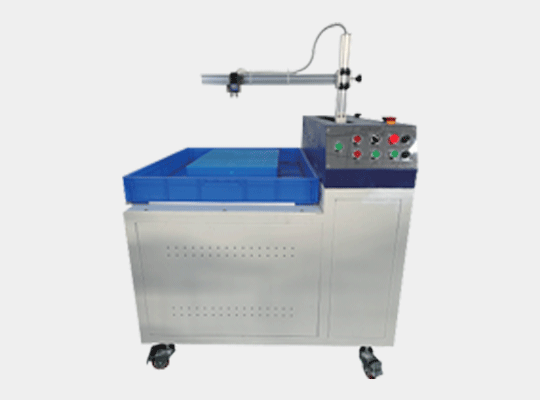

Spraying

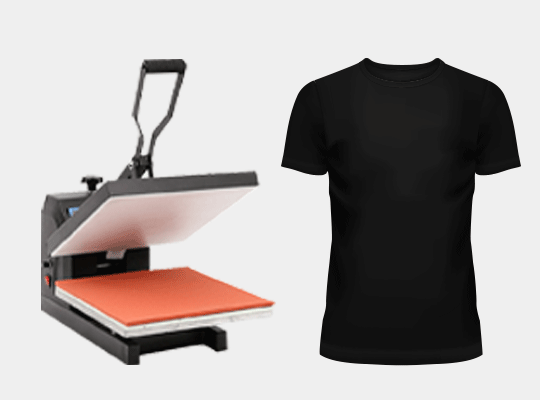

Heat Press T-shirt

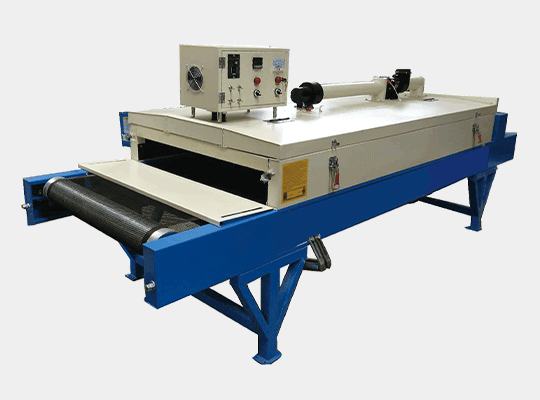

Drying and Fixing

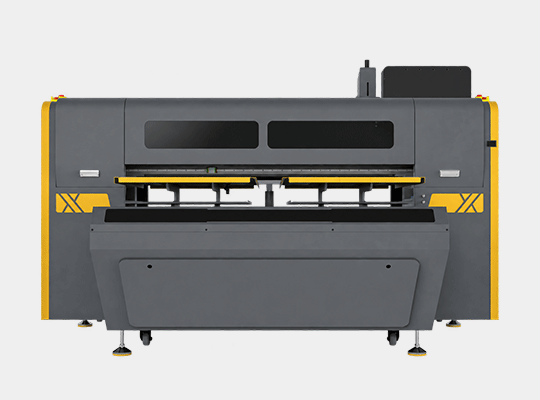

Printer Printing
Printed T-shirt
T-shirt
Hoodie
Jacket
Cap
Pillow
Canvas Bag

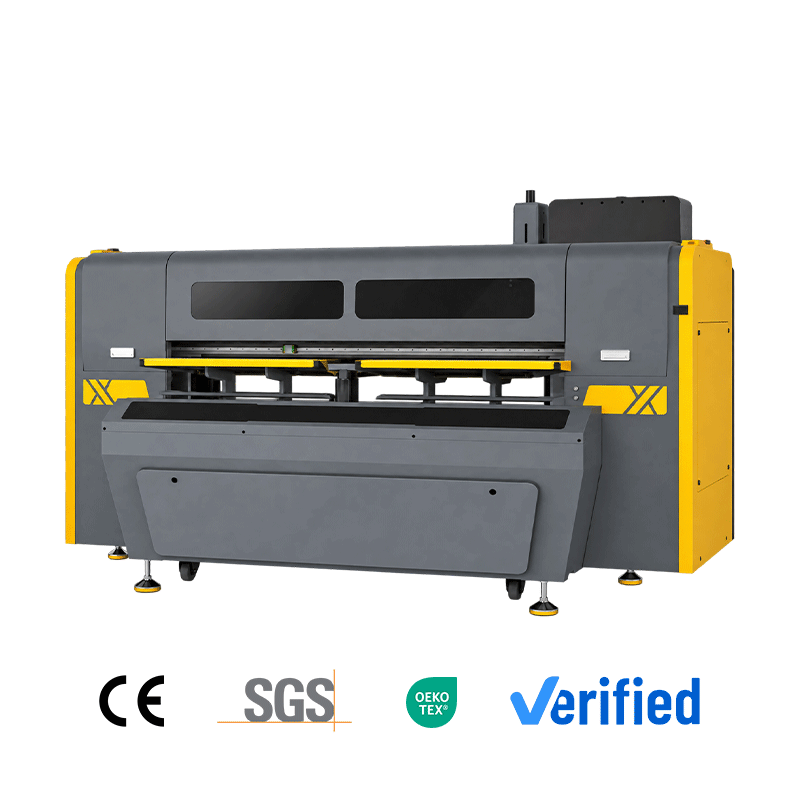

A. The KTM-A43N is a standard dual-station DTG printer for direct printing on cotton-rich garments and products such as T-shirts, hoodies, denim, linen, caps, pillows and canvas bags.
A. The catalog lists 350*450mm Small, 490*590mm Large and 600*800mm Extra Large print widths, with matching platen sizes of 360*460mm, 500*600mm and 650*850mm.
A. The machine supports EPSON I3200-A1*4 and EPSON I3200-A1*6 configurations. The available ink configuration and production capacity depend on the selected printhead setup.
A. BetterPrinter/SPIDER RIP is the standard board/RIP system, while RIIN-Tshi is listed as an optional solution.
A. It includes stroke protection, printhead lift protection, instant protection during printing, and an integrated lifting ink stack with fully automatic cleaning and scraping.
A. The catalog lists 20-28°C working temperature, 45%-65% humidity, overall machine power of 1000W, and two-phase 220V±5% at 50Hz/60Hz and 8A.
