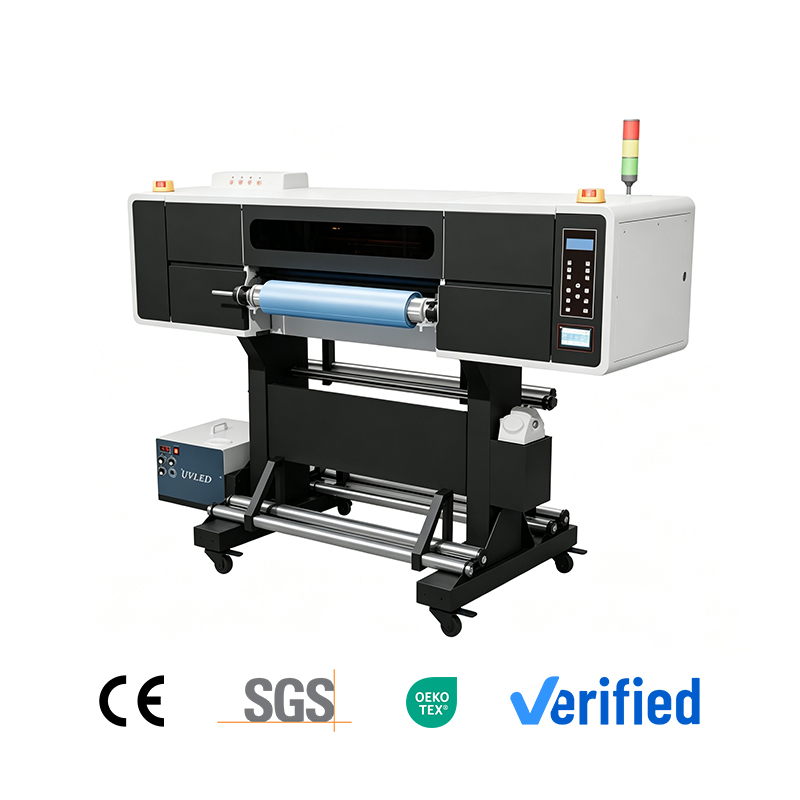

4-head 60 cm UV DTF printer with HOSON board, PhotoPRINT RIP, alarm indicators, carriage anti-collision, high-precision silent guide rails, and 3-in-1 label printing flexibility.
Features
1. Printing width: 600mm
2. Print head: I3200U*4
3. Board system: HOSON board
4. RIP system: PhotoPRINT
Advantages
1. The housing is mainly made of cold-rolled steel plate, with aluminum alloy used in certain parts.
2. Equipped with alarm indicator lights.
3. Features carriage anti-collision function.
4. Adopts high-precision silent guide rails.
Benefits
1. Ensures the overall frame is stable, highly robust, and resistant to deformation.
2. Provides real-time status updates to prevent material waste due to equipment malfunctions.
3. Protects the printhead from accidental damage.
4. Provides smooth operation and low noise.
5. Offers wide material compatibility and high flexibility, enabling jelly labels, 3D labels, and imitation embroidery printing.

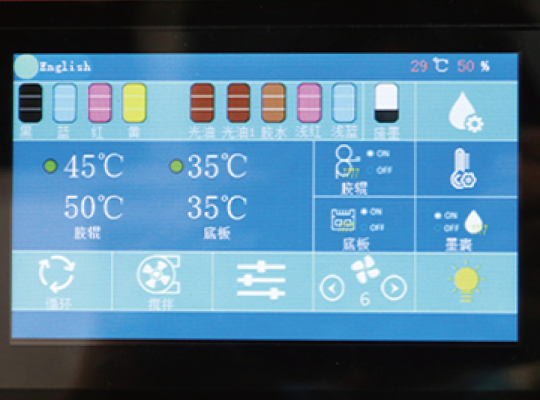

Heater

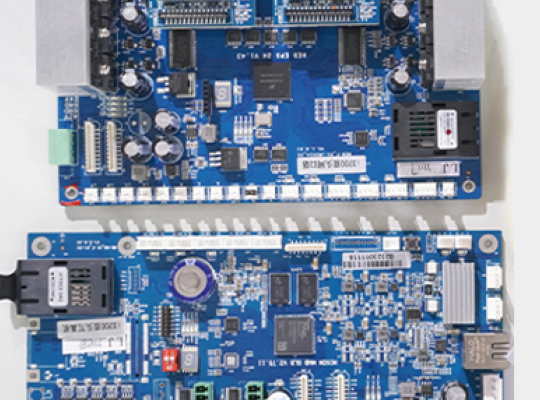

Hoson boards

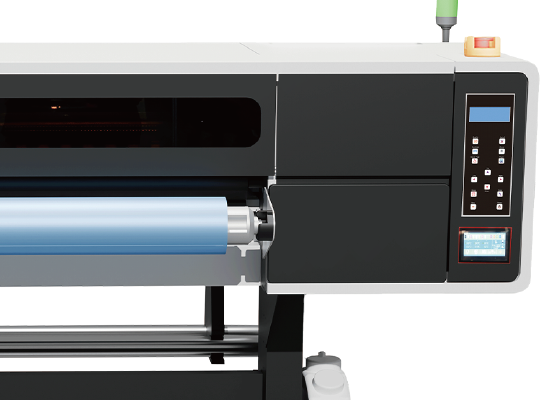

Ink bucket

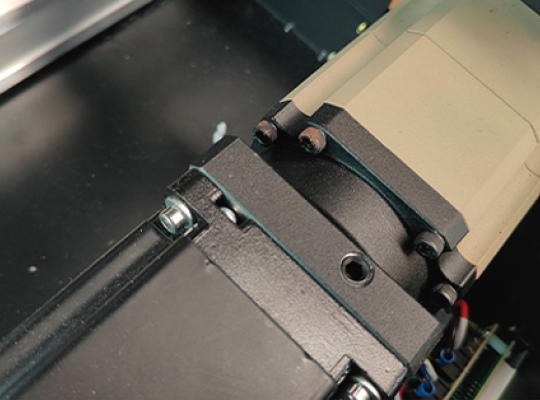

Retarder
| Model | KTM-A117-1 |
| Product name | 4-HEAD 60 CM UV DTF PRINTER |
| Printing width | 600 mm |
| Printhead | I3200U1 |
| Printhead quantity | 4 pcs |
| Board system | HOSON |
| Printing resolution | 2400 DPI |
| Printing speed | 8-pass: 2.5-3 m²/h |
| Printing medium | TPU / PU |
| Ink | UV ink; capacity: 1.8 L with liquid-level alarm |
| Color | CMYK+W+Varnish |
| RIP software | PhotoPRINT |
| Operating system | Windows 10 or above |
| Image format | TIFF, JPEG, Bitmap, EPS, PDF, PNG |
| Operating environment | Temperature: 25-30 °C; humidity: 50%-75% |
| Power | 50/60 Hz, 220 V; 2050 W |
| Interface | Gigabit network card |
Computer Selection

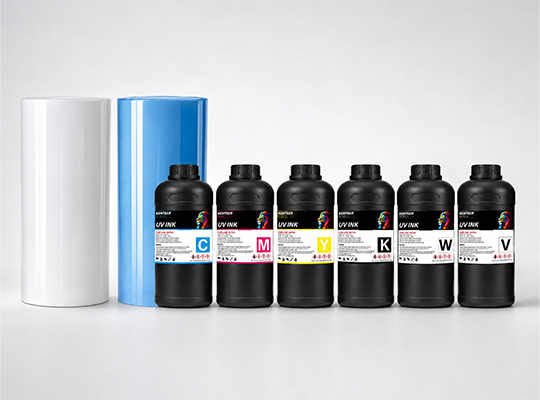

Prepare the Required Consumables

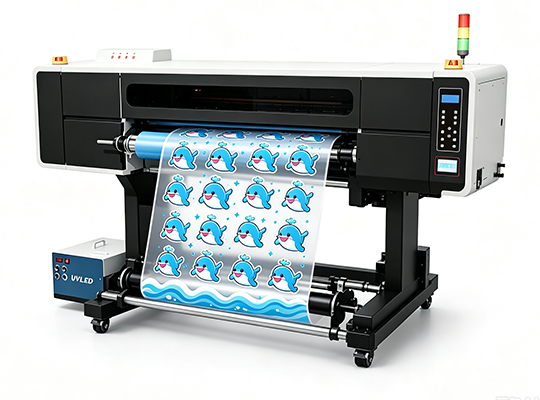

Printing on A Film
Uncover the Transfer Paste
Paste and Uncover the Transfer

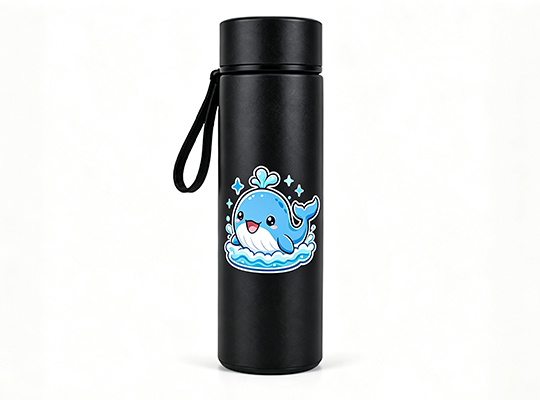

Finish
Wooden Decorative Art
Transparent Phone Case
Stainless Steel Cutlery
Clear Glass Cup
Ceramic Tile
Aluminum Beverage Can
A. The maximum printing width is 600 mm. The film width and job layout should be selected within the usable printing range.
A. The KTM-A117-1 is equipped with four I3200U printheads. The printheads should be used with the specified ink, waveform, board settings, and maintenance parts.
A. The machine uses a HOSON board and PhotoPRINT RIP software. The final software version, license, and operating-system compatibility should be confirmed before shipment.
A. The machine includes alarm indicator lights, carriage anti-collision protection, and high-precision silent guide rails on a stable cold-rolled-steel frame. These features support stable production and help reduce avoidable printhead or material damage.
A. Please provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and materials to be used. This information helps confirm the final machine package accurately.
