Features
1.Maximum printing width: 1800mm
2.Print head: I3200E*2, I1600E*2, F1080*2
3.Board system: HOSON board
4.RIP system: RIIN
Advantages
1. The main structure of the machine is made of cold-rolled steel, with some components made of aluminum alloy, and high-precision CNC machined aluminum profile beams.
2. Equipped with a three-stage drying system and an intelligent temperature control panel.
3. Features printhead anti-collision function.
Benefits
1. Ensures stable performance of the overall frame with a simple and elegant design.
2. Excellent heating and drying performance, improving production efficiency.
3. Effectively protects the printhead, reducing accidental damage and repair costs.

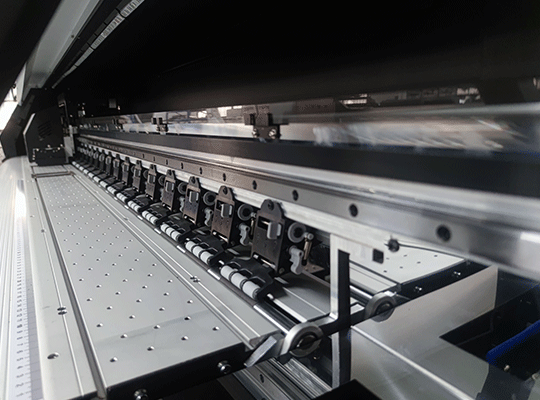

High Precision Aluminum Profile

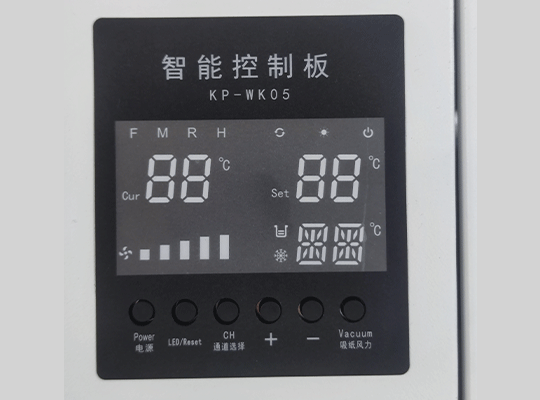

Intelligent Temperature Control

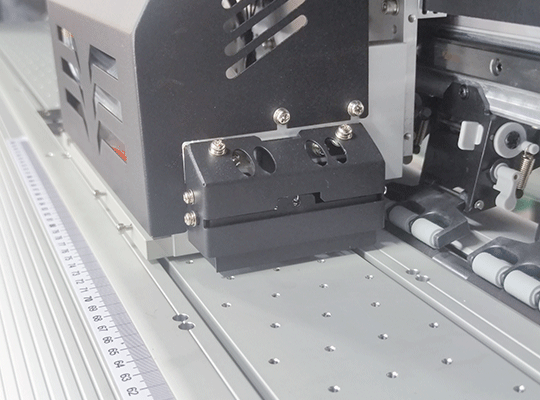

Nozzle Anti Collision

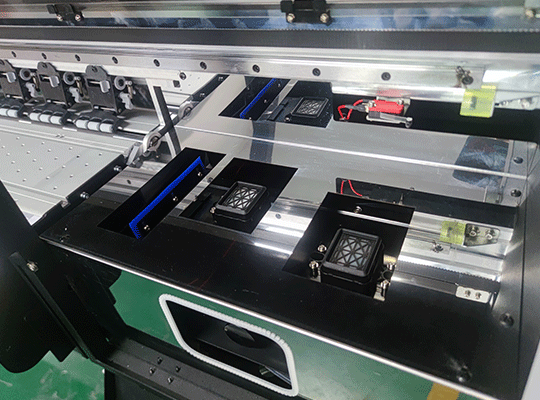

High Precision Ink Suction Station

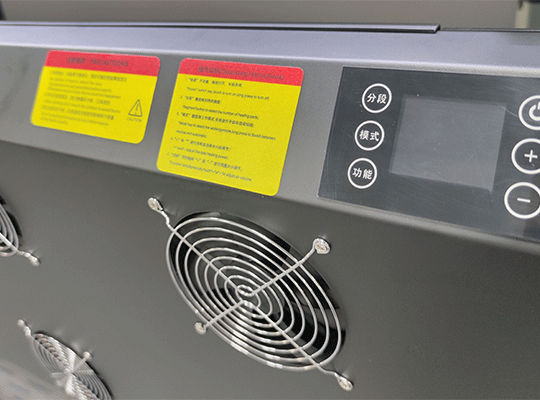

Three-stage Drying System
| Model | KTM-A33N | ||
| Print Size | 1800mm | ||
| Printhead | i3200 | i1600 | |
| Print head | 4pass | 39㎡/h | 18㎡/h |
| 6pass | 32㎡/h | 12㎡/h | |
| 8pass | 22㎡/h | 10㎡/h | |
| Operating Environment | Normal Operating Temperature: 22-28°C Relative Humidity: 40%-60% | ||
| Power | AC220/110±10, 50HZ~60HZ, 3500W | ||
| Weight/Packing size | N.W.: 240 kg / G.W.: 260 kg / 2980*760*1470 mm / 3200*760*860 mm | ||
Adhesive backed PP
Banner cloth
Display stand
Hanging a painting
Outdoor billboards
Poster

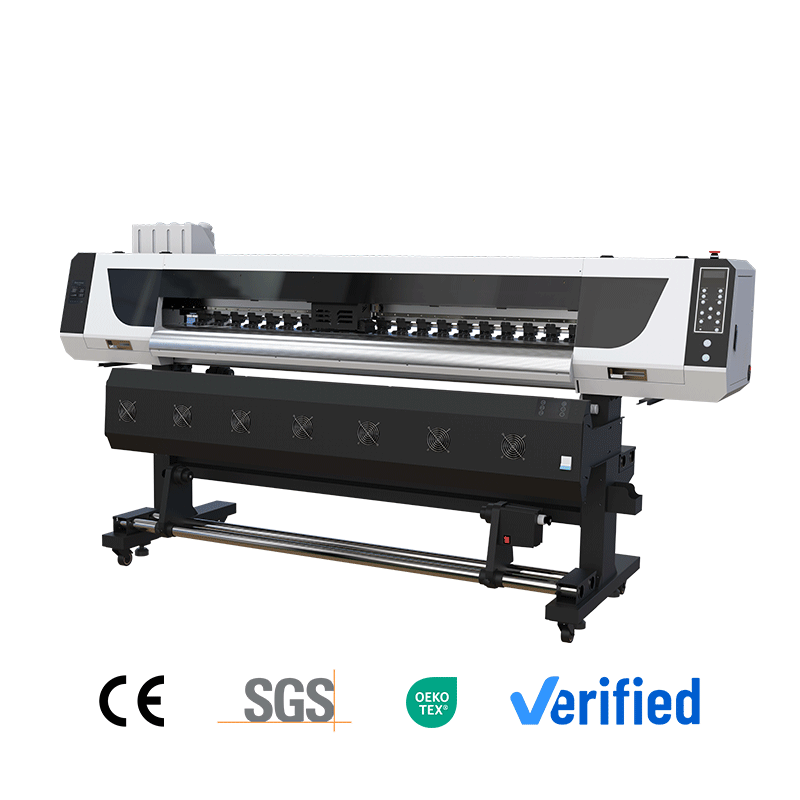

A. The KTM-A33N is a 1.8m dual-head eco-solvent printer for wide-format advertising, display graphics, posters, banners, adhesive-backed PP and outdoor billboards.
A. The catalog specifies a maximum printing width of 1800mm.
A. The catalog lists I3200E*2, I1600E*2 and F1080*2 configurations. Final configuration should be confirmed according to production speed, ink system and quotation requirements.
A. The specified board system is HOSON board and the RIP system is RIIN.
A. The cold-rolled steel frame, aluminum alloy components, CNC machined aluminum profile beam, three-stage drying system, intelligent temperature control panel and printhead anti-collision function support stable printing and reduce avoidable printhead damage.
A. The catalog lists AC220/110±10, 50HZ~60HZ, 3500W, with N.W. 240 kg, G.W. 260 kg, machine size 2980*760*1470 mm and packing size 3200*760*860 mm.
