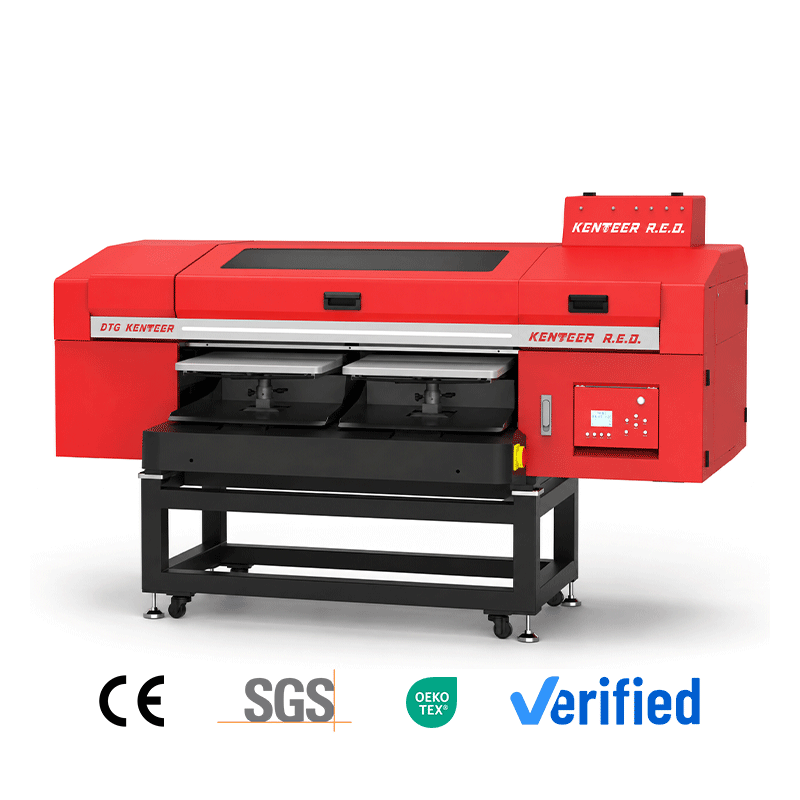

High-end dual-station DTG printer with four KS1680H printheads, up to 950 × 600 mm print range, and white-ink circulation.
Features
1. Print range: 450mm*600mm, 372mm*420mm, 255mm*305mm, 950mm*600mm
2. Print head: KS1680H*4
3. Print height: 0-30 mm
Advantages
1. Silent drag chain.
2. Fully enclosed safety cover.
3. Intelligent infrared sensing.
4. White ink circulation system and adjustable ink stack.
5. High-drop printheads.
6. Water circulation cooling system.
Benefits
1. Quiet, fast operation with reduced noise disturbance.
2. Helps keep dust away while allowing the printing status to be viewed.
3. Helps prevent printhead scratching.
4. Helps reduce clogging from white-ink sedimentation, keeps the nozzle moist, and protects the printhead.
5. Produces vibrant colors and supports high-drop printing.
6. Dissipates printhead heat for improved operating stability.

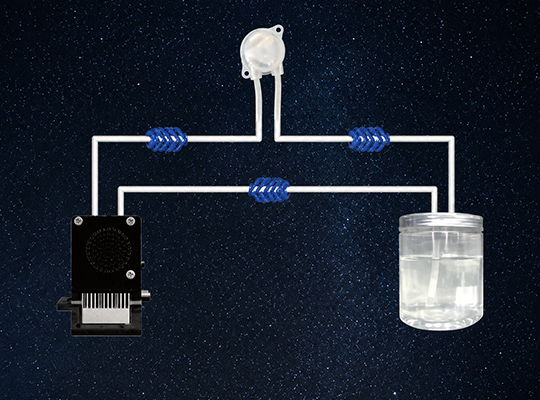

Water Circulation Cooling System

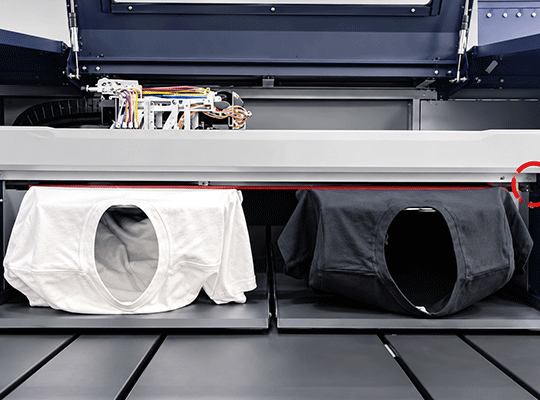

Intelligent Infrared Sensing

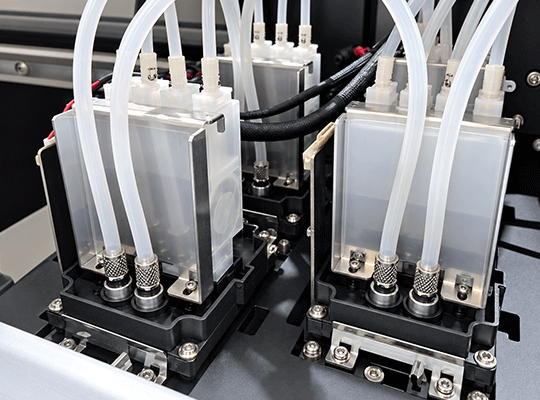

High-Pressure Spray Head

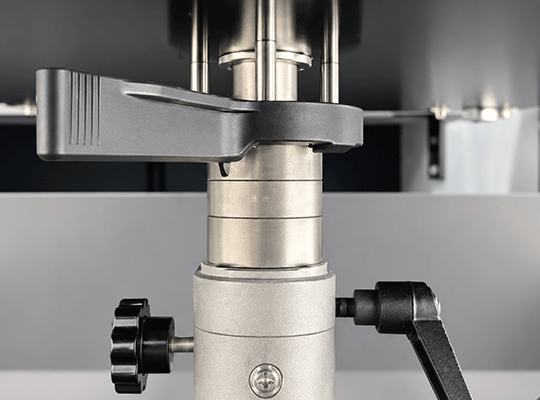

Adjustable Lifting Group
| Device Model | KTM-A72 |
| Nozzle Model | KS1680H |
| Number Of Nozzles | 1680 |
| Number Of Printheads | 4 |
| Printhead Printing Size | 35.56 mm |
| Nozzle Resolution | 600 dpi (2 colors, 1 color); 300 dpi (4 colors) |
| Number Of Colors | 4 channels, 4 colors |
| Print Range | 450 mm x 600 mm; 372 mm x 420 mm; 255 mm x 305 mm; 950 mm x 600 mm |
| Printing Thickness | 0-30 mm |
| Printing Accuracy | 1200 x 1200 dpi; 1200 x 1800 dpi |
| Print Speed | 40 s / A3 image |
| Printing Method | White and color |
| Print Orientation | Unidirectional and bidirectional |
| Printing Software | DevstudioRip8 |
| Printing Guarantee Scope | Temperature: 18-30 C; humidity: 45-65% (non-condensing) |
| Monitor Resolution | Not less than XGA (1024 x 768) |
| Graphic Format | Tiff / Jpg / Eps / Ai / Ps / Png / Cdr / Pdf |
| Ink Type | Environmentally friendly textile coating ink |
| Voltage Requirements | AC220V / 60Hz +/- 1Hz |
| Equipment Power | 300 W |
| Equipment Dimensions | 1900 mm x 1350 mm x 1314 mm |
| Equipment Weight | Approximately 258 kg (including base frame) |

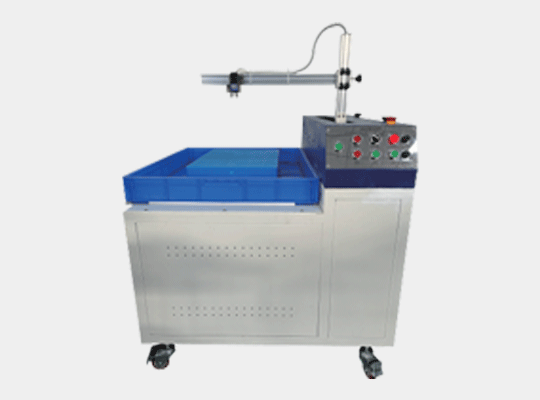

Spraying Machine

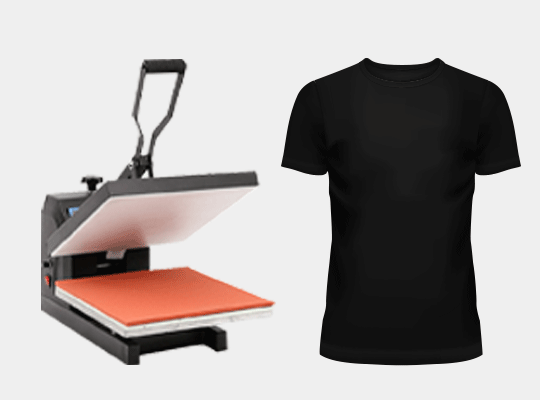

Heat Press T-shirt

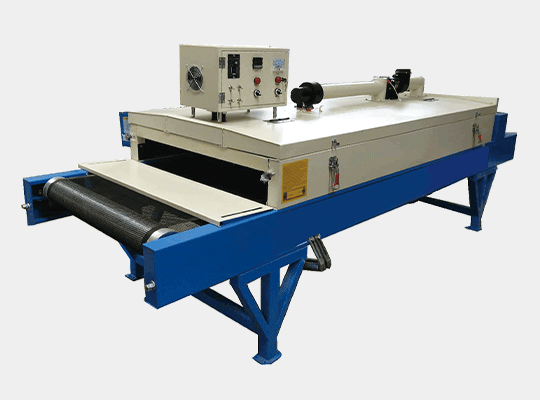

Drying and Fixing

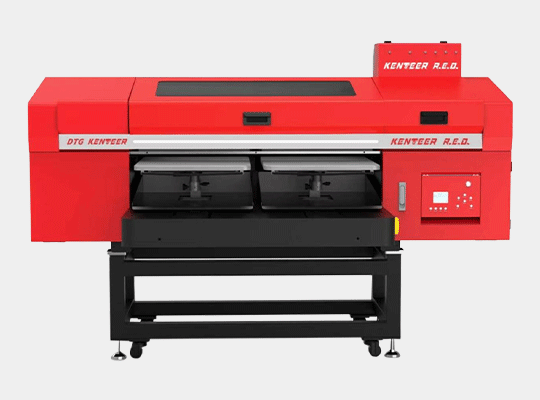

Printer Printing
Printed T-shirt
T-shirt
Sweatpants
Pillow
Jeans
Hoodie
Canvas Bag
A. The catalog lists 450 x 600 mm, 372 x 420 mm, 255 x 305 mm, and 950 x 600 mm print ranges.
A. The specified configuration is four KS1680H printheads. The catalog lists 1,680 nozzles and a 35.56 mm printhead printing size.
A. The listed printing thickness is 0-30 mm.
A. The catalog lists a silent drag chain, fully enclosed safety cover, intelligent infrared sensing, white-ink circulation with an adjustable ink stack, high-drop printheads, and water-circulation cooling.
A. The listed printing software is DevstudioRip8. The catalog specifies AC220V / 60Hz +/- 1Hz, 300 W equipment power, and a printing environment of 18-30 C with 45-65% humidity (non-condensing).
