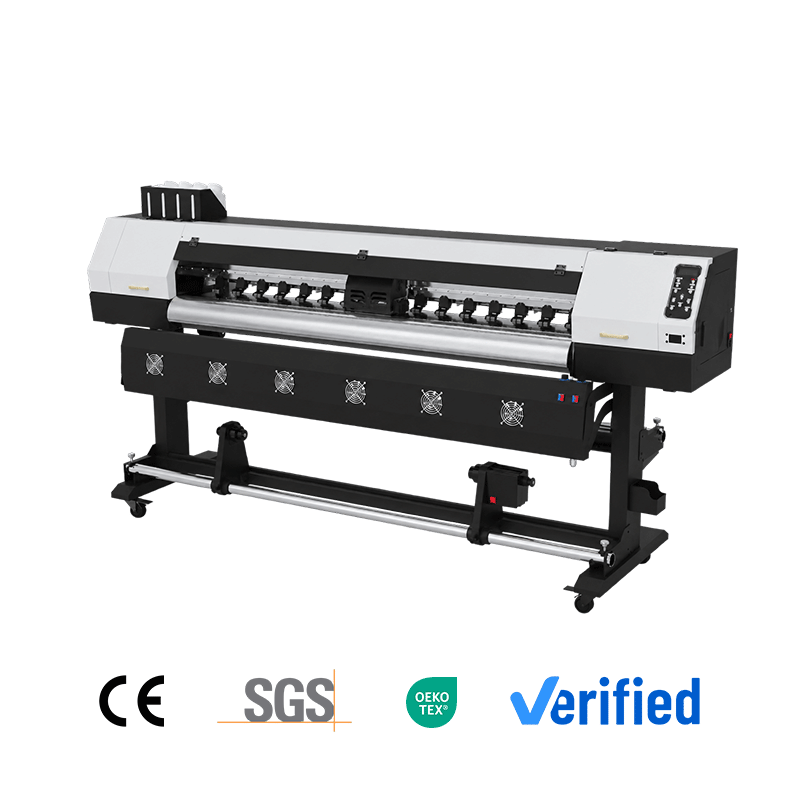

1.8m dual-head eco-solvent printer with HOSON board, RIIN RIP, intelligent temperature control, drying system and printhead protection.
Features
1.Maximum printing width: 1800mm
2.Print head: I3200E*2
3.Board system: HOSON board
4.RIP system: RIIN
Advantages
1. Equipped with paper press and adjustable paper rollers.
2. Equipped with intelligent temperature control and drying systems.
3. Equipped with anti-hitting bracket and paper-out alarm.
Benefits
1. Ensures stable performance of the overall frame with a simple and elegant design.
2. Excellent heating and drying performance, improving production efficiency.
3. Effectively protects the printhead, reducing accidental damage and repair costs.

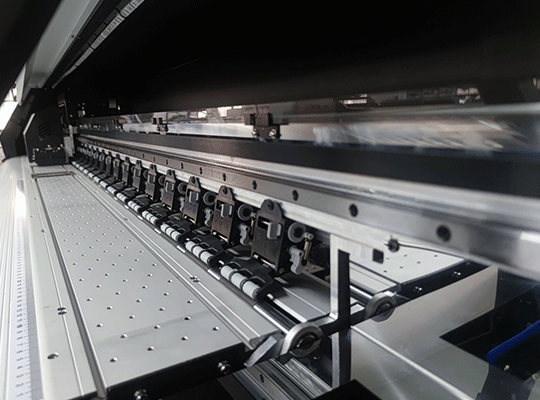

High Precision Aluminum Profile

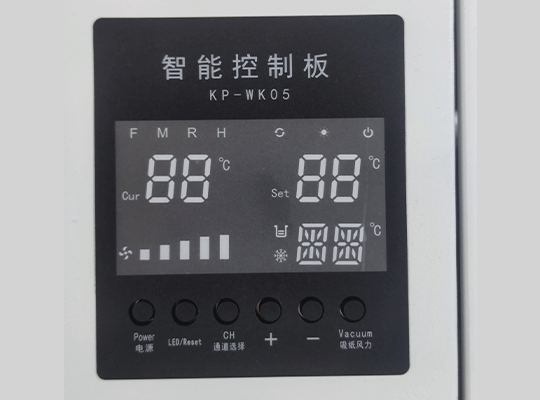

Intelligent Temperature Control

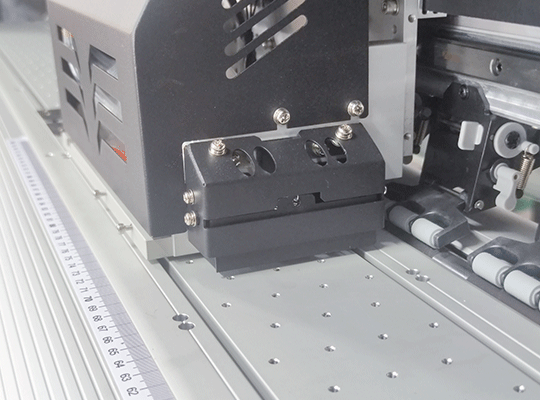

Nozzle Anti Collision

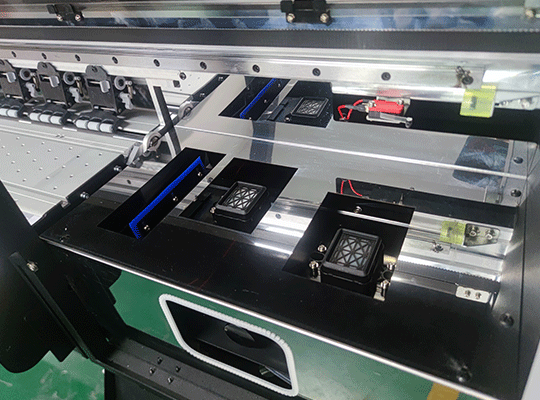

High Precision Ink Suction Station

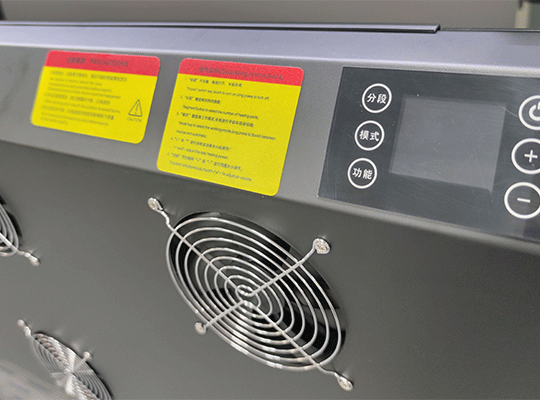

Three-stage Drying System
| Model | KTM-A33 | ||
| Print Size | 1800mm | ||
| Mainboard | Hoson | ||
| Printhead | i3200 | i1600 | |
| Print head | 4pass | 39㎡/h | 18㎡/h |
| 6pass | 32㎡/h | 12㎡/h | |
| 8pass | 22㎡/h | 10㎡/h | |
| Operating Environment | Normal Operating Temperature: 22-28°C Relative Humidity: 40%-60% | ||
| Power | AC220/110±10, 50HZ~60HZ, 3500W | ||
| Weight/Packing size | N.W.: 240 kg / G.W.: 260 kg / 2980*760*1470 mm / 3200*760*860 mm | ||
Exhibition backdrop walls
Hanging banners (shopping malls)
Indoor wall murals
Roll-up display stands
Storefront window decals
Vehicle graphics
A. The KTM-A33 is a 1.8m dual-head eco-solvent printer for wide-format signage, banners, window decals, vehicle graphics, indoor wall murals and exhibition displays.
A. The catalog specifies a maximum printing width of 1800mm.
A. The KTM-A33 uses two I3200E printheads according to the catalog FAB page, with the parameter table also listing speed references for i3200 and i1600 options.
A. The specified board system is HOSON board and the RIP system is RIIN.
A. Paper press rollers, adjustable paper rollers, intelligent temperature control, drying systems, anti-hitting bracket and paper-out alarm help support stable feeding, drying and printhead protection.
A. The catalog lists AC220/110±10, 50HZ~60HZ, 3500W, with N.W. 240 kg, G.W. 260 kg, machine size 2980*760*1470 mm and packing size 3200*760*860 mm.
