Features
1.Maximum printing width: 1900mm.
2.Print head: I3200E*1, I1600E*1, F1080*1
3.Board system: HOSON board.
4.RIP system: Maintop.
Advantages
1. Uses silent guide rails for high precision.
2. Paper shortage alarm.
3. Anti-static paper roller.
4. Carriage anti-collision function.
5. Front and back platform heating, external with up and down dual driving system, fully meet the fast speed printing.
Benefits
1. Ensure the overall frame performance is stable, simple and elegant.
2. Alarm function to avoid invalid printing.
3. Accurate pressure control and smooth paper feeding.
4. Protect the printhead to prevent accidental damage.

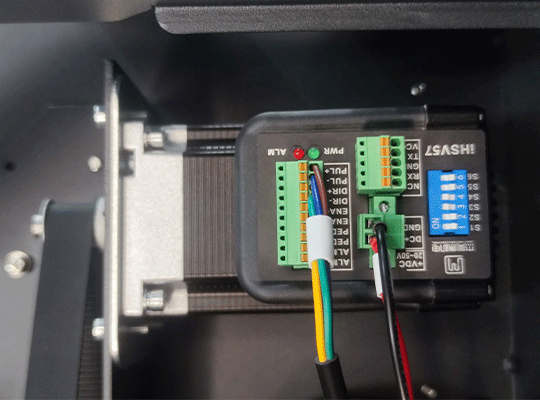

High-power Servo Motor

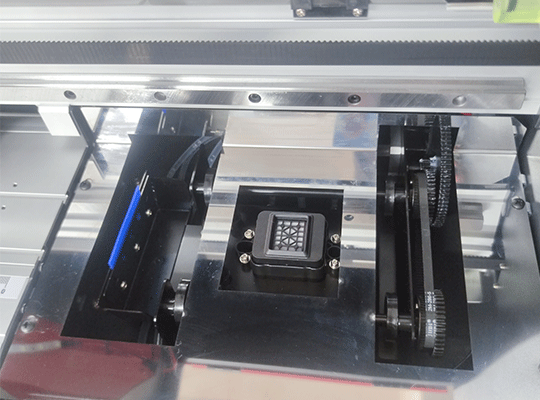

Ink Suction Station

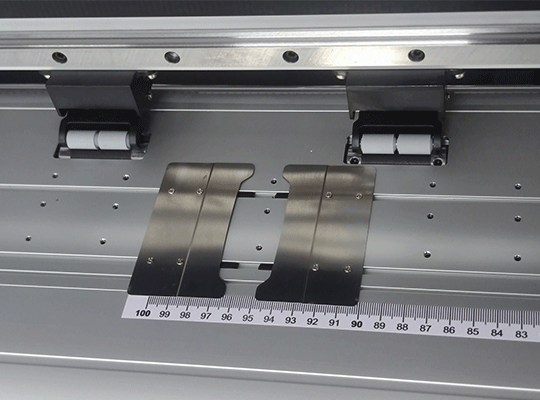

Precision Aluminum Profile

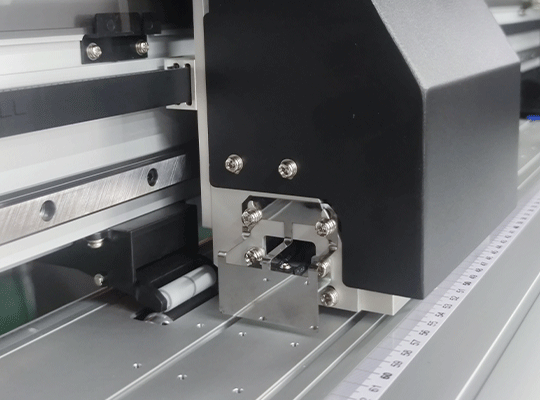

Nozzle Anti Collision

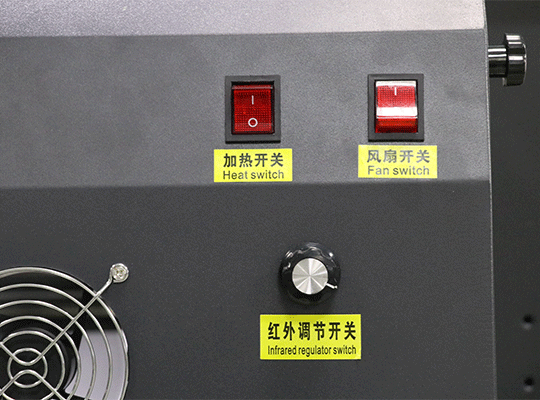

Independent Drying System
| Printhead | F1080 / 3200E / 1600E |
| Print Width | 1900mm |
| Circuit Board System | SUNYUNG board card (Ethernet port) |
| Print Speed | 4PASS: 11㎡/h 6PASS: 6㎡/h 8PASS: 5㎡/h |
| Ink Compatibility | Eco-solvent ink / Water-based ink / Sublimation ink |
| Optional Materials | PP / Lampsheet / Photo paper / Photo cloth / Car sticker / Lamp cloth |
| Printing Software | Maintop |
| Work Environment | Normal operating temperature: 22-28°C; Humidity: 40%-60% |
| Printer Info | Machine size: 2950*750*1280mm Packing size: 3100*700*600mm |
Advertising Posters
Decorative Prints
Fine-art Photography
Retractable Banner Stands
Shopping Mall Lightbox Advertisements
Shopping Mall Wall Graphics

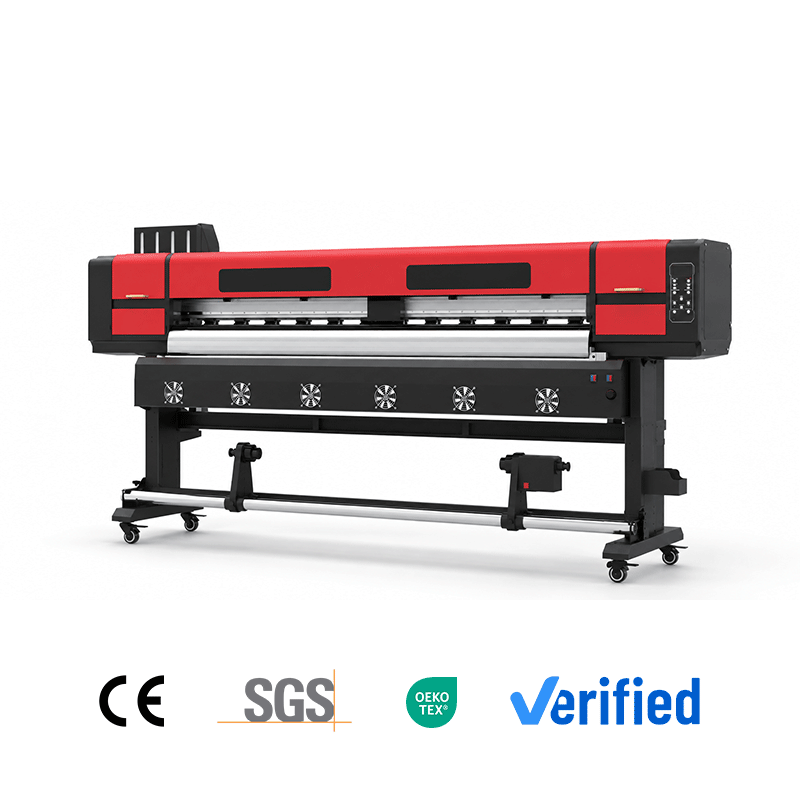

A. The KTM-A30N is a 1.9m single-head eco-solvent printer for advertising posters, decorative prints, fine-art photography, retractable banner stands, lightbox advertisements and wall graphics.
A. The catalog specifies a maximum printing width of 1900mm.
A. The catalog lists I3200E*1, I1600E*1 and F1080*1 printhead options, with the parameter page also listing F1080, 3200E and 1600E.
A. The catalog FAB page lists HOSON board and Maintop RIP, while the parameter page lists SUNYUNG board card with Ethernet port. Confirm final board configuration before quotation or shipment.
A. The catalog lists eco-solvent ink, water-based ink and sublimation ink, with optional materials including PP, lampsheet, photo paper, photo cloth, car sticker and lamp cloth.
A. The catalog lists machine size 2950*750*1280mm and packing size 3100*700*600mm.
