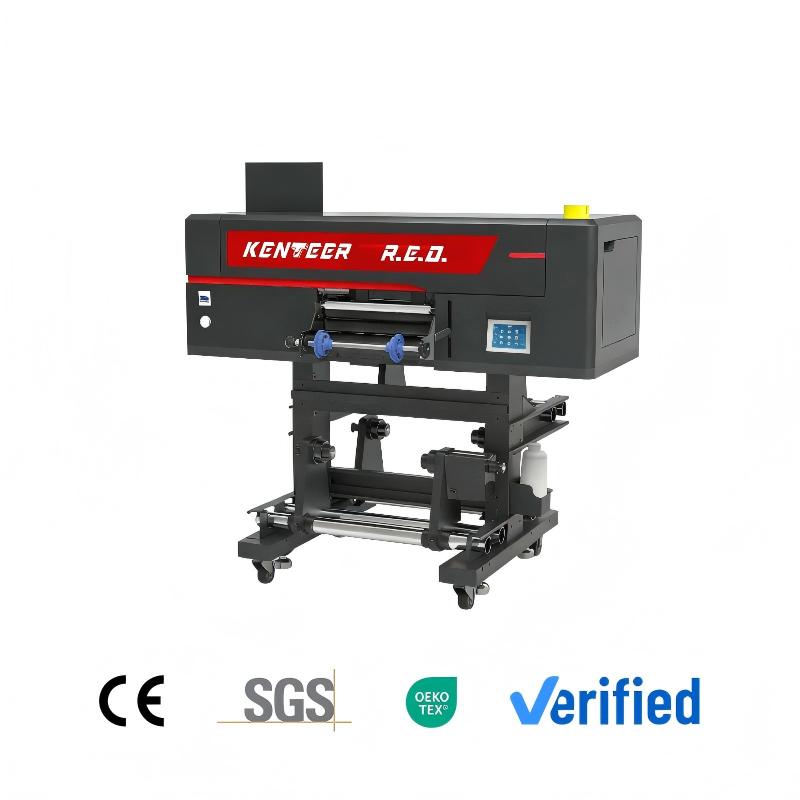

Produce high-quality UV crystal labels with our 30cm UV DTF printer powered by 3 Epson F1080 printheads. Delivers Color+White+Varnish output for glossy, 3D tactile transfers.
Features
1.Maximum printing width: 320mm
2.Print head: F1080*3（KTM-A67-6）
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and an acrylic cover.
2. Equipped with a high-definition touch screen.
3. Features ink shortage alarm and one-button automatic printhead cleaning system.
4. Includes carriage anti-collision function.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Three-head configuration enables efficient printing and is simple and convenient to use.
3. Ensures smooth operation of the ink delivery system.
4. Protects the print head and prevents accidental damage.
5. Prints patterns with vibrant and glossy colors, and is wear-resistant, scratch-resistant, and high-temperature resistant.
Trolley Printhead Anti Collision
Ink Supply System
High Precision Aluminum Plate Lifting Ink Stack
High Power Servo Motor
High Definition Touch Screen
| Model | KTM-A67-6 |
| Product name | 3-HEAD 30 CM UV CRYSTAL LABEL PRINTER |
| Maximum printing width | 320 mm |
| Printhead | F1080 × 3 |
| Board system | Hoson / SY |
| Printing speed | 4-pass: 7 m²/h; 6-pass: 5 m²/h; 8-pass: 3.5 m²/h |
| Other functions | Touch screen; ink shortage alarm; printing platform lighting |
| Data and image interface | USB / FlexiPRINT / RIIN |
| Ink supply | Automatic continuous ink supply system |
| Operating environment | Normal operating temperature: 22-28 °C; relative humidity: 40%-60% |
| Power | AC 220/110 V ±10%; 50-60 Hz; 1800 W |
| Weight/packing size | N.W.: 80 kg; G.W.: 100 kg; machine: 1070 × 610 × 580 mm; packing: 1100 × 455 × 600 mm |
Design

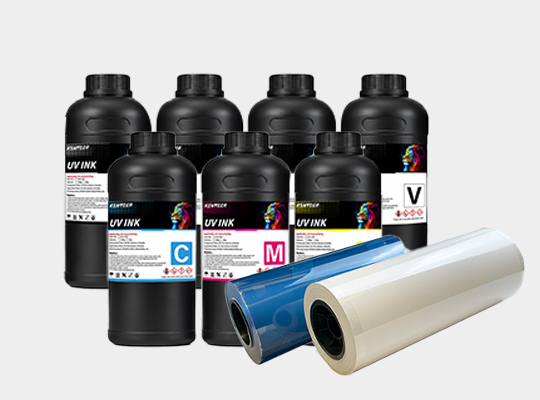

UV ink film

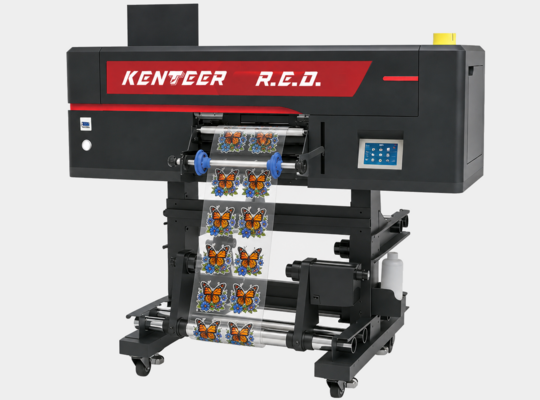

The printer prints the pattern on A film
Uncover the transfer paste
Peel off Film B
Finished product
Plate
Mobile phone case
Insulated cup
Glass
Box
Acrylic
A. Its specified maximum printing width is 320 mm. Buyers should select film width and job layout within this usable range.
A. The catalog specifies three F1080 printheads. This configuration should be matched with the correct ink, waveform, board settings, and maintenance parts.
A. The listed control configuration is a HOSON board with Maintop or RIIN RIP software. Confirm the final software version, license, and operating-system compatibility before shipment.
A. A high-definition touch screen, ink-shortage alarm, one-button automatic printhead cleaning, and carriage anti-collision are specified. These functions support stable production and help reduce avoidable printhead or material damage.
A. Provide the intended printing application, required working width, expected production volume, preferred printhead and RIP configuration, destination power standard, delivery country, and the materials to be used. This allows the final machine package to be confirmed accurately.
