Discover the KTM-A89-2 + KTM-B40 60cm DTF printing bundle. Features a 2-head high-speed DTF printer and an all-in-one powder shaker with a built-in smoke purifier for clean, automated production.
Features
1.Maximum printing width: 620mm
2.Print head: I3200*2
3.Board system: HOSON board
4.RIP system: Maintop/RIIN
Advantages
1. The enclosure is primarily made of cold-rolled steel, with some components in aluminum alloy and full-transparent acrylic side panels.
2. Equipped with white-ink circulation and white-ink stirring systems.
3. Fitted with silent guide rails and a carriage anti-collision function.
4. Includes low-ink alarm and out-of-paper detection.
5. Features a lifting ink stack and print-head base-plate heating.
Benefits
1. Ensures the overall stability of the machine frame and provides a visual display of the working process.
2. Prevents white ink sedimentation and nozzle clogging, ensuring smooth operation of the ink delivery system.
3. Reduces noise during printing, protects the printheads, and prevents accidental damage.
4. Avoids ineffective printing and reduces material waste
5. Ensures smooth ink flow.
Carriage anti collision
Paper pressure roller
Silent energy chain
Board
Aluminum plate lifting ink stack
White ink circulation and agitation system

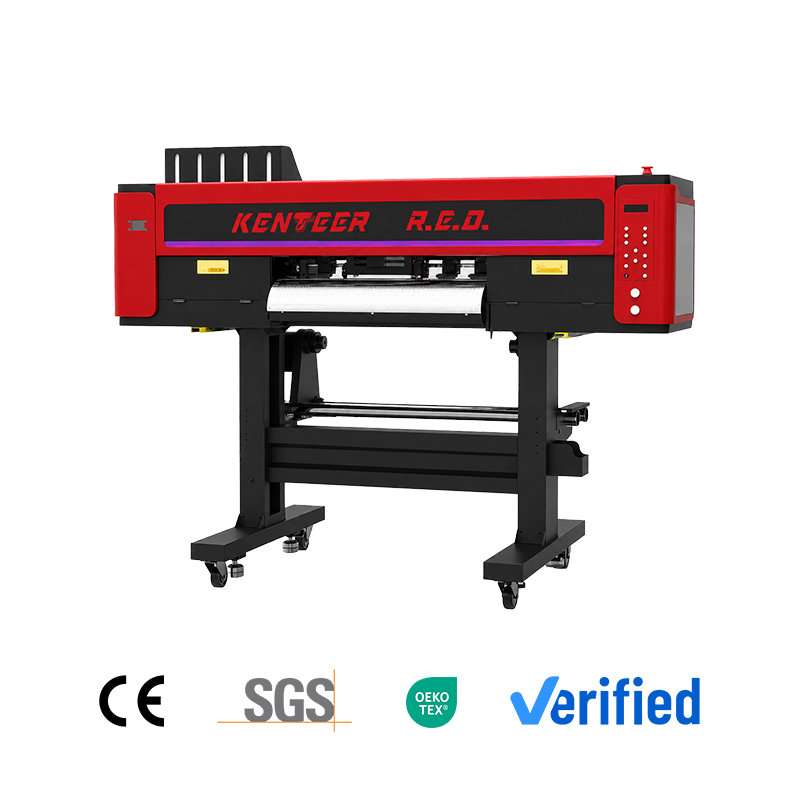

| Model | KTM-A89-2 |
| Product name | 2-HEAD 60 cm DTF PRINTER |
| Print size | 620 mm |
| Printhead | I3200-2H(W+C) |
| Board system | Hoson/ SY(LAN) |
| Printing Speed | 4-pass 15 m²/h; 6-pass 10 m²/h; 8-pass 6 m²/h |
| Operating environment | Normal Operating Temperature: 22-28 °C Relative Humidity: 40%-60% |
| Power | AC220/110±10, 50-60 Hz 1500 W (2H) |
| Weight/Packing Size | N.W.: 200kg/G.W.: 220kg1880 × 610 × 1380 mm /2030 × 860 × 690 mm |
| Model | KTM-B40 |
| Product name | DTF POWDER SHAKER WITH BUILT-IN SMOKE PURIFIER |
| Rated voltage | AC220 V, 50/60Hz |
| Rated current | 10-20 A |
| Applicable media | PET film |
| Weight | Net weight: 285 kg Gross weight : 357 kg |
| Printing size | 600 mm *N |
| Applicable industry | Clothing stores, printing shops, garment factories, traders and processing plants, etc |
| Operating ambient temperature | 18 °C-28 °C |
| Working ambient humidity | 40%-80% |
| Core component | Main control board, motor, intelligent thermostat and display |
| Size (L*W*H) | Powder shaking machine size: 2350 × 1050 × 1150 mm(L*W*H) Packing size: 1880 × 1000 × 1190 mm(L*W*H) |
Features
1.Media width: 600mm
2.Suitable for 2-head printer
3.Integrated powder shaking and drying, with net belt
Advantages
1. Drying tunnel length: 1.14m
2. 9 heating tubes
3. Harmonic vibration powder application for more even powder distribution
4. Back drying function to reduce oil return
Benefits
1. Ensures even drying, reduce water and oil return, and ensure the stability of finished products
2. Built-in fume purifier, oil and fume separation, protecting the environment
3. Touchscreen operation, sensitive and easy to use
4. Automatic winding, flat winding, avoiding wrinkles or damage to printed materials during the winding process.
Automatic winding system
Airpurification system
Back drying
Intelligent touch screen
Step1 Design
Step 2 Print the pattern on film
Step3 Powder shaking&thermal melting
Step 4 Completed printed pattern
Step 5 Heat press transfer onto fabric
Step 6 Final finished product
T SHIRT
HOODIE
POLO
PILLOW
CANVAS BAG
CAP
A: It has an approximately 1.14 m drying tunnel, nine heating tubes, and rear heating to help reduce moisture and oil vapor backflow.
A: Yes. A built-in fume purifier separates oil and fumes to improve the working environment.
A: Its harmonic vibration powdering design helps distribute the powder more evenly.
A: Yes. It supports automatic take-up and uses touchscreen controls for convenient continuous production.
A: The recommended temperature is 18-28°C with 40%-80% humidity. The machine measures approximately 2350 × 1050 × 1150 mm.
