Features
1.Maximum printing width: 1900mm
2.Print head: F1080*1
3.Board system: SUNYUNG/HOSON board
4.RIP system: Maintop
Advantages
1. The main structure of the machine is made of cold-rolled steel, with some components made of aluminum alloy, and high-precision CNC machined aluminum profile beams.
2. Equipped with an independent drying control system.
3. Features printhead anti-collision function.
Benefits
1. Ensures stable performance of the overall frame with a simple and elegant design.
2. Accelerates ink drying and helps reduce smearing or sticking after printing.
3. Effectively protects the printhead, reducing accidental damage and repair costs.

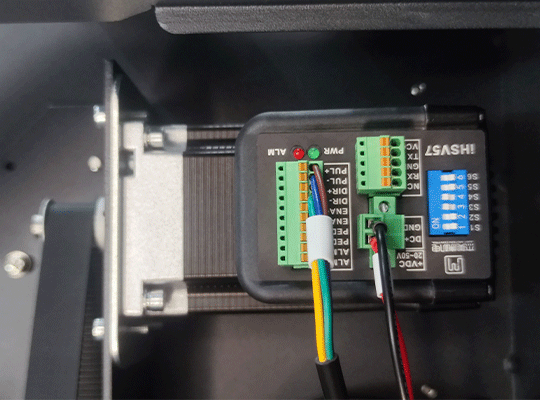

High-power Servo Motor

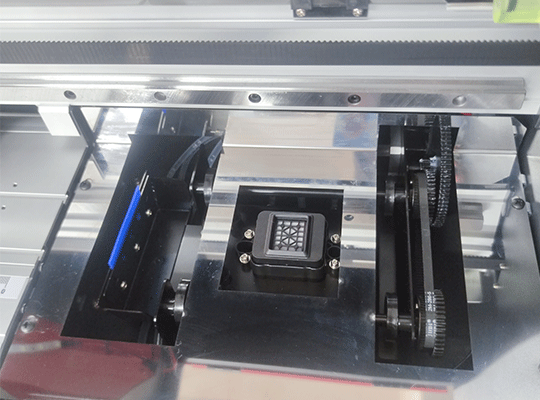

Ink Suction Station

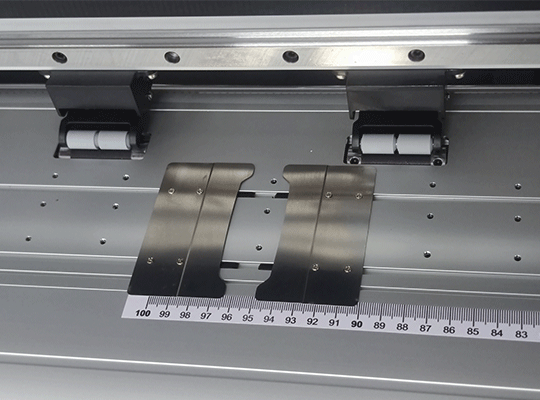

Precision Aluminum Profile

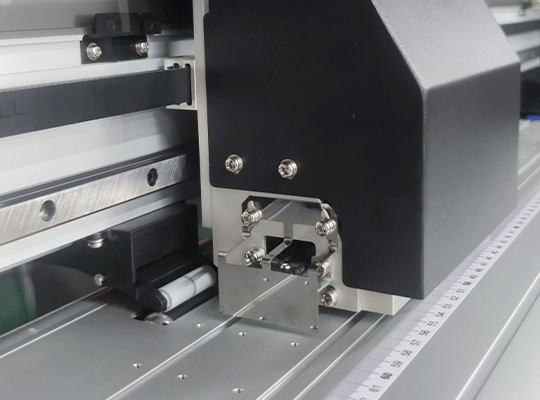

Nozzle Anti Collision

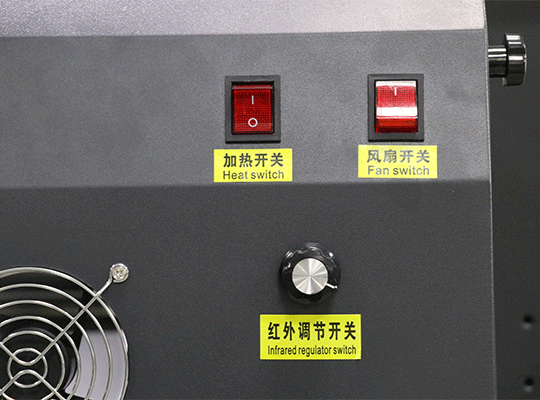

Independent Drying System
| Model | KTM-A39 | ||
| Print Size | 1900mm | ||
| Printhead | F1080 | ||
| Printing Speed |
4PASS: 11㎡/h 6PASS: 7㎡/h 8PASS: 5㎡/h |
||
| Operating Environment | Normal Operating Temperature: 22-28°C Relative Humidity: 40%-60% | ||
| Power | AC220/110±10, 50HZ~60HZ, 2500W | ||
| Weight/Packing size | N.W.: 160 kg / G.W.: 180 kg / 2810*740*1370 mm / 2900*690*630 mm | ||
Adhesive backed PP
Banner cloth
Display stand
Hanging a painting
Outdoor billboards
Poster
A. The KTM-A39 is a 1.9m single-head UV printer for wide-format advertising graphics, posters, banners, light boxes, wall murals and exhibition displays.
A. The catalog specifies a maximum printing width of 1900mm.
A. The KTM-A39 uses one F1080 printhead according to the catalog specification.
A. The catalog lists a SUNYUNG/HOSON board option and Maintop RIP system. The final board configuration should be confirmed in the quotation.
A. The cold-rolled steel structure, CNC machined aluminum profile beam, independent drying control system and printhead anti-collision function support stable operation and help reduce printhead damage.
A. The catalog lists AC220/110±10, 50HZ~60HZ, 2500W, with N.W. 160 kg, G.W. 180 kg, machine size 2810*740*1370 mm and packing size 2900*690*630 mm.
