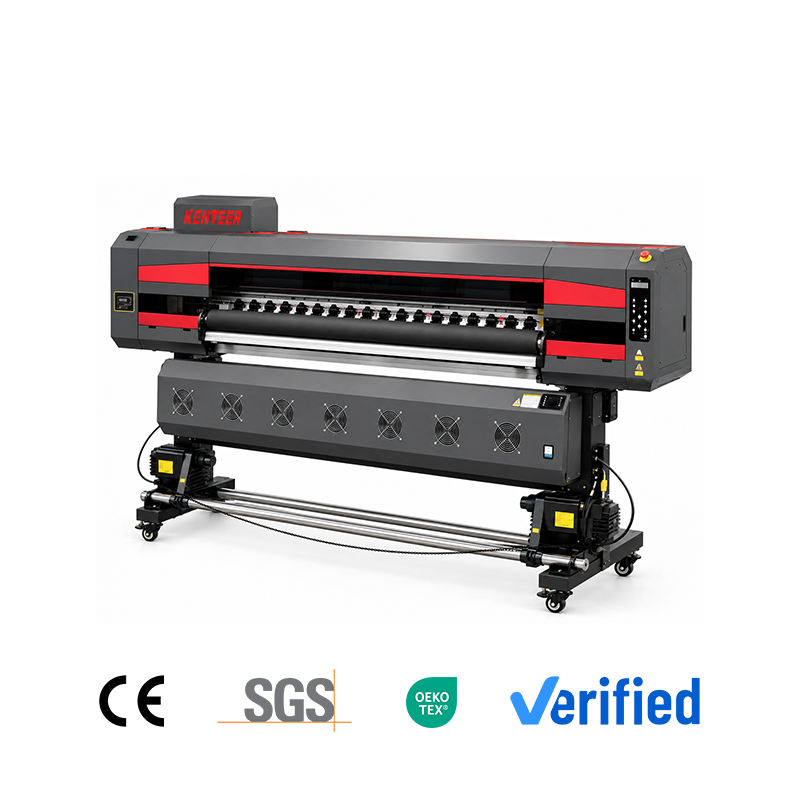

1850mm 4-Head Sublimation Printer with I3200 Heads and HOSON Board
Features
1.Maximum printing width: 1850mm.
2.Print head: I3200*4.
3.Board system: HOSON board.
Advantages
1. High-precision CNC-machined aluminum alloy beam.
2. Equipped with a heavy-duty air shaft tension system, providing strong load-bearing capacity and precise, stable tension control.
3. Equipped with a carriage anti-collision function.
4. Equipped with ink shortage alarm and paper shortage sensor functions.
Benefits
1. Ensure the overall performance of the frame is stable, and the printing process is smooth and does not shake.
2. Ensure even winding and uniform unwinding of the printing roll, improving the quality of the printed product and production efficiency.
3. Protects the printhead from accidental damage.
4. Provide timely alerts to avoid invalid printing and reduce material waste.

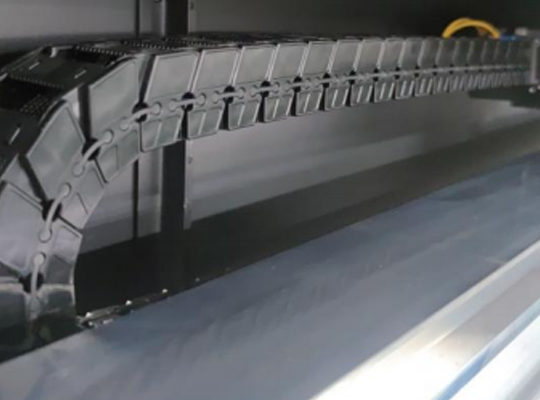

Imported Low-noise Cable Carrier

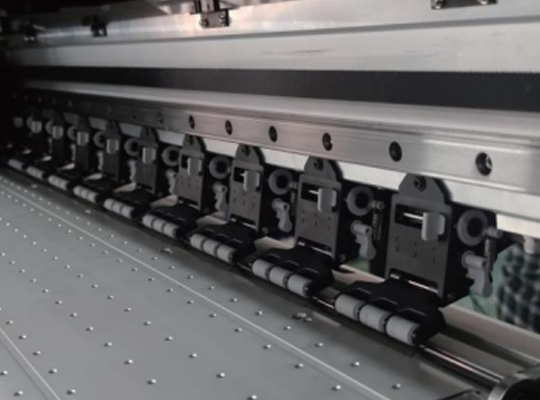

High-precision Aluminum Profile

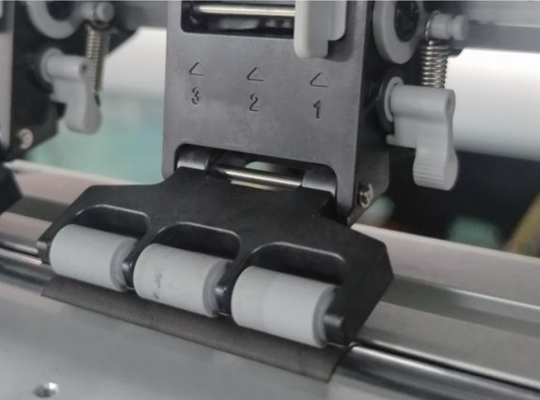

Three-stage Adjustable Pressure Roller

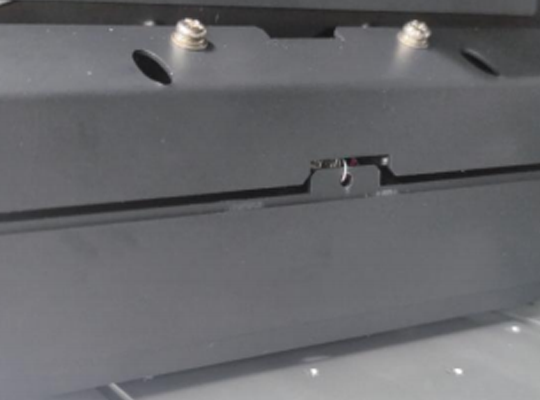

Printhead Anti-collision Sensing
| Printhead | I3200 (4head) |
| Print Size | 1850mm |
| Mainboard | Hoson / LAN |
| Printing Speed | 2pass: 115㎡/h 4pass: 60㎡/h 6pass: 45㎡/h |
| Operating Environment | Normal operating temperature: 22-28°C; Humidity: 40%-60% |
| Power | AC 220/110+10, 50HZ~60HZ, power supply: 7500W |
| Weight / Packing Size | N.W.: 470kg / G.W.: 520kg 3200*1200*1710mm / 3240*700*760mm (Machine Body) 3020*1230*1140mm (Machine Base) |
Design Pattern & Software Typesetting

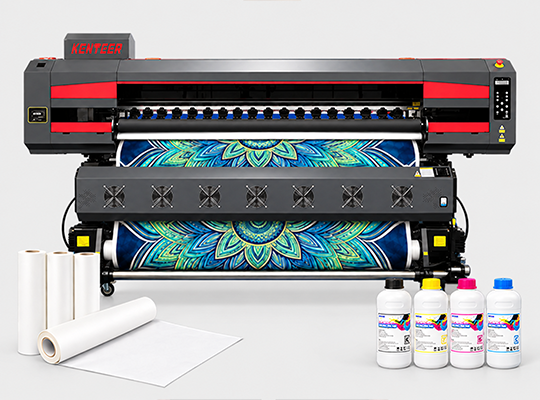

Printing With Ink and Sublimation Paper

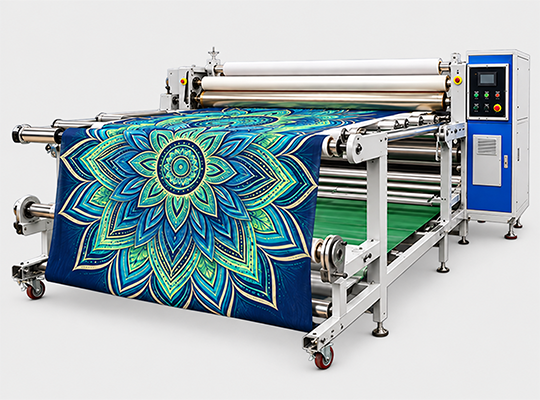

Heat Transfer On The Polyester Fabric
Finished Products
Tote Bags
Tablecloths
Throw Pillows
Dresses
Scarves
T-Shirts
A. The KTM-A24K is a 1.8m wide-format 4-head sublimation printer for polyester textile and promotional product printing, such as t-shirts, dresses, bags, tablecloths, pillows and scarves.
A. The catalog specifies a maximum printing width of 1850mm.
A. The catalog lists an I3200 (4head) printhead configuration.
A. The catalog lists a HOSON board (Hoson / LAN), with printing speeds of 115㎡/h at 2pass, 60㎡/h at 4pass and 45㎡/h at 6pass.
A. The catalog lists a normal operating temperature of 22-28°C with 40%-60% humidity, and an AC 220/110+10, 50HZ~60HZ power supply of 7500W.
A. The catalog lists N.W. 470kg / G.W. 520kg, machine body packing size 3200*1200*1710mm / 3240*700*760mm and machine base 3020*1230*1140mm.
