Features
1.Maximum printing width: 1900mm
2.Print head: F1080*1
3.Board system: SUNYUNG board
4.RIP system: Maintop
Advantages
1. The main structure of the machine is made of cold-rolled steel, with some components made of aluminum alloy, and high-precision CNC machined aluminum profile beams.
2. Equipped with an independent drying control system.
3. Features printhead anti-collision function.
Benefits
1. Ensures stable performance of the overall frame with a simple and elegant design.
2. Accelerates ink drying and helps reduce smearing or sticking after printing.
3. Effectively protects the printhead, reducing accidental damage and repair costs.
High-power servo motor

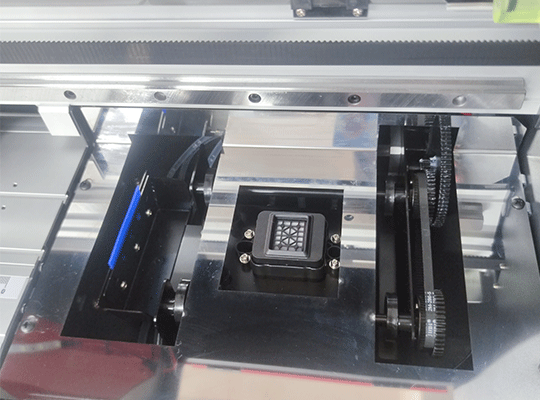

Ink Suction Station

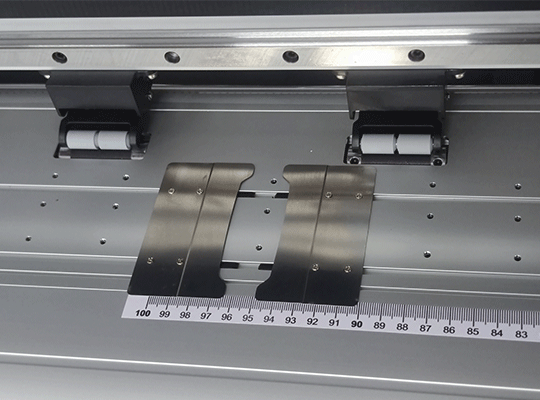

Precision Aluminum Profile

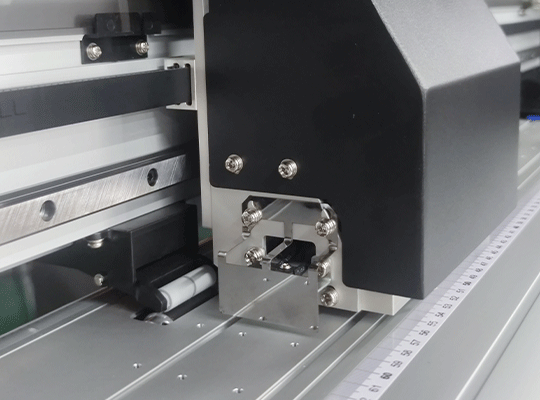

Nozzle Anti Collision

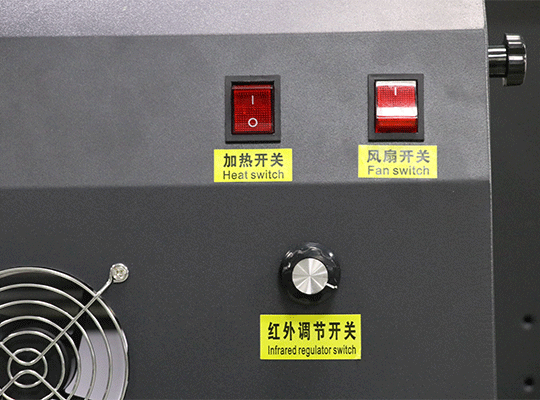

Independent Drying
| Model | KTM-19011N | |||
| Print Size | 1900mm | |||
| Printhead | I3200 | I1600 | XP600 | |
| Speed | 4PASS | 23㎡/h | 14㎡/h | 11㎡/h |
| 6PASS | 16㎡/h | 8㎡/h | 7㎡/h | |
| 8PASS | 10㎡/h | 6㎡/h | 5㎡/h | |
| Operating Environment | Normal Operating Temperature: 22-28°C Relative Humidity: 40%-60% | |||
| Power | AC220/110±10, 50HZ~60HZ, 2500W | |||
| Weight/Packing size | N.W.: 160kg / G.W.: 180kg / 2810*740*1370 mm / 2900*690*630 mm | |||
Outdoor billboards
Storefront window graphics
Vehicle wraps
Indoor backlit displays
Exhibition backdrop walls
Shopping mall floor graphics

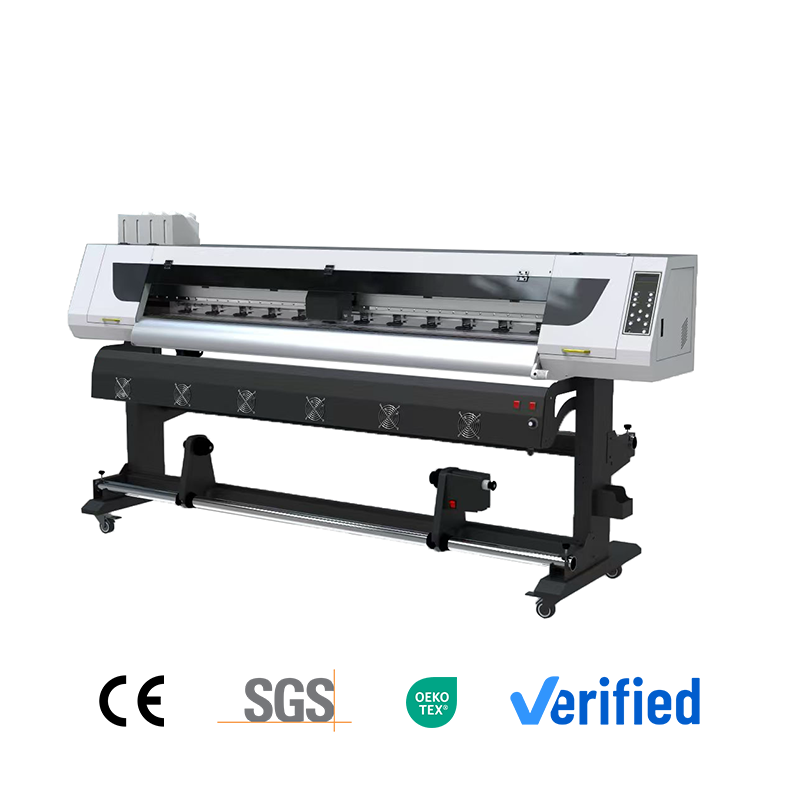

A. The KTM-19011N is a 1.9m wide-format eco-solvent printer designed for signage, advertising graphics, window graphics, vehicle wraps, backlit displays and similar wide-format printing applications.
A. The catalog specifies a maximum print size of 1900mm, making it suitable for 1.9m wide-format production jobs.
A. The catalog lists a SUNYUNG board system and Maintop RIP system for this model.
A. The catalog lists speed references by printhead option: for I3200, 23㎡/h at 4PASS, 16㎡/h at 6PASS and 10㎡/h at 8PASS; for I1600, 14㎡/h, 8㎡/h and 6㎡/h; for XP600, 11㎡/h, 7㎡/h and 5㎡/h.
A. The machine uses a cold-rolled steel structure, aluminum alloy components and high-precision CNC machined aluminum profile beams. These features help support stable frame performance.
A. The independent drying control system helps accelerate ink drying and reduce smearing or sticking after printing, while the printhead anti-collision function helps reduce accidental printhead damage and repair costs.
