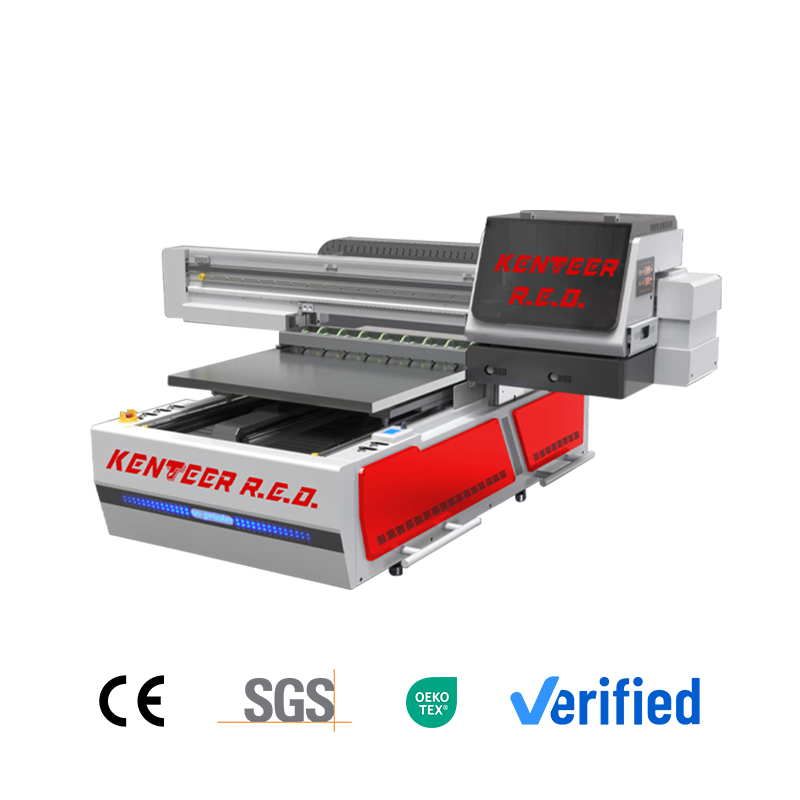

6090 UV flatbed printer with five printhead options (XP600 / I1600U / I3200U / Ricoh G5 / I1600+HD), 0-150mm printing height, Hoson board and optional vision positioning for rigid-substrate customization.
Features
1. Print size: 600x900mm
2. Print height: 0-150mm
3. Print head: XP600x3 / I1600Ux3 / I3200Ux3 / Ricoh G5x3 / I1600x2+I3200HDx1
4. Main board: Hoson board
Advantages
1. Aerospace-grade aluminum crossbeam for high precision and deformation resistance.
2. Honeycomb alloy adsorption platform improves printing accuracy.
3. Intelligent dual-channel negative-pressure ink supply with 10L capacity for stable ink flow.
4. Real-time ink level monitoring with shortage alarm; dual power supply protection.
Benefits
1. Dual independent UV lamps adjust white/color/varnish power for optimal print quality.
2. Three-layer filtration and auto temperature-controlled ink system prevent clogging.
3. Smooth color transitions with high fidelity and high saturation.

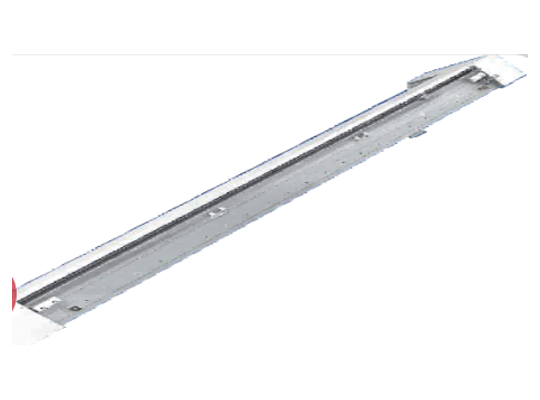

Aerospace-grade aluminum crossbeam

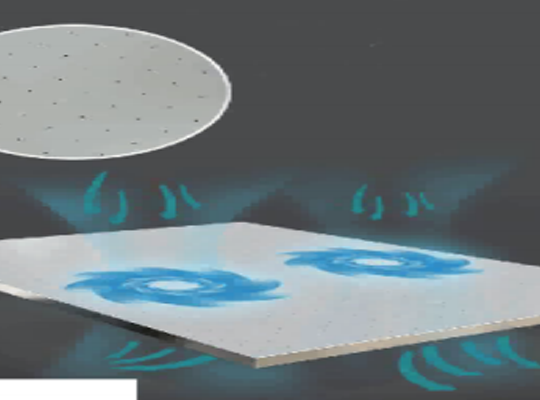

Honeycomb alloy adsorption platform

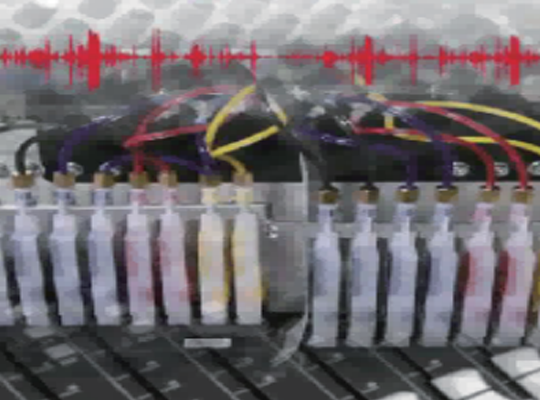

Dual-channel negative pressure ink supply
Ink level monitoring system
| Model | KTM-A91 |
| Product Name | 6090 UV Flatbed Printer |
| Print Head | XP600x3 (KTM-A91-1) / I1600Ux3 (KTM-A91-2) / I3200Ux3 (KTM-A91-3) / Ricoh G5x3 (KTM-A91-4) / I1600x2+I3200HDx1 (KTM-A91-5) |
| Main Board | Hoson board |
| Print Size | 600x900mm |
| Print Color | CMYK+W+V |
| Print Height | 0-150mm |
| Print Quality | Resolution 720/1440/2880/5760 dpi |
| Lifting Function | Head lifting |
| File Formats | Tif, bmp, jpg, eps, pdf, etc. |
| Positioning System | Vision positioning system (optional) |
| Output Software | RIIN RIP software |
| Ink Anti-freeze | Heating system (optional) |
| Printhead Clogging Prevention | Original cartridge system and automatic stirring |
| Printhead Protection | Automatic collision detection |
| Printhead Maintenance | Automatic cleaning / manual cleaning |
| Printing Mode | Unidirectional / bidirectional |
| Power | AC220/110V, 50Hz-60Hz |
| Working Environment | Temperature 15-35℃, humidity 20-30% |
| Size (L*W*H) | 1.37x1.7x0.76m |
| Weight | 190kg |
Bottle
Notebook
Tins
Pens
Cosmetic tube
Tumbler
A. The KTM-A91 offers five printhead configurations: XP600x3, I1600Ux3, I3200Ux3, Ricoh G5x3, and I1600x2+I3200HDx1, matched with Hoson board control and LED UV curing.
A. The catalog specifies a 600x900mm print area and a 0-150mm printing height, suitable for many medium-format rigid-substrate products.
A. The machine includes an aerospace-grade aluminum crossbeam, honeycomb adsorption platform, intelligent dual-channel negative-pressure ink supply, real-time ink level monitoring, automatic stirring and automatic collision detection.
A. Yes. It features dual independent UV lamps, a three-layer filtration system, optional vision positioning, and an optional outer cover (KTM-A91-C) for expanded production needs.
