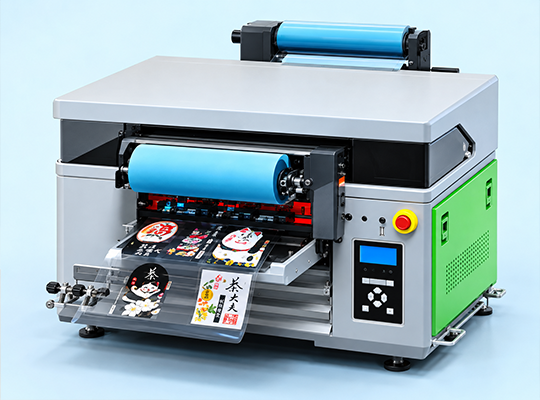

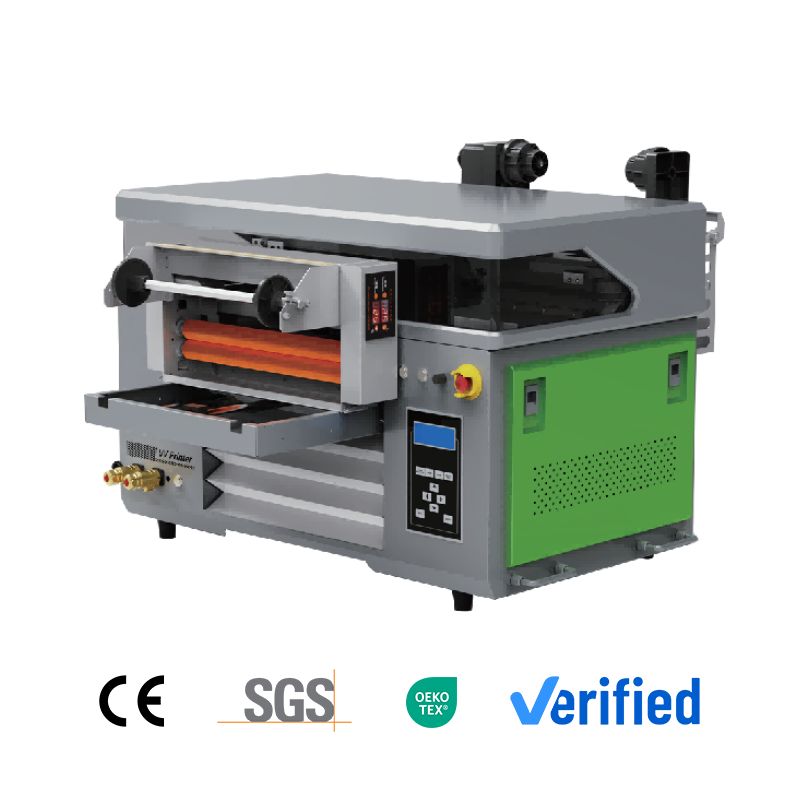

KTM-A90-1 40x60cm Flatbed & Roll UV Printer

40x60cm flat and roll UV printer with dual XP600 printheads, 0-150mm print height, LED UV curing and cylinder printing support.

Brand:

KENTEER

Spu:

KTM-A90-1

Features

1. Print width: 38cm
2. Print height: 150mm
3. Print head: XP600*2
4. Main board: Hoson board
Advantages

1. Alloy suction platform: strong load-bearing capacity, no deformation and excellent leveling.

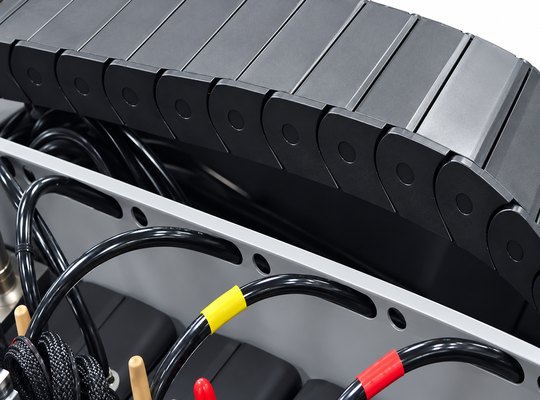

2. Cable chain system: durable and wear-resistant, with a long service life.

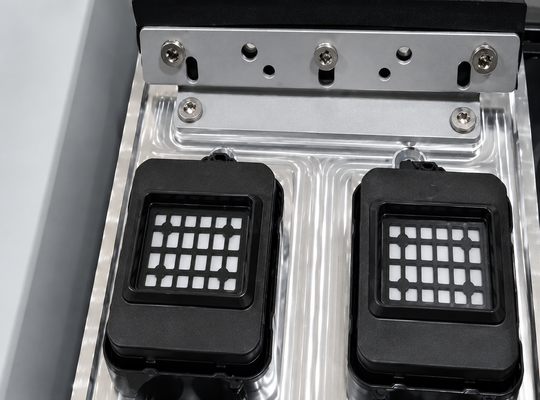

3. Dual printhead configuration delivers detailed, rich colors.

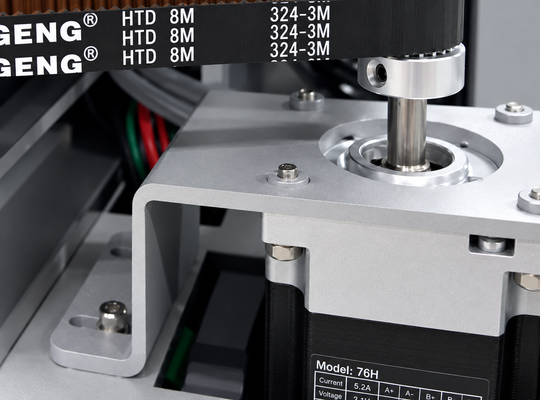

4. Powertrain: smooth transmission and a smooth printing process.

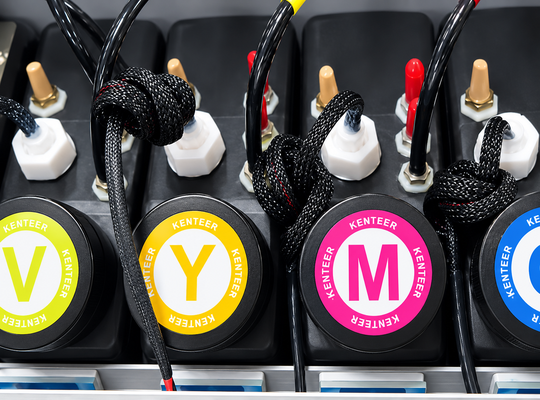

5. Large-capacity ink bottle with low-ink alarm and real-time ink level monitoring.
Benefits

1. Automated collection, tearing and lamination saves time and effort.
2. High printing precision, down to 0.2mm fineness.
3. Smooth color transitions, high fidelity and high saturation.

Model	KTM-A90-1
Product Name	40x60cm Flatbed & Roll UV Printer
Print Head	XP600*2
Main Board	Hoson board
Print Size	40*60cm / roll length
Print Height	0-150mm
Special Effects	Relief / varnish
Output Color	CMYK+W+V
Curing System	LED UV curing
Print Quality	Resolution 720/1280/2880/5760 dpi
Printhead Anti-clogging	Flash spray anti-clogging, automatic stirring
Ink Supply System	Automatic ink supply
Ink Level Monitoring	Ink shortage alarm
Printhead Cleaning	Automatic cleaning / manual cleaning
Transmission Method	XY-axis guide rail + motor
Printing Mode	Unidirectional / bidirectional
Printing Platform	High load-bearing suction platform
Power	AC220/110V 50-60Hz
File Formats	Jpg, png, psd, eps, pdf, etc.
Operating System	Win7/8/10
Data Transmission	High-speed USB or Gigabit Ethernet port
Working Environment	Temperature 15-35℃, humidity 20-30%
Size (LWH)	1018558cm
Weight	About 85kg
Cylinder	Supports printing

What is the KTM-A90-1 designed for?

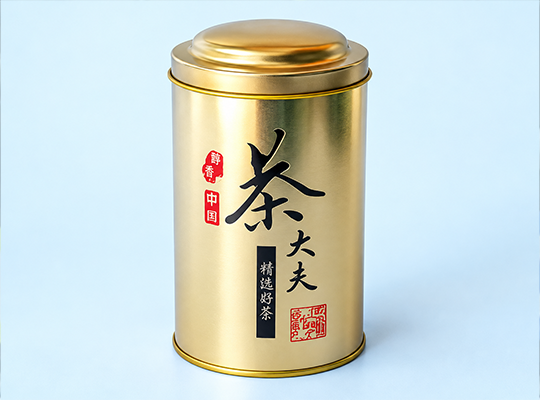

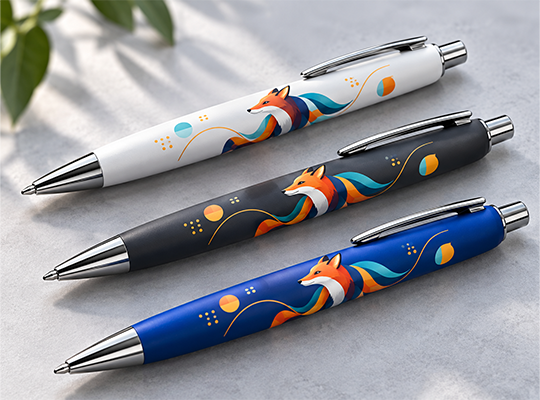

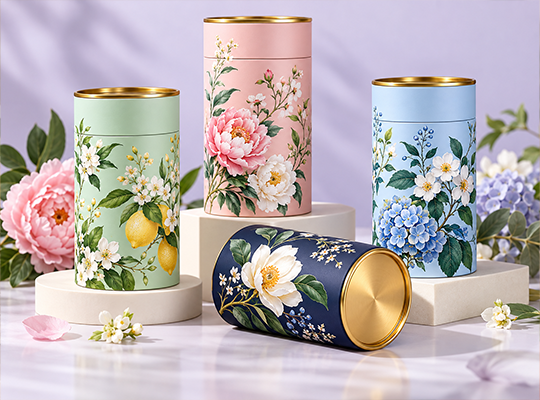

A. The KTM-A90-1 is a 4060 UV flatbed printing solution that works as both a flat and roll UV printer, printing on rigid boards, roll media and cylindrical products such as cans, bottles, cups and pens.
Which printhead and control system does the KTM-A90-1 use?

A. It uses dual XP600 printheads with Hoson board control, CMYK+W+V output and LED UV curing.
What print size and height does the KTM-A90-1 support?

A. The catalog specifies a 40*60cm print size (38cm print width) with roll printing support, and a print height of 0-150mm.
Which functions keep printing stable?

A. Flash spray anti-clogging with automatic stirring, automatic ink supply, low-ink alarm with real-time ink level monitoring, automatic/manual printhead cleaning, plus a durable cable chain system and smooth powertrain.
Does the KTM-A90-1 support cylinder printing and special effects?

A. Yes. The catalog lists cylinder printing support and relief/varnish special effects.
How precise is the printing?

A. Printing precision is down to 0.2mm fineness, with resolution options of 720/1280/2880/5760 dpi and smooth, high-saturation color transitions.
