A3 UV flatbed printer with XP600 printhead, 0-90mm printing height, automatic lifting platform, white ink stirring, low ink alarm and optional CCD visual positioning.
Features
1. Print size: A3
2. Print height: 90mm
3. Print head: XP600*1
4. Main board: Hoson board
Advantages
1. Equipped with an intelligent automatic lifting platform.
2. Equipped with CCD vision positioning and automatic height measurement functions.
3. Equipped with white ink stirring and low ink alarm functions.
4. Compact A3 flatbed structure for rigid-material customization.
Benefits
1. Keep the printhead moist to prevent clogging.
2. Ensure more accurate printing by avoiding invalid prints and print collisions.
3. Prevent white ink buildup that clogs the printhead; monitor printer ink levels to avoid invalid prints.
4. Suitable for short-run personalized printing on gifts and hard surfaces.

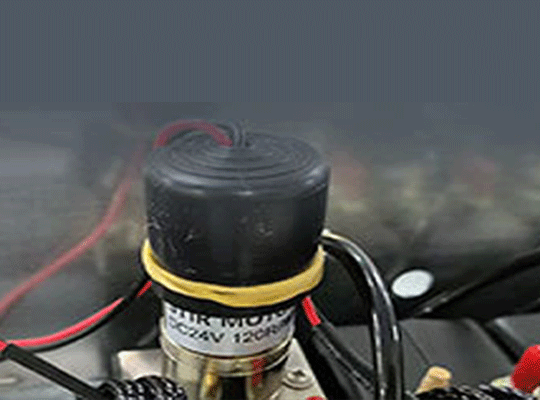

White ink stirring

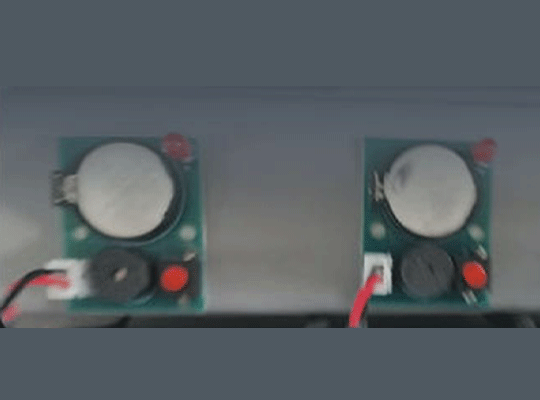

Low ink alarm

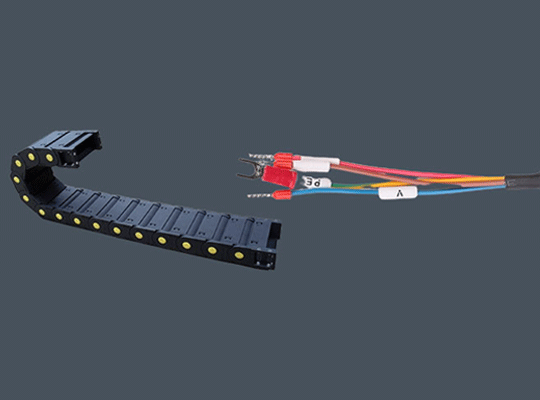

Cable chain system

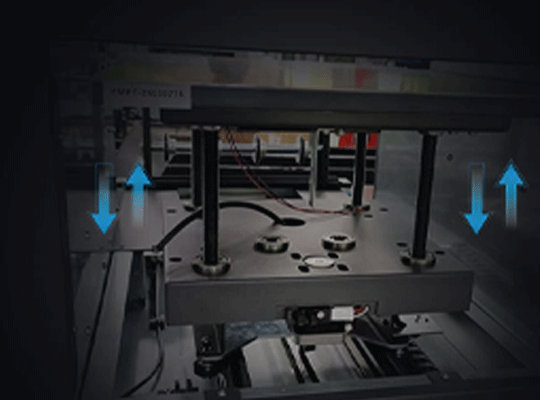

Automatic lifting platform

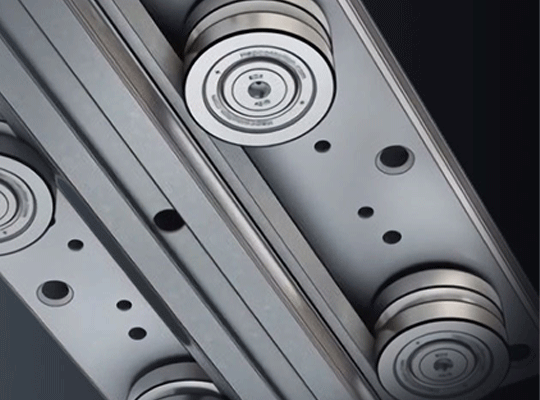

Transmission roller guide

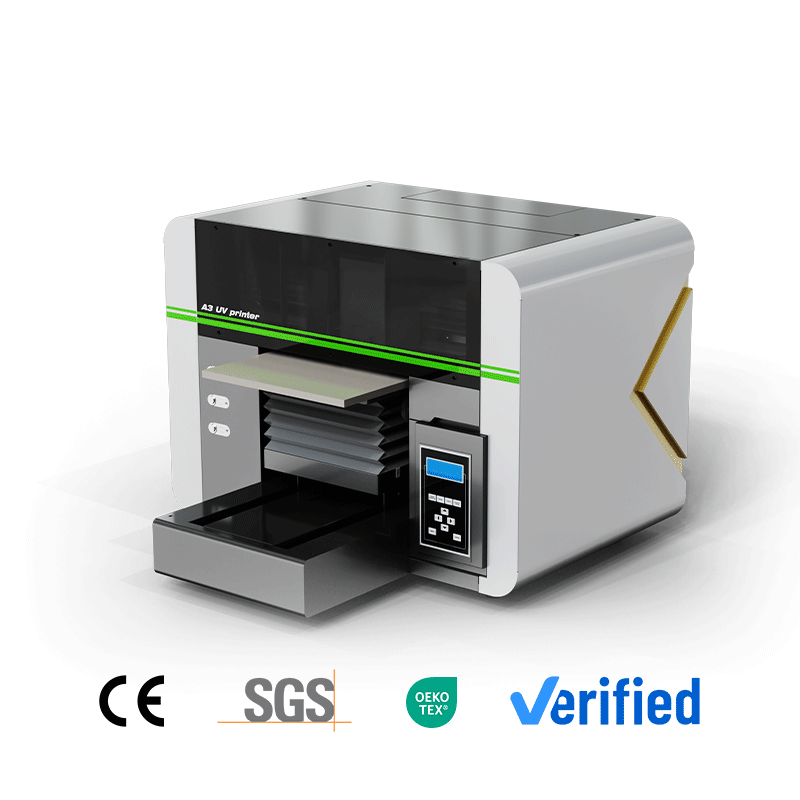

A3 UV flatbed printer
| Model | KTM-A73 |
| Product Name | A3 UV Flatbed Printer |
| Print Head | XP600*1 |
| Main Board | Hoson board |
| Print Size | A3 |
| Printing Height | 0-90mm |
| Output Color | CMYK+W / CMYK+W+V (different prices) |
| Print Quality | Resolution 720/1440/2880/5760 dpi |
| Lifting Function | Platform lifting |
| Inkjet Technology | Intelligent droplet changing |
| Spray Head Heating | Supported |
| Positioning System | Visual positioning (purchased separately) |
| Print Head Maintenance | Automatic cleaning |
| Printhead Anti-clogging | Original ink cartridge system; automatic stirring |
| Printing Mode | Unidirectional / bidirectional |
| Printing Platform | Suction platform |
| Ink Supply System | Automatic ink supply |
| Ink Level Monitoring | Ink shortage alarm |
| Ink Path System | Lifting ink stack / open mold ink cartridge |
| Height Measurement | Automatic height limit |
| Curing System | LED UV curing, etc. |
| Power | AC220/110V 50HZ-60HZ |
| File Formats | Tif, bmp, pdf, eps, jpg, etc. |
| Special Effect | Relief |
| Operating System | Win7/8/10, etc. |
| Interface Method | Gigabit fiber optic |
| Working Environment | Temperature 15-35°C, humidity 20-30% |
| Size (L*W*H) | 73*75.5*55.2cm |
| Gross Weight | 110kg |
| Cylindrical Fixture | Optional |
| Cylinder | Supports printing |
Wood
Plate
Phone case
Glass
Gift box
Cup
A. The KTM-A73 uses one XP600 printhead, matched with Hoson board control and LED UV curing for A3 flatbed production.
A. The catalog specifies A3 print size and a 0-90mm printing height, suitable for many small-format hard-surface products.
A. The machine includes platform lifting, automatic height limit, automatic ink supply, white ink stirring, ink shortage alarm and automatic printhead cleaning.
A. Yes. The catalog lists relief effect printing and an optional cylindrical fixture, with cylinder printing supported when the suitable fixture is configured.
